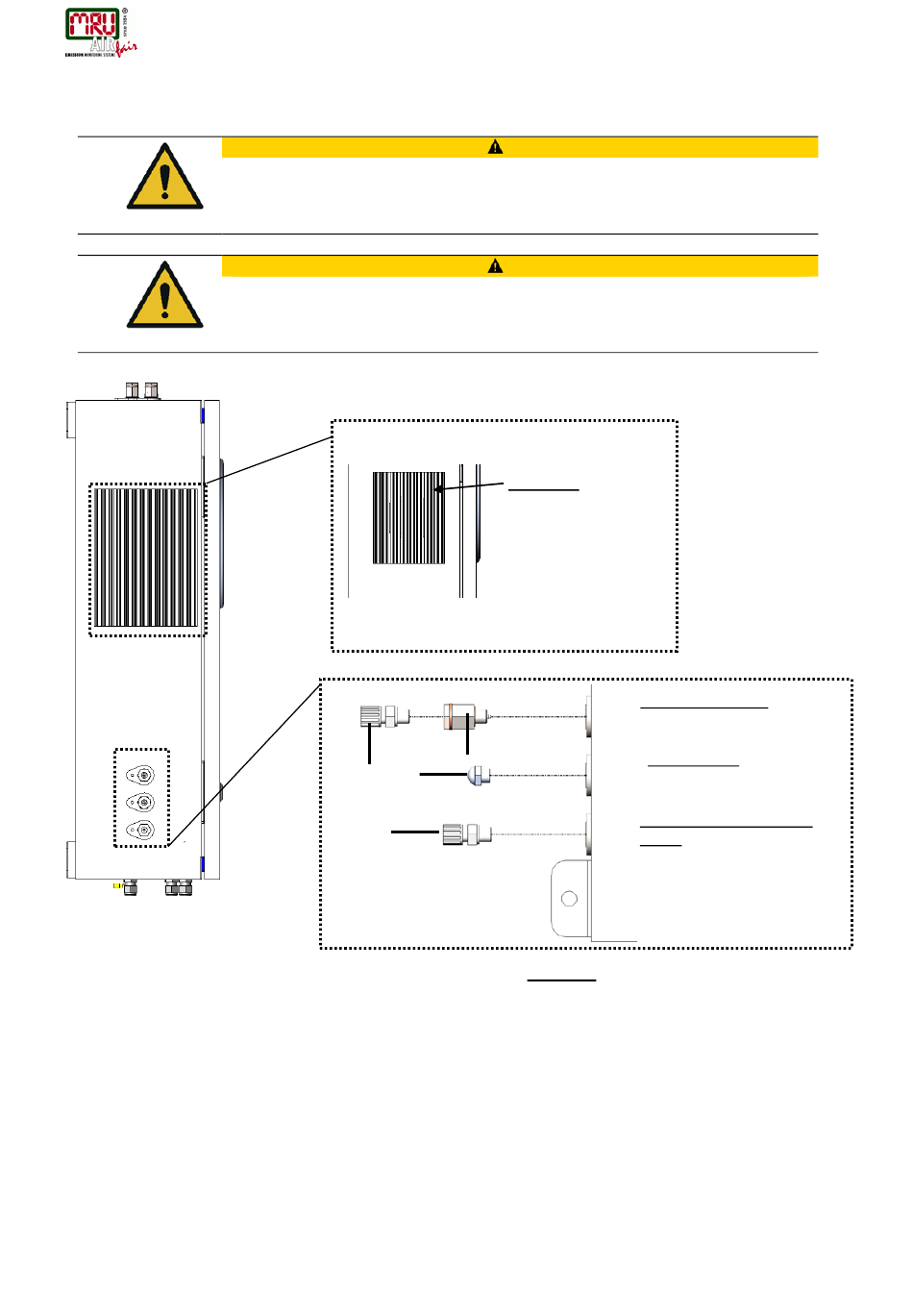

Left-side
MRU GmbH, D-74172 Neckarsulm
Be sure, that the heat sink has enough distance to the next wall.
Be sure that the Zero gas inlet feeds fresh, clean air.
1
3
1
SWG100BIO Ex. User Manual
CAUTION
CAUTION
Heat sink:
Do not cover the heat
sink from the gas
cooling- unit.
2
Reference:
1. Fitting for PTFE tubing 4/6 mm G1/8" thread
2. Flow restrictor orifice G1/8" thread.
3. Zero gas filter G1/8" thread
Calibration gas inlet
Fitting: 1/8 in. ISO parallel thread.
Zero gas inlet:
Fitting: 1/8 in. ISO parallel thread.
Condensate outlet (Option:
65408)
Fitting: 1/8 in. ISO parallel thread.
39 / 108
