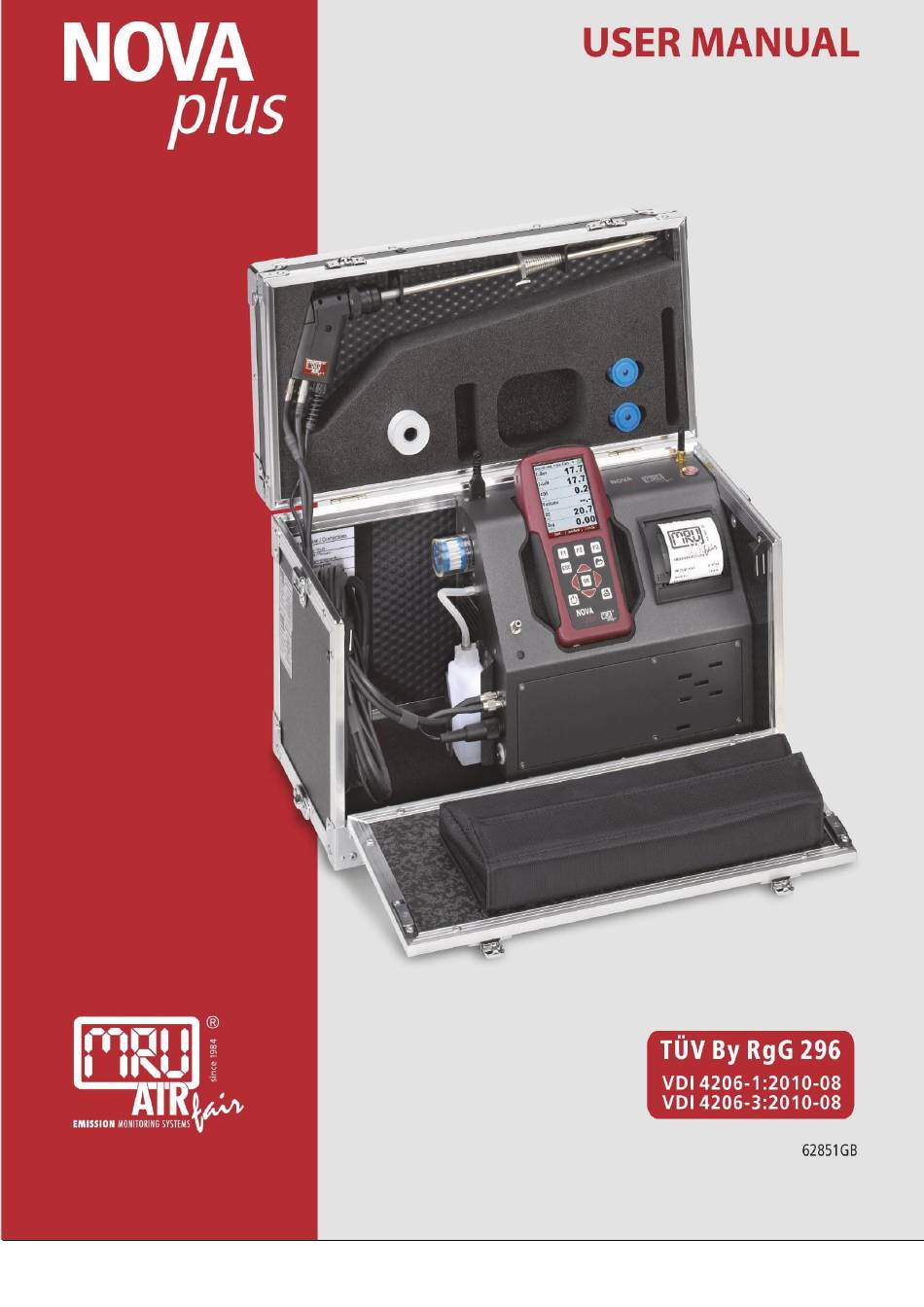

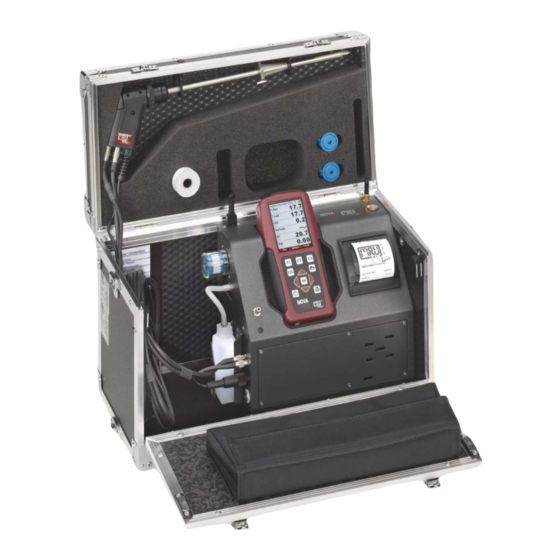

- Page 1 USER MANUAL NOVAplus 1 / 95 MRU GmbH, D-74172 Neckarsulm...
- Page 2 USER MANUAL NOVAplus Producer: Legal notices / Intellectual property rights comments Original user manual © 2020 by MRU No part of this manual my be published in any form (print, fotocopy, electronic media or any other publication form) without a written approval by the publisher.
-
Page 3: Table Of Contents
USER MANUAL NOVAplus Table of content Information for product and safety ..........7 1.1. Safety manual ....................7 1.2. Safety precautions ..................7 1.3. Ensure safety ....................8 1.4. Important general information EN 50379 and VDI 4206 ....9 1.5. - Page 4 USER MANUAL NOVAplus Adding fuels to Fuel type selection ............. 35 Setting 0 reference ................... 36 5.11. Defining user fuels type ................36 5.12. Defining measurement window ............37 5.13. Configuring zoom window ..............38 5.14. Changing measurement program names .......... 39 Preparing measurement ..............
- Page 5 USER MANUAL NOVAplus Data Storage ................... 58 8.1. Organizing data storage ................58 8.2. Calling up information about data storage ........58 8.3. Site administration ..................59 Create new site ....................59 View sites ....................... 60 Searching site ...................... 60 Changing sites .....................
- Page 6 USER MANUAL NOVAplus 11.2. Calculated values ..................84 Data communication ..................86 11.3. Analysis and calculations ................. 87 11.4. Fuel type list ....................88 11.5. Fuel type list ....................88 11.6. Text input ....................... 89 11.7. Asking user for decision ................89 11.8.
-
Page 7: Information For Product And Safety
USER MANUAL NOVAplus Information for product and safety 1.1. Safety manual All general information and safety precautions of MRU products are listed in the supplied separate safety manual. Therefore, this manual must be read and observed before the first use of the instrument . -
Page 8: Ensure Safety
Especially concentration levels as high as several % for single gas components may affect the measurement of other gas components at ppm level. Those applications need to be discussed with MRU in detail 8 / 95... -
Page 9: Important General Information En 50379 And Vdi 4206
USER MANUAL NOVAplus 1.4. Important general information EN 50379 and VDI 4206 This analyzer is not designed to be used for continuous measurements. Before using the analyzer verify the condition of the various parts of the analyzer, such as the probe, the ambient air conditions, the condensate separator, star filter and the connectors for damage and/or blockages. -
Page 10: Introduction
USER MANUAL NOVAplus 2 Introduction • This manual enables you to understand and safely operate this MRU Analyzer. • Please read this manual with great vigilant and get familiar with the product before using it. • This analyzer may only be operated by competent personnel and for its intended use. - Page 11 The analyzer must be used according to instructions for the intended use. Our analyzers are checked according to the following regulations: VDE 0411 (EN61010) and DIN VDE 0701 before they leave the MRU GmbH factory. MRU technical products are designed and manufactured according to DIN 31000/ VDE 1000 and UVV = VBG 4 of the professional guilds for fine mechanics and electrical engineering.
-
Page 12: About Us
USER MANUAL NOVAplus 2.2. About us The analyzer is produced by the MRU GmbH in Neckarsulm, Germany (Founded in 1984), a medium sized company that specializes in devel- oping, producing and marketing high quality emission monitoring analyzers. MRU GmbH produces a wide range of instruments, from standard analyzers up to tailor made industrial analyzers. -
Page 13: Packaging
Hazardous waste must be returned to MRU prepaid. 2.5. Return of electronic equipment MRU GmbH is required to accept the return, for proper disposal, of all analyzers delivered after 13th of August 2005. Analyzers must be re- turned to MRU prepaid. -
Page 14: Description
USER MANUAL NOVAplus 3 Description The main task of the analyzer is in supporting the following applications: recise control- and adjustment measurements for Gas-, oil or wood • fired burners • Flue gas measurement according to 1. BImSchV and KÜO The CO sensor is protected with the automatic purging pump. -
Page 15: Measurement Principle
USER MANUAL NOVAplus 3.1. Measurement principle In The analyzer draws a sample of the flue gases from the duct using a built-in gas pump through the probe is cleaned and dried using con- densate separator with built-in filter and analyzes the extracted gas with electrochemical sensors. -
Page 16: Gas Flow Diagram With Gas Cooler
USER MANUAL NOVAplus Gas flow diagram with gas cooler Position Description Position Description Gas temperature Gas pump Gas inlet Filter Differential pressure - Nozzle Differential pressure Capillary tube Draft Flow sensor Fresh air inlet NDIR bench Gas outlet O2 sensor... -
Page 17: Remote Control Unit (Rcu)
Remote control unit (RCU) Position Description Position Description Keypad Display Cover SD-card reader (only by using a MRU- SD-CARD we can assure the compatibility of all analyzer functions) USB port Eyes for shoulder strap Analyzer feet Fixing magnets Contactless battery charg-... -
Page 18: Base Unit Condensate Separator
USER MANUAL NOVAplus Base unit condensate separator • CAUTION Condensate is acidic The condensate from the container can be slight acidic and can cause chemical burn. Immediately clean with plenty of water once you have encountered acid Disconnect the hoses at the gas entrance port (3) and the gas exit port (1). -
Page 19: Base Unit With Condensate Separator
USER MANUAL NOVAplus Base unit with condensate separator Position Description Position Description Aerial Condensate separator ON-/OFF key button LED condensate sepa- rator Built-in speed printer Star filter Gas outlet Gas inlet after con- densate separator Connector T-gas Connector T-Ambient air (combustion air) -
Page 20: Connectors Depending On The Options (Condensate Separator)
USER MANUAL NOVAplus Connectors depending on the options (condensate separator) Connector Models 1 pressure sensor draft / pressure standard inlet pres- sure - TRGI draft / pressure TRGI Option pipe tests inlet pres- according TRGI sure - 2 pressure sen-... -
Page 21: Base Unit With Gas Cooler (Option)
USER MANUAL NOVAplus Base unit with gas cooler (option) Position Description Position Description Aerial LED condensate container ON-/OFF key button Fan gas cooler Built-in speed printer Outlet for condensate Gas outlet Star filter Connector T-gas Connector T-Ambient air (combustion air) -
Page 22: Connectors Depending On The Options (Gas Cooler)
USER MANUAL NOVAplus Connectors depending on the options (gas cooler) Connector Models 1 pressure sen- draft / gas inlet pressure + sor standard pressure - TRGI draft / gas inlet TRGI pressure + Option pipe pressure - tests according TRGI... -
Page 23: Gas Sampling Probes
USER MANUAL NOVAplus Gas sampling probes The Analyzer is available with different probes, both with fixed and ex- changeable probe tubes. A complete list of available probes can be found in the current price list of this analyzer. Below are two different probe types:... -
Page 24: Operating
USER MANUAL NOVAplus 4 Operating 4.1. Display All information required to operate the analyzer is displayed as shown below. Menu bar Function key bar Display panel Menu Measurement value, Zeroing active SD-Card in the slot Indication green Read- and write access... -
Page 25: Keypad
USER MANUAL NOVAplus 4.2. Keypad Description and function of the keys: ON / OFF By pressing the ON/OFF button the RCU will start up without delay. By pressing the ON/OFF button the base unit and the RCU (if RCU is placed in the charging doc) will start up. -
Page 26: Connection Remote Control Unit (Rcu) To Base Unit
USER MANUAL NOVAplus 4.3. Connection Remote control unit (RCU) to base unit Declaration of symbols Symbol Description No Bluetooth connection base unit to RCU Base unit is in the update mode (Press ON-key at the base unit for changing to the measurement... - Page 27 ► Press F1, to connect to the base unit with the RCU. NOTE The name consists of NOVAplus and the serial number of the base unit. MAC Adr.: display the Bluetooth address. Search: All switched ON base units in the near environment will be dis- played.
-
Page 28: Reset And Blink Codes
USER MANUAL NOVAplus 4.4. Reset and Blink codes Reset of the RCU press ESC and ON/OFF- but- ton at the same time for a couple of seconds Reset of the base unit press ON/OFF- button for about ten seconds (LED... - Page 29 USER MANUAL NOVAplus NOVAplus The topic „Flue gas The menu Storage is ex- The menu Extra is ex- measurement“ is a plained in chapter 8 plained in Chapter 9Ex- standard feature in Data Storage, Page 58. tras / Adjustments, Page...
-
Page 30: First Usage
USER MANUAL NOVAplus 5 First usage After the analyzer has been inspected and is ready for start-up it can be switched on and personalized settings can be entered. These settings can be changed at any time. 5.1. Preparatory steps ► Unpack the analyzer. -
Page 31: Measurement Settings
Probe heating as needed / with Probe heating is always switched on with mains, if the mains NOVAplus is connected to mains and is switched ON. Temperature unit °C or °F Change the unit for temperature in all screens Pressure unit hPa/PA, hPa, kPa/Pa, Change the unit for pressure in all screens. -
Page 32: Switch-On Protection
USER MANUAL NOVAplus 5.4. Switch-On protection If activated and if ON key is pressed (possibly inadvertently), then the message: „3 seconds OK key press “displays. 5.5. Print-out settings The printout can be set in the Extra menu under the menu item analyzer settings. -
Page 33: Bluetooth Settings
USER MANUAL NOVAplus 5.6. Bluetooth settings If RemoteData, OnlineView or MRUConnect (PDA) with Bluetooth is used, the SLAVE move mode must be selected. The auto connect mode must be switched OUT. 5.7. Setting date and time ► Go to the Extras menu. -
Page 34: Configuring Measurement Programs
USER MANUAL NOVAplus 5.8. Configuring Measurement Programs (Flue gas measurements) Select one of the 6 configurable measurement programs. For each of the programs the following parameters can be configured: • CO ppm limit: adjustable value for the CO sensor protection. If the... -
Page 35: Select Fuel Types And 02 Reference
USER MANUAL NOVAplus 5.10. Select fuel types and 02 reference Whenever a measuring program for flue gas measurements is called, a fuel can be selected from a list. Which fuel is available can be selected from a maximum fuel type list. -
Page 36: Setting 0 2 Reference
USER MANUAL NOVAplus Setting 0 reference ► Go to the Menu Fuel type list. See also Chapter Adding fuels to Fuel type selection, S.35. ► Select the desired fuel. ► Press F3 The menu Info fuel type appears. -
Page 37: Defining Measurement Window
USER MANUAL NOVAplus ► Go to the menu Fuel type list See also Chapter Adding fuels to Fuel type selection, S. 35. ► Select the user fuel you want to define. ► Press F3 The menu Define user fuel type appears. -
Page 38: Configuring Zoom Window
USER MANUAL NOVAplus ► Select the desired measured value that you want to change. ► Press the Menu Key A selection list appears. ► Select Save measuring window. ► Press OK. The change is saved. 5.13. Configuring zoom window Three zoom windows are available in each measuring program for the zoomed display of 2 measured values each. -
Page 39: Changing Measurement Program Names
USER MANUAL NOVAplus 5.14. Changing measurement program names In the menu Selection meas. program the name of the measurement program van be changed. ► Press OK The menu Selection meas. Program appears ► Press F3. A window appears. -
Page 40: Preparing Measurement
USER MANUAL NOVAplus 6 Preparing measurement 6.1. Ensure power supply The analyzer can be used with: 1. with the internal MRU battery (provided) 2. with the MRU battery charger (provided) External equipment may only be connected while the analyzer is switched off! 6.2. -
Page 41: Operating Temperature
USER MANUAL NOVAplus 6.5. Operating temperature If the analyzer has been stored at low temperatures, it will require some time to equilibrate to the ambient temperature before being switched on. If it does not equilibrate, condensation will occur inside the analyzer! If the temperature is out of its operation range you will see the follow- ing messages on the display. -
Page 42: Connections And Tightness
USER MANUAL NOVAplus 6.7. Connections and tightness Check all plug connections for correct fitting. Check all hoses, hose connections, condensate containers (from the probe tip to the gas connection on the analyzer) for tightness. The analyzer has a built-in automatic test to check the tightness of the gas paths. -
Page 43: Repeating The Zeroing
USER MANUAL NOVAplus Repeating the zeroing The zeroing can be repeated at any time as long as the probe is not in- side the stack. In the main menu you select “Zeroing”, and after the dis- played message press the OK key. -
Page 44: Performing Measurement
USER MANUAL NOVAplus 7 Performing measurement In the basic configuration, each analyzer has the complete functionality you need for gas measurement. The process of gas measurement is described below. The description of other optionally available measuring programs can be found in the appendix or on separate supplementary sheets. -
Page 45: Core Flow Search
USER MANUAL NOVAplus ► Go to the Measurement menu. ► Press OK. The menu Selection meas. program appears. ► Select the desired measurement program. ► If necessary, change the CO limit. See also Chapter Setting CO limit value, Page 34. -
Page 46: Measured Value Display
USER MANUAL NOVAplus Approach- Temperature ing the max- rising imal flue gas temperature Positioning the probe in the core flow Insert the probe pipe slowly into the stack and position your probe pipe when you have reached the maximum flue gas temperature that is dis- played (see temperature maximum value on the display –... - Page 47 USER MANUAL NOVAplus There are direct measured values available such as Oxygen and Temper- ature as well as calculated values such as dew point, efficiency and CO You will also find the same measurement value in different calculated values such as CO in ppm or CO in mg/kWh.
-
Page 48: Co Purging (Optional)
USER MANUAL NOVAplus 7.4. CO purging (optional) If the CO ppm limit is reached the analyzer will start the CO purging pump to protect the CO sensor from getting saturated with CO. Other values will not be affected while the CO sensor is being purged. -
Page 49: Specific Measurement Applications
USER MANUAL NOVAplus 7.6. Specific measurement applications 30 sec. average value calculation according 1. BImSchV_2010 This function is available if you have received your unit with German configuration. ► Press F3 in the measuring window. The average value calculation is started. -
Page 50: Test Program
Save measured values Back to the measurement menu without saving For this measurement MRU offers an annular gap probe (Part no. 56352) which can be connected to the condensate separator of the analyzer. Optional you can connect the annular gap probe with an adaptor (Part No. -
Page 51: Performing Ambient Co Test
USER MANUAL NOVAplus Performing Ambient CO Test In some countries the measuring program CO environment is de- manded. The objective of this measuring program is the proof of CO concentration in the environment of the measuring point. In the case of the country setting in the main menu the menu option is indicated „CO... -
Page 52: Store Measured Values In The Buffer
USER MANUAL NOVAplus Store measured values in the buffer During an actual measurement you can set the actual values into the clipboard. Operation: • the function „val. to clipboard“ of the menu (accessible about the menu button) ► Start a measurement. -
Page 53: Overwrite Measured Values In Buffer
USER MANUAL NOVAplus Overwrite measured values in buffer When the measurement is stopped, you can overwrite the displayed meas- ured values with the measured values stored in the temporary buffer. ► Press F1. The measurement is stopped The measured value window is highlighted in grey. - Page 54 USER MANUAL NOVAplus ► Before using this function, it must be switched on in the Measure- ment settings. ► Go to the Extras menu. ► Press F3. The menu Analyser settings appears. ► Press F3. The menu Measurement settings appears.
-
Page 55: Printing Measurement Values
USER MANUAL NOVAplus 7.9. Printing measurement values Measurement results can be printed using the printer button. Printer line feed is activated when pressing the printer button outside of a measuring screen. All measurement values which are activated in the measurement screen will be printed (values which are selected more than once will only be printed once). -
Page 56: Pressure Measurement
USER MANUAL NOVAplus 7.12. Pressure measurement Pressure (4 values) is measured and saved to the selected measurement name. The actual measured value is displayed in the middle of the dis- play. The 4 measurement names can be changed as desired. -
Page 57: Differential Temperature Measurement
The menu Diff. temp. measurement appears. The temperatures T1, T2 and the difference are displayed. NOTE The accuracy of the difference temperature measure- ment is guaranteed only on use of the MRU temperature sensors. 57 / 95 MRU GmbH, D-74172 Neckarsulm... -
Page 58: Data Storage
USER MANUAL NOVAplus 8 Data Storage 8.1. Organizing data storage Basis of the data memory of the analyzer is a set of sites stored in the device. Every site exists of a unique site number and 8 freely usable text lines which can have, e.g., the address, customer name etc. -
Page 59: Site Administration
USER MANUAL NOVAplus 8.3. Site administration In the menu item “Sites administration” you are able • view all data of the stored sites • create new sites • change date of existing sites • delete sites In the device new created sites and changes in the data of a site will not transmit to the PC back. -
Page 60: View Sites
USER MANUAL NOVAplus View sites ► Go to the Storage menu. ► Select Site administration. The menu Sites administration appears. Each stored site is displayed on a page with the coloured site number and eight additional free text lines. -
Page 61: Changing Sites
USER MANUAL NOVAplus ► Select a line in which you want to search for content. In this example, the search is performed in line 2. ► Press F3. A window appears. ► Enter the desired search term In this example the search term is John Example. -
Page 62: Deleting Sites
USER MANUAL NOVAplus Deleting sites You can delete sites individually or delete all sites simultaneously Deleting sites individually You can delete sites individually or delete all sites simultaneously ► Go to the Storage menu. ► Select Sites administration. ► Press F2. -
Page 63: Data Transfer Using Sd Card (Option)
Each record in the table is one line of the text file. Each field value of a record is separated from the next by a character. NOVAplus Combustion Analayzer uses a semi- colon ‘;’ as value separator (other implementations use sometimes a comma). - Page 64 USER MANUAL NOVAplus With this function you can Import Sites which have been created on a computer or another Analyzer. The File name must have the name “anlagen.csv“ (anlagen = German for sites) . The file has no column heading that means that the first line al- ready has user data.
-
Page 65: Exporting Sites
USER MANUAL NOVAplus Exporting sites ► Go to the Storage menu. ► Select Sites onto SD card. ► Press OK. The menu Sites onto SD card appears. ► Press F2. The sites are exported. This function can be used for an analyzer back up or if you wish to sup- ply the analyzer information to a computer program or another ana- lyzer. -
Page 66: Exporting Differential Pressure Measurements
USER MANUAL NOVAplus The created file has a column header with the following information: Site number, Date/Time, Measuring program name, Fuel type, CO2max, O2reference, and all measured values that the analyzer can measure as well as the soot numbers, Derivate and T-Boiler. -
Page 67: Deleting Measurements
USER MANUAL NOVAplus ► With F2 = "measured value" are displayed the measured data of the stored measurement in detail, available in 3 measuring value pages, as they are defined in the measuring value window. ► With ESC you return to the context information of the measurement. -
Page 68: Transferring Measurements To Sd-Card (Option)
What is necessary for a data transfer to a sweeping district manage- ment program? The data memory can be transferred to a PC via USB. The MRU-ZIV module is required for this. Which requirements are necessary on the PC? The Analyzer must be registered on the PC as a HID conform device. - Page 69 Please contact the developer of the program. How do I have to install the MRU-ZIV module? The software MRU-ZIV module can be found on the MRU product CD in the Software folder. During installation, the manual for the MRU-ZIV mod- ule is stored on your hard disk, which you can print out if necessary.
-
Page 70: Extras / Adjustments
USER MANUAL NOVAplus 9 Extras / Adjustments The analyzer is delivered in a standard software configuration which should cover most needs. However, there are many ways to tailor the settings to your individual needs if required. The possibilities are highly flexible and individual adaptable. - Page 71 – Logo installed. Printer Logo setting: As soon as the Logo has been installed and the printer type is set on MRU, the Logo print will be available in the menu “extras / settings (print Logo). 71 / 95...
-
Page 72: Service Calibration Menu
If you enter a wrong pin code you will be exited into the “Extra Menu” again. Please contact MRU GmbH if you need the Pin Code for your analyzer. Press the Enter key if you should have landed in this menu by accident and you will be exited into the “Extra Menu”... -
Page 73: Default Settings
In this menu you will see all service values of the sensors and also other parameters. In case of a defect contact the MRU service department. The MRU ser- vice technician will ask you about these values or he will ask you to send them by fax or email. - Page 74 USER MANUAL NOVAplus Service values RCU: Jump between the lines Export of service values to SD card return Service values base unit: Jump between the lines Function test gas pump (on / off -> only with service PIN code!) Function test purge pump (on / off -> only with service PIN...
-
Page 75: Performing Leak Test
USER MANUAL NOVAplus 9.5. Performing leak test With the leak proof test, the system is checked by the device (incl. the condensate separator) up to the probe spike on undensity. The internal gas pump generates in addition a subpressure which is measured over the built-in draft sensor and is observed for a period of 10 seconds. -
Page 76: Contents Sd Card
USER MANUAL NOVAplus If of the leak proof test is not passed the probe must be checked includ- ing the hosing as well as the condensate separator. If no undensity is ascertained in these external parts the analyzer has to be checked in a service department (worldwide service departments see www.mru.eu). -
Page 77: Options List Base Unit
USER MANUAL NOVAplus Options list base unit ► Go to the Extras menu. ► Select Device info base. The menu Device info base appears. ► Press F2. Das menu Options list base appears. ► Press F3. The name respectively the MAC address of the connected base unit appears. -
Page 78: Maintenance And Care
When next powered on, you will be reminded to the execution of the annual customer service. A complete service at an MRU service station (for MRU services station please see: www.mru.eu) contains the function control and calibration and/or cleaning of the fol-... -
Page 79: Appendix
USER MANUAL NOVAplus Appendix 11.1. Technical data General data Deutsch Angabe English Betriebstemperatur +5°C ... +45 °C / 41 °F ... Operating temperature 113 °F Rel. Luftfeuchtigkeit bei Be- Rel. Humidity, non-condensing trieb, nicht-kondensierend Lagertemperatur -20°C ... +50°C / -4°F ... -
Page 80: Gas Sampling And Conditioning
USER MANUAL NOVAplus Gas sampling and conditioning Deutsch Angabe English Condensate trap (non- Kondenstafalle (nicht-gekühlt) Standard cooled) Gaskühler Option Gas cooler Temperture Peltier cooler Temperatur Peltierkühler (an Netz und (during grid and battery Akku) 5 °C operation) 2,5h (5°C) / 6h (ECO T- Batt operating hours with Akkubetriebszeit mit Gaskühler... - Page 81 USER MANUAL NOVAplus Ansprechzeit T90 < 40s Response Time T90 Option CO low Option Messbereich 300 ppm Measuring Range Auflösung 0,1 ppm Resolution 2,0 ppm Genauigkeit absolut / vom Accuracy abs. / reading Messwert Elektrochemischer Sensor CO high Electrochemical Sensor...
- Page 82 USER MANUAL NOVAplus Elektrochemischer Sensor Electrochemical Sensor Nominaler Messbereich 0 - 2000 ppm Nom. Measuring Range Überlastbereich < 5000 ppm Overload Range Auflösung Resolution ± 10ppm / 5% (0 ... 2000 ppm) Genauigkeit abs. /vom Messwert 10% (> 2000 ppm) Accuracy abs./reading...
- Page 83 USER MANUAL NOVAplus To be connected to base Anschluss an Grundgerät oder op- unit or optional to remote tional an Fernbedieneinheit control unit Kaminzug Draft Messbereich ± 120 hPa Measuring Range Auflösung 0,1Pa Resolution 0,02 hPa / Genauigkeit abs. / vom Messwert Accuracy abs.
-
Page 84: Calculated Values
USER MANUAL NOVAplus Non-dispersive Infrared Meas- Nicht-dispersive Infrarotmessung (NDIR) CH4 / CO / CO2 urement (NDIR) Length ArtNr. Type Range Resolution Accuracy 0,001 % ± 0,03 % / 3 % 64011 10 % 0,001 % ± 0,03% / 3 %... - Page 85 USER MANUAL NOVAplus based on vane ane- basierend auf Flügelradmessung mometer measuring range (de- Messbereich (abhängig von Flügelrad- pending on actual vane Typ) 0,25 - 35 m/s type) externer Drucksensor Angaben external pressure sensor #63684 Messbereich 5 bar Range Auflösung...
-
Page 86: Data Communication
USER MANUAL NOVAplus Messbereich 0 - 200 mbar Genauigkeit (abs. / vom Messwert) ±0,5 mbar / 3% Gasleitungsprüfung - Gasleckmenge Messbereich 0 - 8 l/h Genauigkeit (abs. / vom Messwert) ±0,2 l/h / 5% Gaslecksuche Gas Sniffer Messbereich CH 5 - 20000 ppm Measuring Range CH Überlast... -
Page 87: Analysis And Calculations
These values are than referenced for the gross calorific value for con- densing boilers only. (efficiency > 100) The calculations of efficiency and exhaust losses are performed using Siegert’s formula. For further information please contact MRU GmbH 87 / 95 MRU GmbH, D-74172 Neckarsulm... -
Page 88: Fuel Type List
USER MANUAL NOVAplus 11.4. Fuel type list 11.5.Fuel type list Deutschland O2max 20,96 Brennstoff CO2max Prüfgas 0,00 0,00 0,000 Erdgas (LL) 11,8 0,37 0,66 0,009 Erdgas (E) (*) 12,1 0,37 0,64 0,009 Heizöl EL 15,4 0,50 0,68 0,007 Heizöl S... -
Page 89: Text Input
USER MANUAL NOVAplus 11.6. Text input A number of texts and names can be changed to your own needs. (for example: the names of the user defined fuel types, site names, the names of the measurement programs) When you select the text input, the following window will pop up:... -
Page 90: Firmware Update
USER MANUAL NOVAplus 11.8. Firmware update NOTE During the Firmware update the LED of the ON-OFF switch (Base unit) is flashing and the Bluetooth connec- tion symbol changes the colour from blue to yellow. Don’t press during the update any key and remove the... - Page 91 USER MANUAL NOVAplus RCU: Please write down your Firmware-Version (e.g. 1.11.50)_________________________________ Please write down your serial number (e.g. 012072)____________________________ Base unit: Please write down your Firmware-Version (e.g. 1.09.01_____________________________ Please write down your serial number (e.g. 012039)____________________________ Do the following steps in order to update the firmware: ►...
-
Page 92: Troubleshooting
USER MANUAL NOVAplus 11.9. Troubleshooting Troubleshooting the analyzer 1. Effect 2. Error indication 3. Cause 4. Solution Device cannot be LED behind the conden- Device does not re- Press ESC and ON simulta- switched off by sate separator is on and neously! act on any key. -
Page 93: Troubleshooting Condensate Separator
USER MANUAL NOVAplus Troubleshooting condensate separator 1. Effect 2. Cause 3. Solution Dirt and / or humidity inside the Fine filters are wet and / or dirty. Check filters more often device Renew them if neces- No filter effect sary (white = OK) -
Page 94: Declaration Of Conformity
USER MANUAL NOVAplus Declaration of conformity 94 / 95 MRU GmbH, D-74172 Neckarsulm... - Page 95 USER MANUAL NOVAplus 95 / 95 MRU GmbH, D-74172 Neckarsulm...
