13.4.

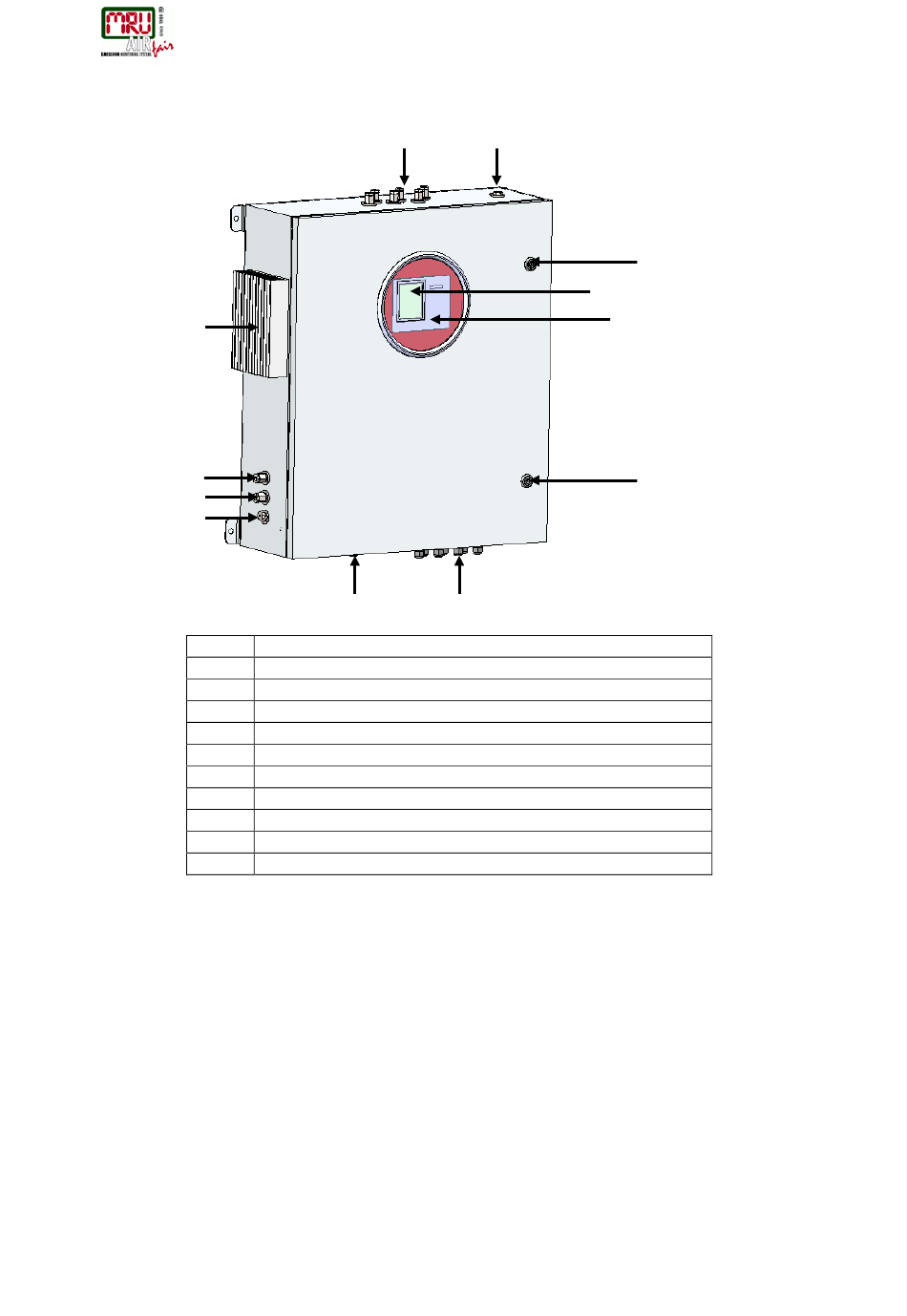

Position of the gas in and outlets

7
6
1 Display (color, with backlight)
2 Keypad
3
Sample biogas inlet ports (1 to max 4 ), female G1/8" threads
4
Cabinet lock
5 Inlet cable glands M16 for I/O modules
6 Inlet cable gland M16 for mains power supply
7
Heat sink for gas cooler unit
8
Condensate outlet port, female G1/8" thread
9 Zero gas inlet port, female G1/8" thread
10 Calibration gas inlet port, female G1/8" thread
11 Vent outlet port, female G1/4" thread
3 11
5
SWG100 BIOGAS User Manual
4
1
2
4
