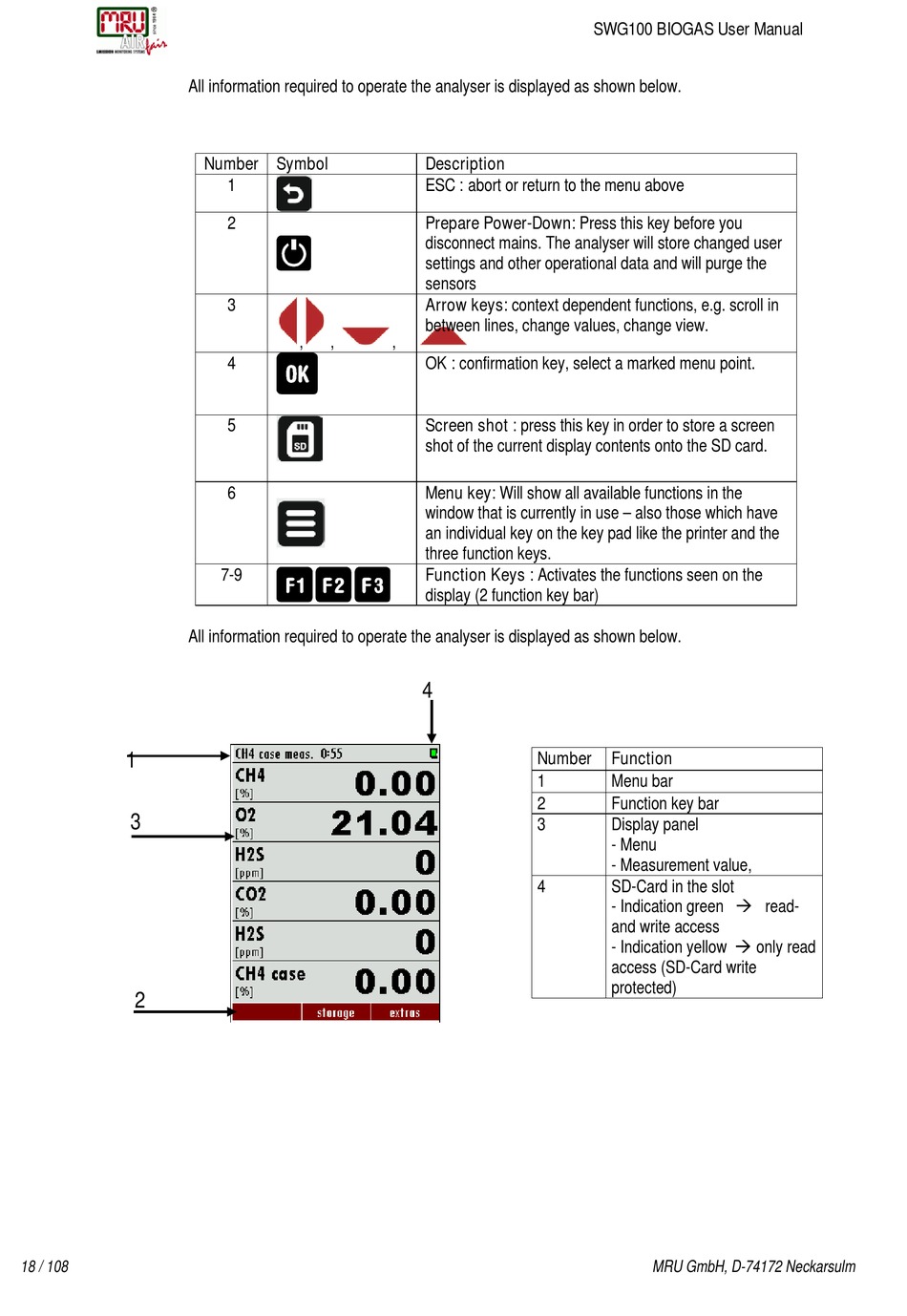

All information required to operate the analyser is displayed as shown below.
Number Symbol
1
2
3
, ,
4
5
6
7-9
All information required to operate the analyser is displayed as shown below.
Description
ESC : abort or return to the menu above
Prepare Power-Down: Press this key before you
disconnect mains. The analyser will store changed user
settings and other operational data and will purge the
sensors
Arrow keys: context dependent functions, e.g. scroll in
between lines, change values, change view.
,
OK : confirmation key, select a marked menu point.
Screen shot : press this key in order to store a screen
shot of the current display contents onto the SD card.
Menu key: Will show all available functions in the
window that is currently in use – also those which have
an individual key on the key pad like the printer and the
three function keys.
Function Keys : Activates the functions seen on the
display (2 function key bar)
4
Number
1
2
3
4
SWG100 BIOGAS User Manual
Function
Menu bar
Function key bar
Display panel
- Menu
- Measurement value,
SD-Card in the slot
- Indication green  read-
and write access
- Indication yellow  only read
access (SD-Card write
protected)
