MRU GmbH SWG 100 BIO Ex User Manual

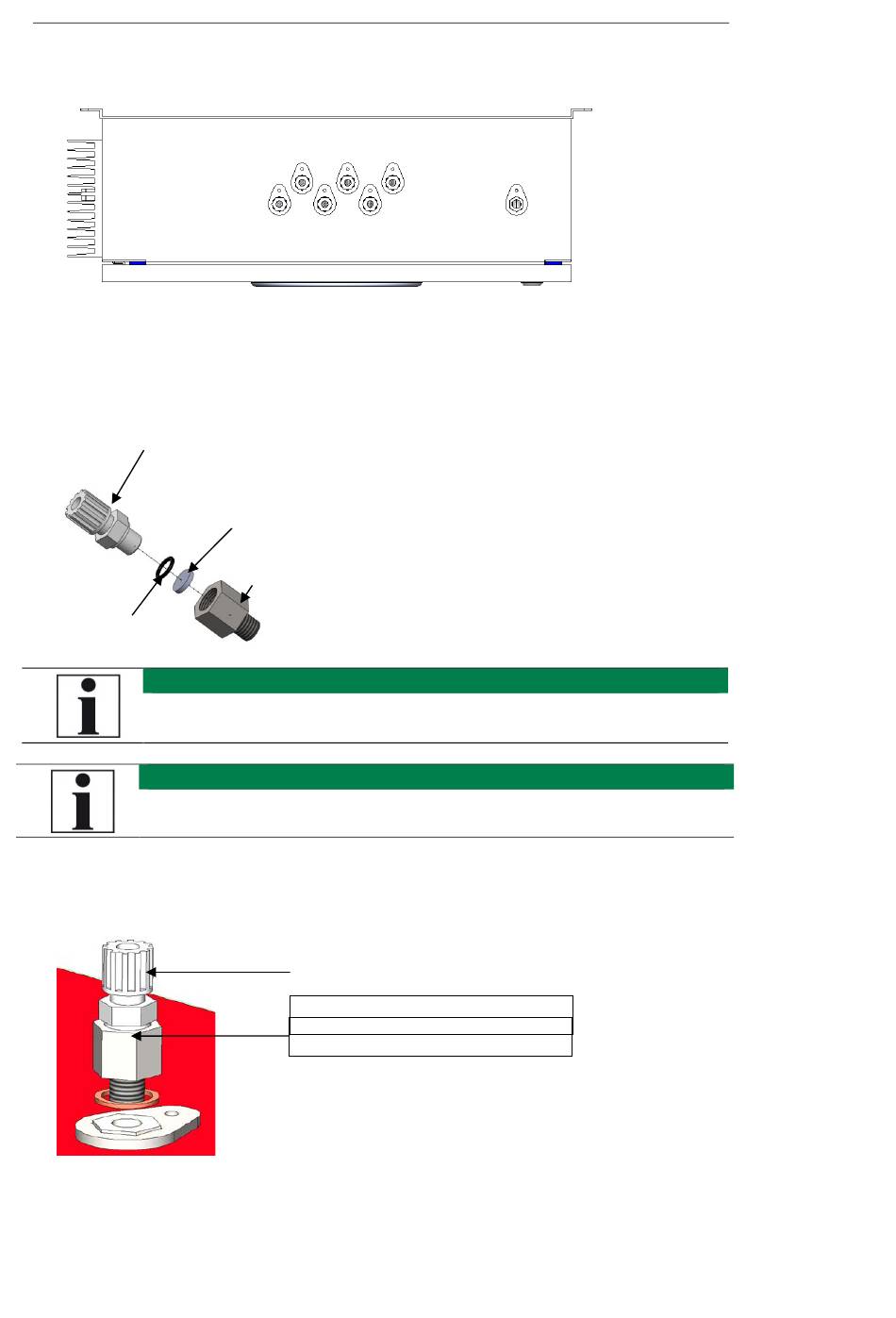

7.7. Flow restrictor orifice (#65114)

To measure any biogas applications, the analyzer can be equipped with a flow restrictor
orifice (see picture).
Male connector G1/8"
Sinter filter
Nozzle
O-ring
Picture: Flow restrictor orifice with intern filter.
NOTE
The copper seal of the nozzle is intended only for single use.
NOTE
Use PTFE strips to tighten the fitting inside the thread!
Connection the flow restrictor orifice with the gas inlets
Fitting type: G 1/8 inner ISO parallel thread for tubing with 6/4 mm flexible tube.
Information
G1/8" out ISO parallel thread
G1/8" ISO parallel thread
The flow restrictor orifices are installed on the sample gas inlets and on the calibration
gas inlet.
of
Page 43 150
