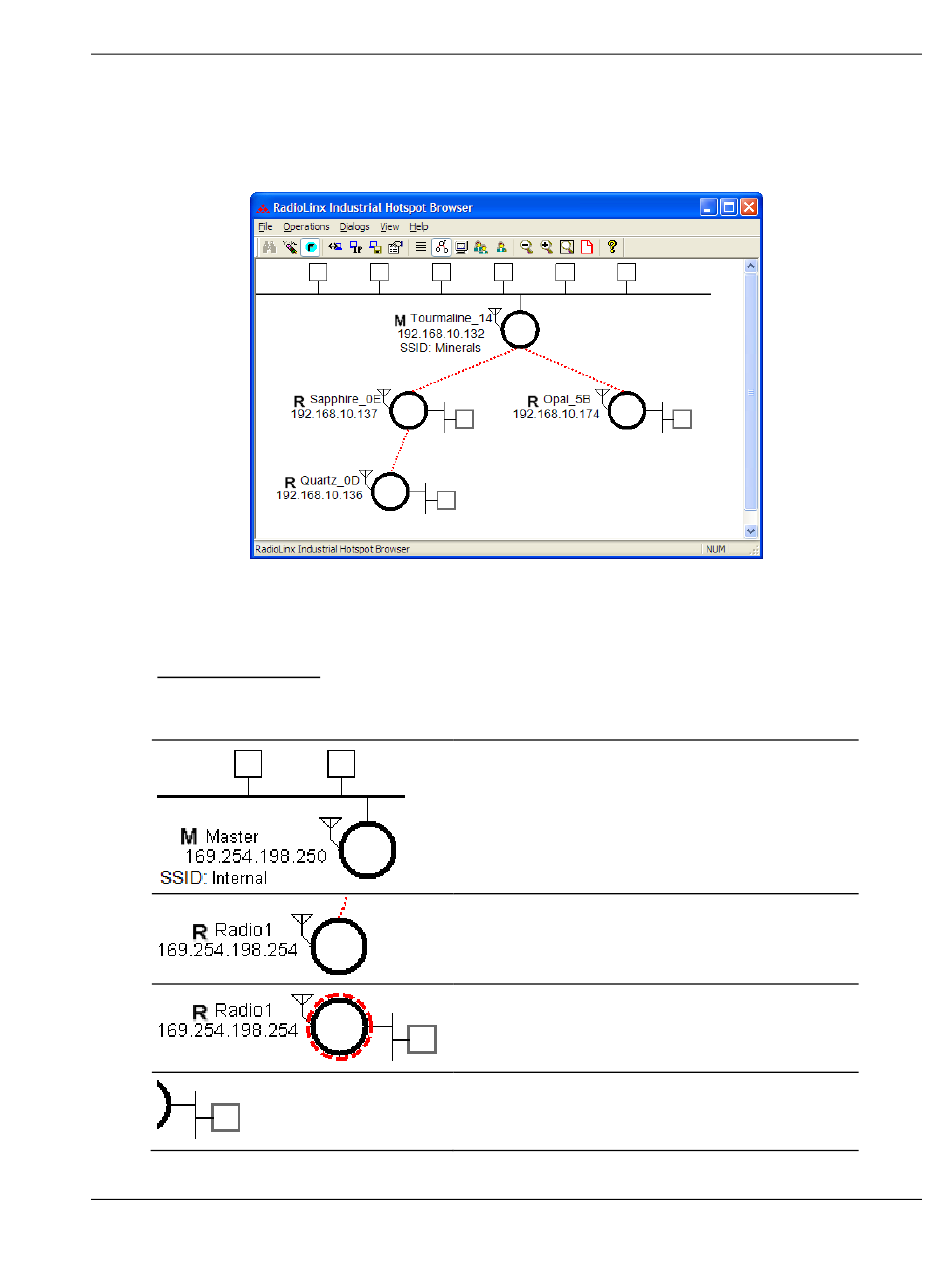

In the topology view, you can double-click a radio to log in to the Radio
Configuration / Diagnostic Utility and change the radio's settings. To view a
radio's properties, right-click on a radio representation in the topology view and
then select Properties from the resulting menu.
Refer to Topology View key (page 73) for an explanation of the symbols that
appear in this view.
Topology View key
For information on other options that appear when you right-click a radio
representation, see RLX-IH Browser options (page
ProSoft Technology, Inc.
May 25, 2010
RadioLinx® Industrial 802.11abg Serial and Ethernet Client
57).
Master; always shown at the top
Radio linked to the network
Radio not linked; no parent
An Ethernet connection exists to the radio; does not
indicate the number of devices on the connection
RLXIB-IESC ♦ 802.11a, b, g
