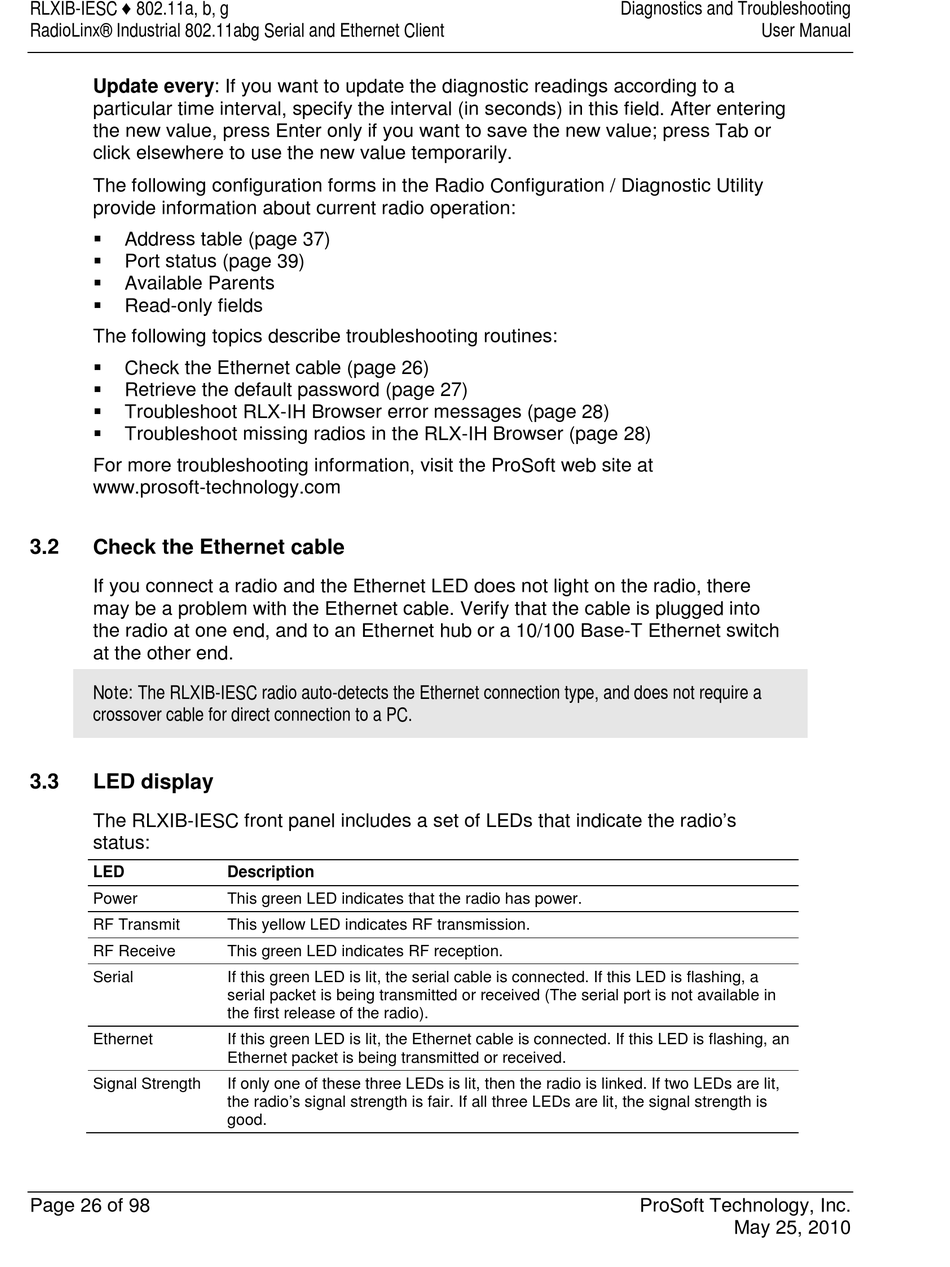

Update every: If you want to update the diagnostic readings according to a
particular time interval, specify the interval (in seconds) in this field. After entering
the new value, press Enter only if you want to save the new value; press Tab or
click elsewhere to use the new value temporarily.
The following configuration forms in the Radio Configuration / Diagnostic Utility
provide information about current radio operation:

Address table (page 37)

Port status (page 39)

Available Parents

Read-only fields
The following topics describe troubleshooting routines:

Check the Ethernet cable (page 26)

Retrieve the default password (page 27)

Troubleshoot RLX-IH Browser error messages (page 28)

Troubleshoot missing radios in the RLX-IH Browser (page 28)
For more troubleshooting information, visit the ProSoft web site at
www.prosoft-technology.com
3.2

Check the Ethernet cable

If you connect a radio and the Ethernet LED does not light on the radio, there
may be a problem with the Ethernet cable. Verify that the cable is plugged into
the radio at one end, and to an Ethernet hub or a 10/100 Base-T Ethernet switch
at the other end.
Note: The RLXIB-IESC radio auto-detects the Ethernet connection type, and does not require a
crossover cable for direct connection to a PC.
3.3

LED display

The RLXIB-IESC front panel includes a set of LEDs that indicate the radio's
status:
LED
Power
RF Transmit
RF Receive
Serial
Ethernet
Signal Strength
Page 26 of 98
Description
This green LED indicates that the radio has power.
This yellow LED indicates RF transmission.
This green LED indicates RF reception.
If this green LED is lit, the serial cable is connected. If this LED is flashing, a
serial packet is being transmitted or received (The serial port is not available in
the first release of the radio).
If this green LED is lit, the Ethernet cable is connected. If this LED is flashing, an
Ethernet packet is being transmitted or received.
If only one of these three LEDs is lit, then the radio is linked. If two LEDs are lit,
the radio's signal strength is fair. If all three LEDs are lit, the signal strength is
good.
Diagnostics and Troubleshooting
User Manual
