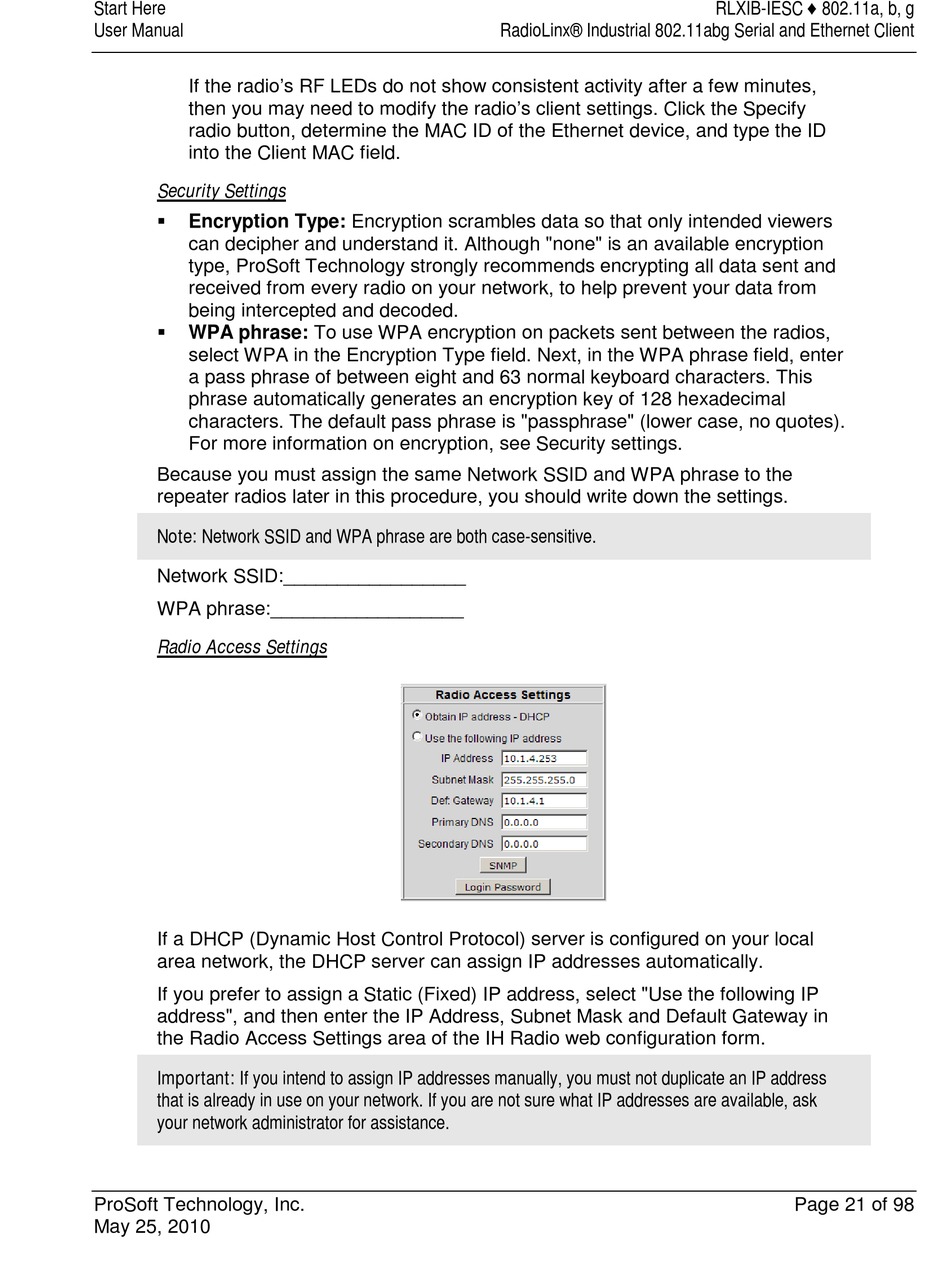

ProSoft RadioLinx RLXIB-IESC User Manual page 21

Start Here
User Manual
If the radio's RF LEDs do not show consistent activity after a few minutes,
then you may need to modify the radio's client settings. Click the Specify
radio button, determine the MAC ID of the Ethernet device, and type the ID
into the Client MAC field.
Security Settings

Encryption Type: Encryption scrambles data so that only intended viewers
can decipher and understand it. Although "none" is an available encryption
type, ProSoft Technology strongly recommends encrypting all data sent and
received from every radio on your network, to help prevent your data from
being intercepted and decoded.

WPA phrase: To use WPA encryption on packets sent between the radios,
select WPA in the Encryption Type field. Next, in the WPA phrase field, enter
a pass phrase of between eight and 63 normal keyboard characters. This
phrase automatically generates an encryption key of 128 hexadecimal
characters. The default pass phrase is "passphrase" (lower case, no quotes).
For more information on encryption, see Security settings.
Because you must assign the same Network SSID and WPA phrase to the
repeater radios later in this procedure, you should write down the settings.
Note: Network SSID and WPA phrase are both case-sensitive.
Network SSID:_________________
WPA phrase:__________________
Radio Access Settings
If a DHCP (Dynamic Host Control Protocol) server is configured on your local
area network, the DHCP server can assign IP addresses automatically.
If you prefer to assign a Static (Fixed) IP address, select "Use the following IP
address", and then enter the IP Address, Subnet Mask and Default Gateway in
the Radio Access Settings area of the IH Radio web configuration form.
Important: If you intend to assign IP addresses manually, you must not duplicate an IP address
that is already in use on your network. If you are not sure what IP addresses are available, ask
your network administrator for assistance.
