5.5.3 List View

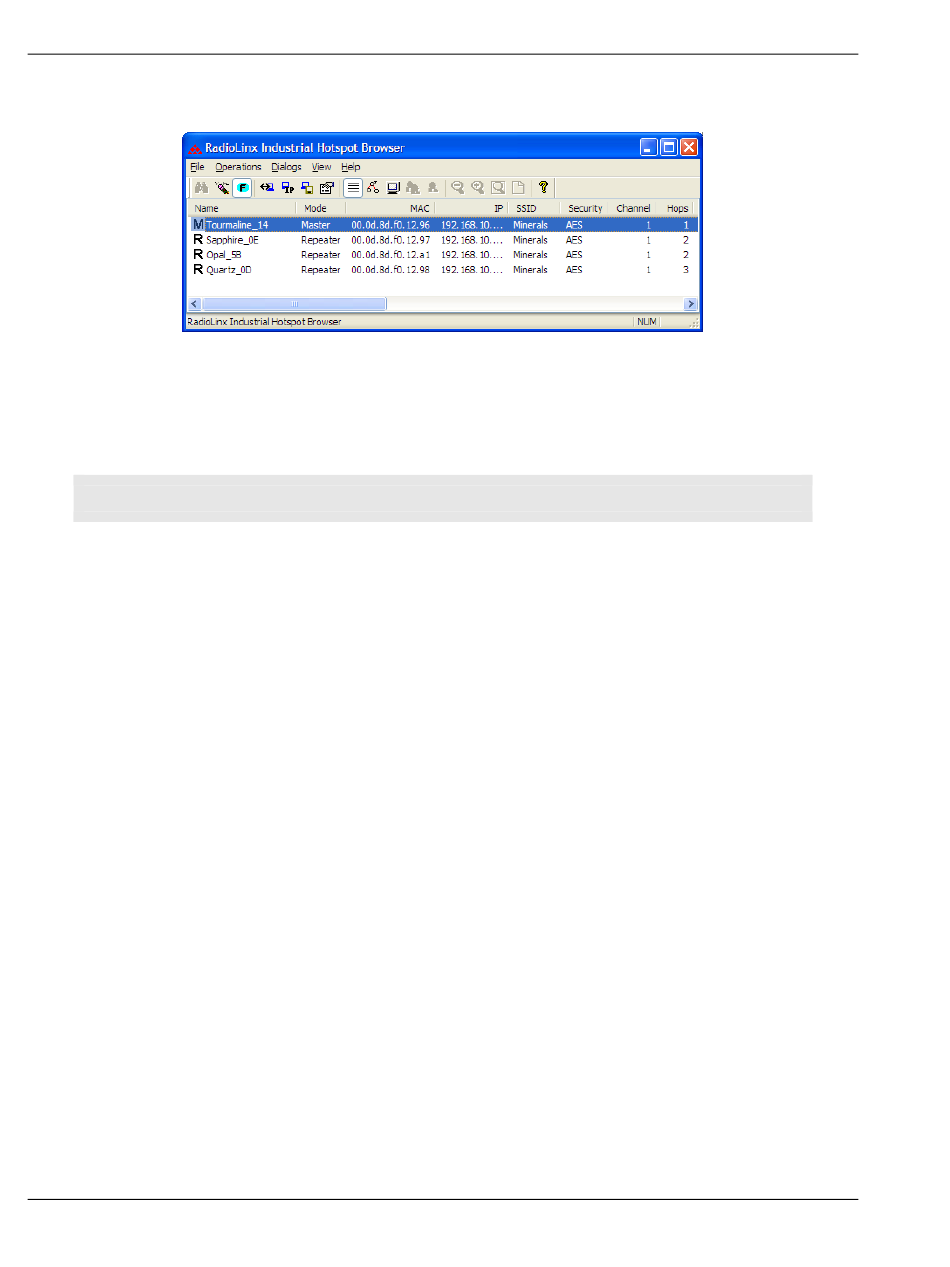

List View shows a list of all the connected radios in a grid, arranged similarly to
data in a spreadsheet. Resize the window or scroll across to see all of the
available columns. Click between column headers and drag to the left or right to
resize columns. Click on column headers and drag to the left or right to re-order
columns.
Tip: Use the Reset Columns command to restore the column size and order to their default values.
5.5.4 Topology View
To see how radios are connected together in the network, select Topology View
from the View menu. The Topology view shows a diagram of the network's
wireless connections. If a radio does not appear in the view, it is not connected to
the network. To change the way a radio is linked to the network, connect to it and
make changes through its Web page. For information on these settings, see
Parent Link settings (page 43).
