ProSoft RadioLinx RLXIB-IESC User Manual page 46

RLXIB-IESC ♦ 802.11a, b, g
RadioLinx® Industrial 802.11abg Serial and Ethernet Client

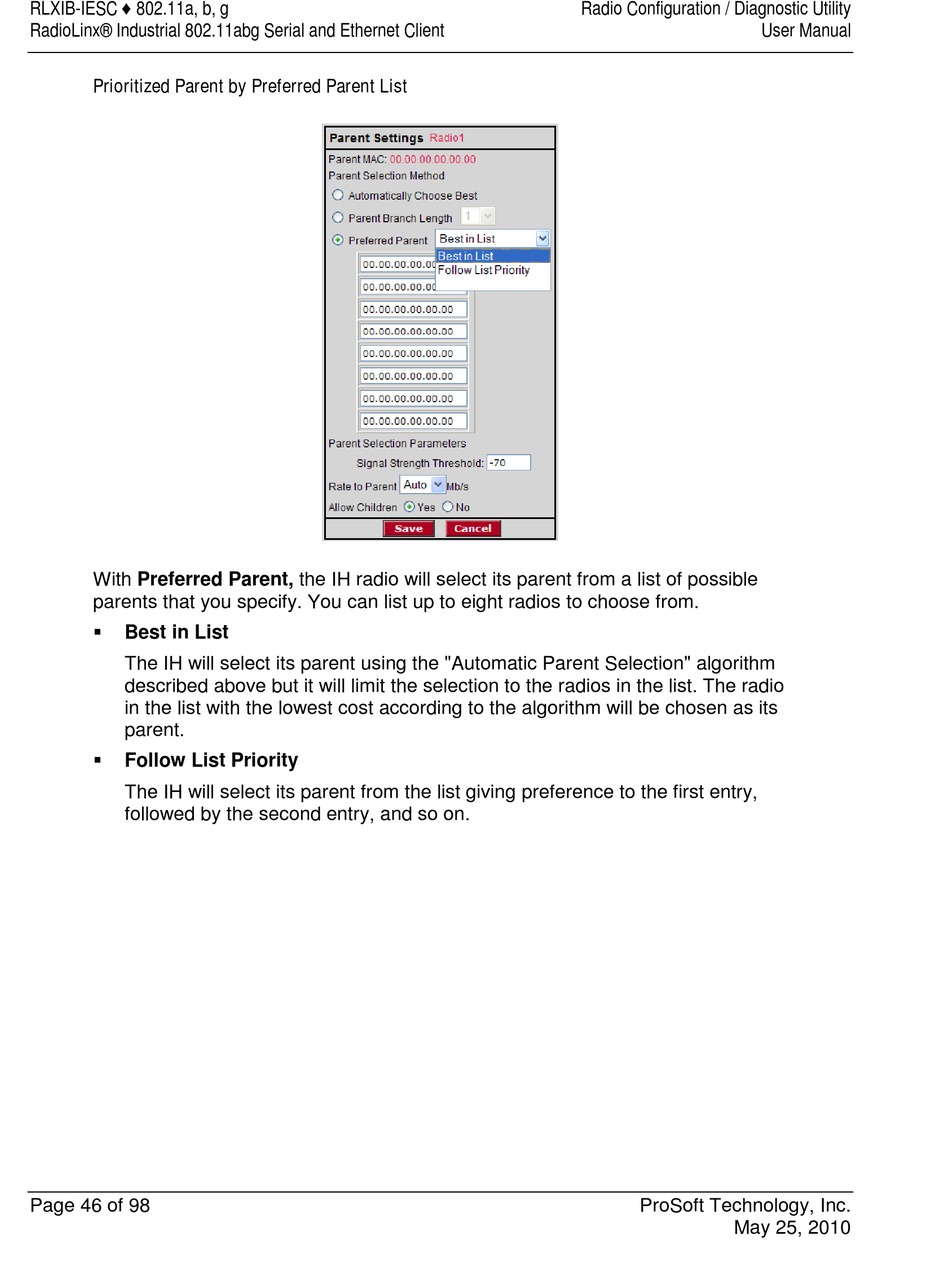

Prioritized Parent by Preferred Parent List
With Preferred Parent, the IH radio will select its parent from a list of possible
parents that you specify. You can list up to eight radios to choose from.

Best in List
The IH will select its parent using the "Automatic Parent Selection" algorithm
described above but it will limit the selection to the radios in the list. The radio
in the list with the lowest cost according to the algorithm will be chosen as its
parent.

Follow List Priority
The IH will select its parent from the list giving preference to the first entry,
followed by the second entry, and so on.
Page 46 of 98
Radio Configuration / Diagnostic Utility
ProSoft Technology, Inc.
May 25, 2010
User Manual
