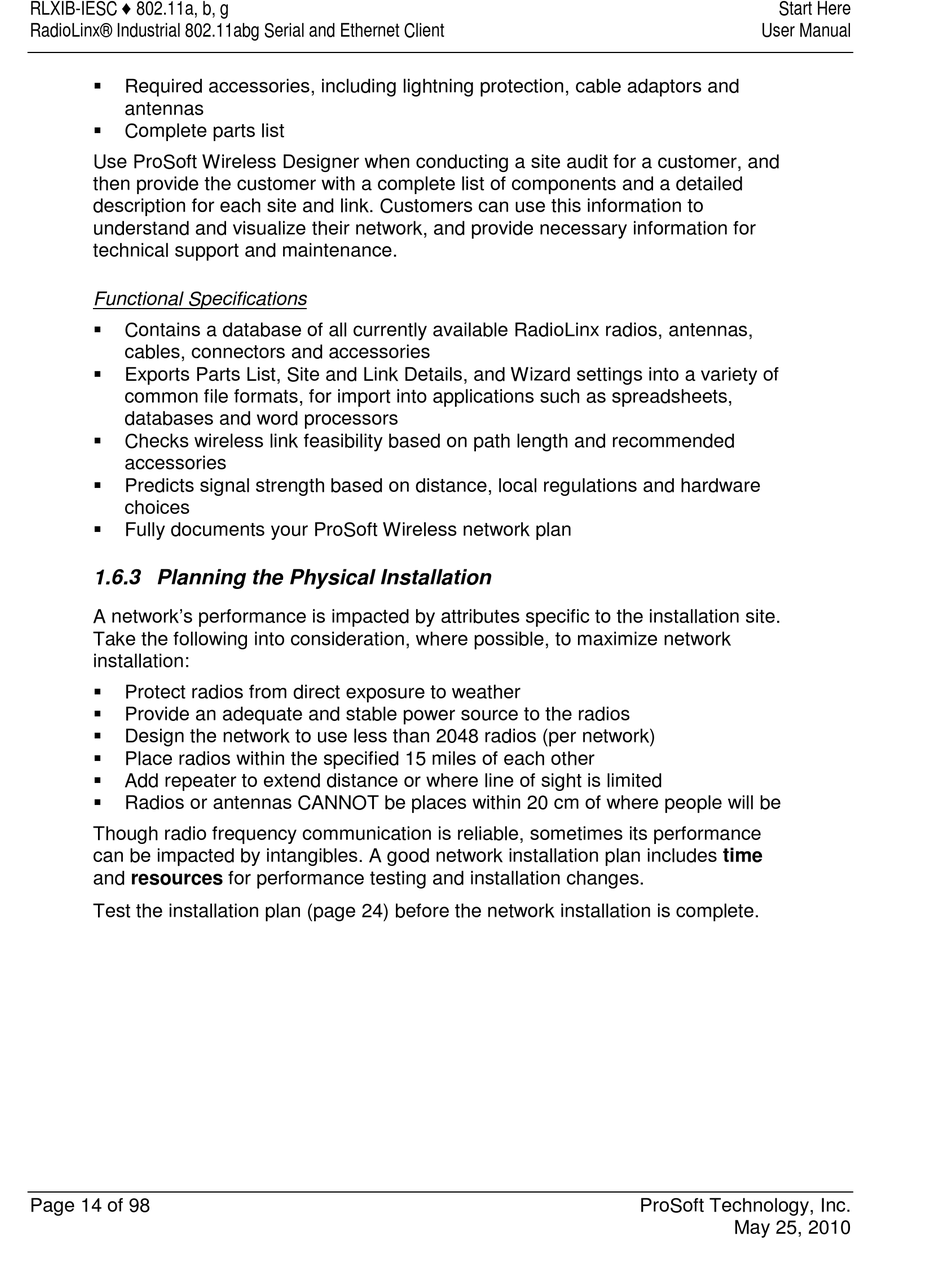

RLXIB-IESC ♦ 802.11a, b, g
RadioLinx® Industrial 802.11abg Serial and Ethernet Client

Required accessories, including lightning protection, cable adaptors and
antennas

Complete parts list
Use ProSoft Wireless Designer when conducting a site audit for a customer, and
then provide the customer with a complete list of components and a detailed
description for each site and link. Customers can use this information to
understand and visualize their network, and provide necessary information for
technical support and maintenance.
Functional Specifications

Contains a database of all currently available RadioLinx radios, antennas,
cables, connectors and accessories

Exports Parts List, Site and Link Details, and Wizard settings into a variety of
common file formats, for import into applications such as spreadsheets,
databases and word processors

Checks wireless link feasibility based on path length and recommended
accessories

Predicts signal strength based on distance, local regulations and hardware
choices

Fully documents your ProSoft Wireless network plan
1.6.3 Planning the Physical Installation
A network's performance is impacted by attributes specific to the installation site.
Take the following into consideration, where possible, to maximize network
installation:

Protect radios from direct exposure to weather

Provide an adequate and stable power source to the radios

Design the network to use less than 2048 radios (per network)

Place radios within the specified 15 miles of each other

Add repeater to extend distance or where line of sight is limited

Radios or antennas CANNOT be places within 20 cm of where people will be
Though radio frequency communication is reliable, sometimes its performance
can be impacted by intangibles. A good network installation plan includes time
and resources for performance testing and installation changes.
Test the installation plan (page 24) before the network installation is complete.
