Start Here
User Manual
1.2

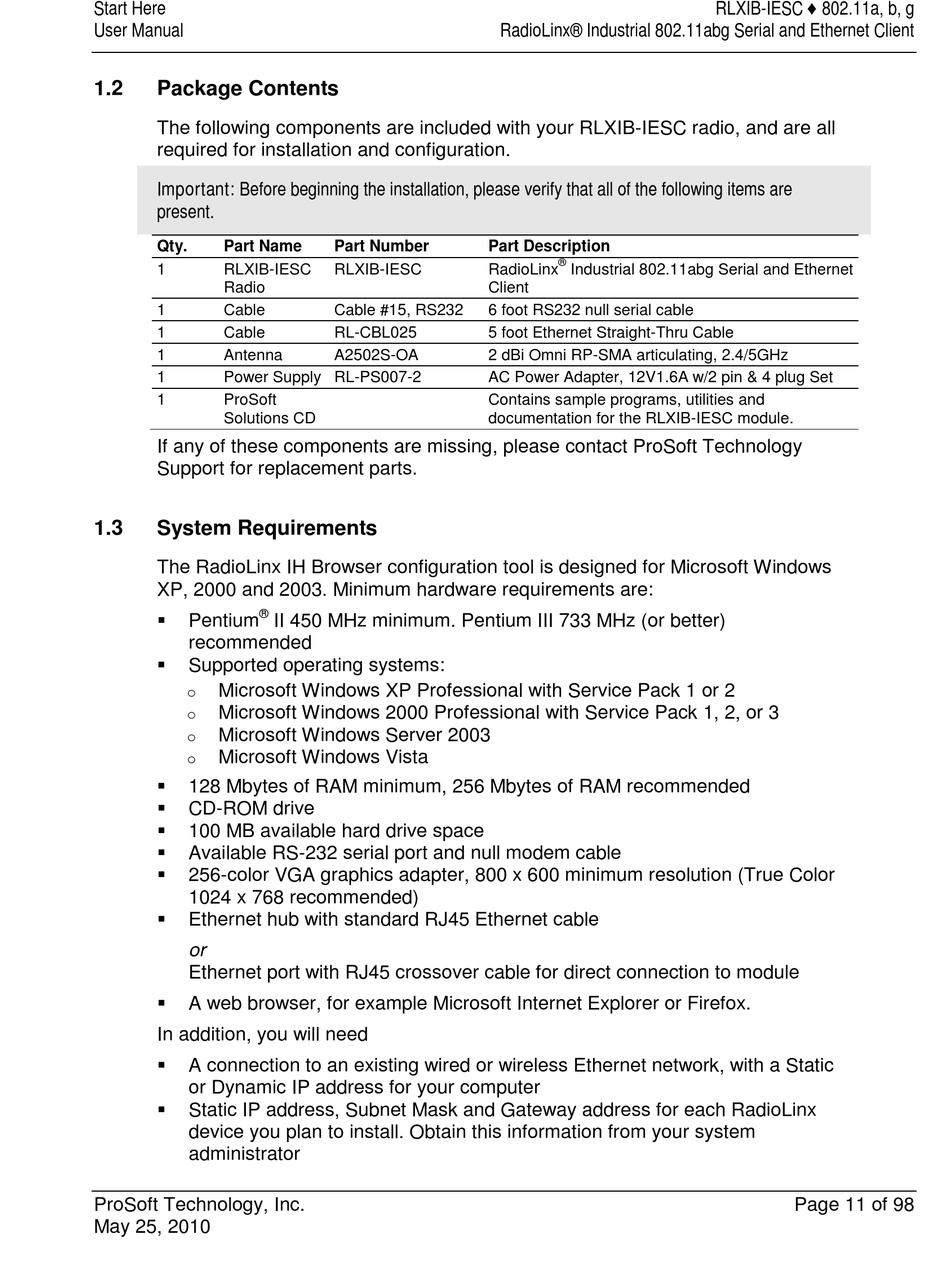

Package Contents

The following components are included with your RLXIB-IESC radio, and are all
required for installation and configuration.
Important: Before beginning the installation, please verify that all of the following items are
present.
Qty. Part Name
1 RLXIB-IESC
Radio
1 Cable
1 Cable
1 Antenna
1 Power Supply RL-PS007-2
1 ProSoft
Solutions CD
If any of these components are missing, please contact ProSoft Technology
Support for replacement parts.
1.3

System Requirements

The RadioLinx IH Browser configuration tool is designed for Microsoft Windows
XP, 2000 and 2003. Minimum hardware requirements are:
 ®
Pentium
recommended

Supported operating systems:
Microsoft Windows XP Professional with Service Pack 1 or 2
o
Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o
Microsoft Windows Server 2003
o
Microsoft Windows Vista
o

128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended

CD-ROM drive

100 MB available hard drive space

Available RS-232 serial port and null modem cable

256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color
1024 x 768 recommended)

Ethernet hub with standard RJ45 Ethernet cable
or
Ethernet port with RJ45 crossover cable for direct connection to module

A web browser, for example Microsoft Internet Explorer or Firefox.
In addition, you will need

A connection to an existing wired or wireless Ethernet network, with a Static
or Dynamic IP address for your computer

Static IP address, Subnet Mask and Gateway address for each RadioLinx
device you plan to install. Obtain this information from your system
administrator
ProSoft Technology, Inc.
May 25, 2010
Part Number
RLXIB-IESC
Cable #15, RS232
RL-CBL025
A2502S-OA
II 450 MHz minimum. Pentium III 733 MHz (or better)
RadioLinx® Industrial 802.11abg Serial and Ethernet Client
Part Description
®
RadioLinx Industrial 802.11abg Serial and Ethernet
Client
6 foot RS232 null serial cable
5 foot Ethernet Straight-Thru Cable
2 dBi Omni RP-SMA articulating, 2.4/5GHz
AC Power Adapter, 12V1.6A w/2 pin & 4 plug Set
Contains sample programs, utilities and
documentation for the RLXIB-IESC module.
RLXIB-IESC ♦ 802.11a, b, g
Page 11 of 98
