Radio Status

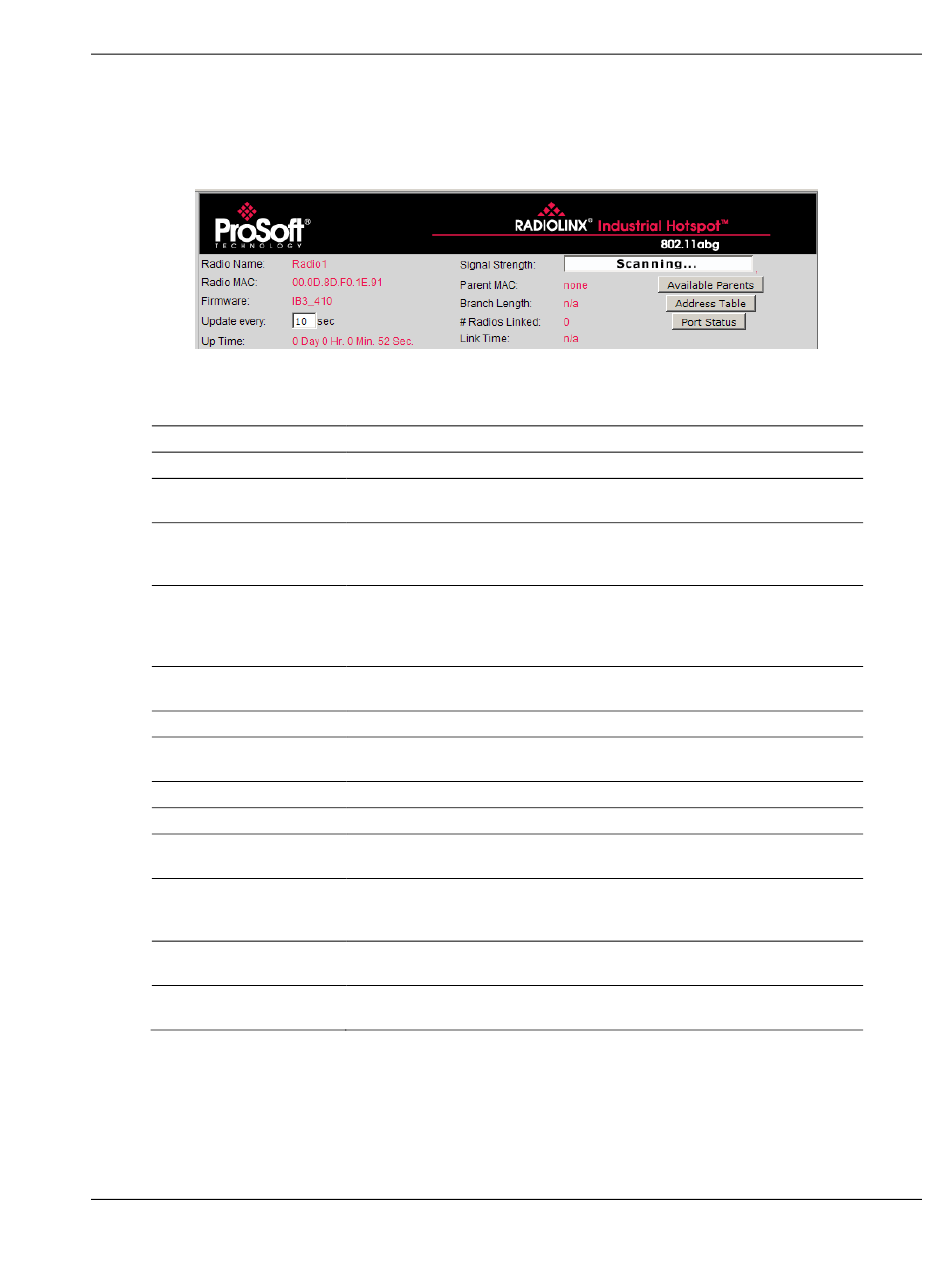

The following fields appear in the status area at the top of the Radio
Configuration window.
Use the settings in the Radio Status panel to view the current settings for this
radio.
Field
Radio Name
Radio MAC
Firmware
Update every
Up Time
Signal Strength
Parent MAC
Branch Length
# Radios Linked
Link Time
Available Parents
Address Table
Port Status
ProSoft Technology, Inc.
May 25, 2010
RadioLinx® Industrial 802.11abg Serial and Ethernet Client
Description
The name of the selected radio.
The MAC address of the selected radio. The MAC ID is also printed on
the side of the radio.
The version of firmware currently installed. All radios on the network
must have the same firmware versions installed. For more information
on firmware versions, refer to Update firmware (page 62).
This value in seconds controls how often the web configuration form
automatically refreshes. To change the value temporarily, enter the new
value and press the [Tab] key. To change the value permanently, enter
the new value and press the [Enter] key.
The length of time the radio has operated since the last system power-
up or last system reset.
Strength of the signal from the Parent radio.
The MAC address of the parent radio to which the selected radio is
linked.
The number of RF links from the radio to the master radio.
The number of other radios that are linked to this radio.
The length of time the radio has been continuously connected to a
parent radio.
Click this button to view the list of Access Points (Parents) from which
this radio can detect beacons. This button is only available when the
radio type is Repeater.
Click this button to view a list of MAC addresses for devices entered in
the radio's address table.
Click this button to view spanning tree status of each switch port, for RF
ports and the RJ45 (Ethernet) port.
