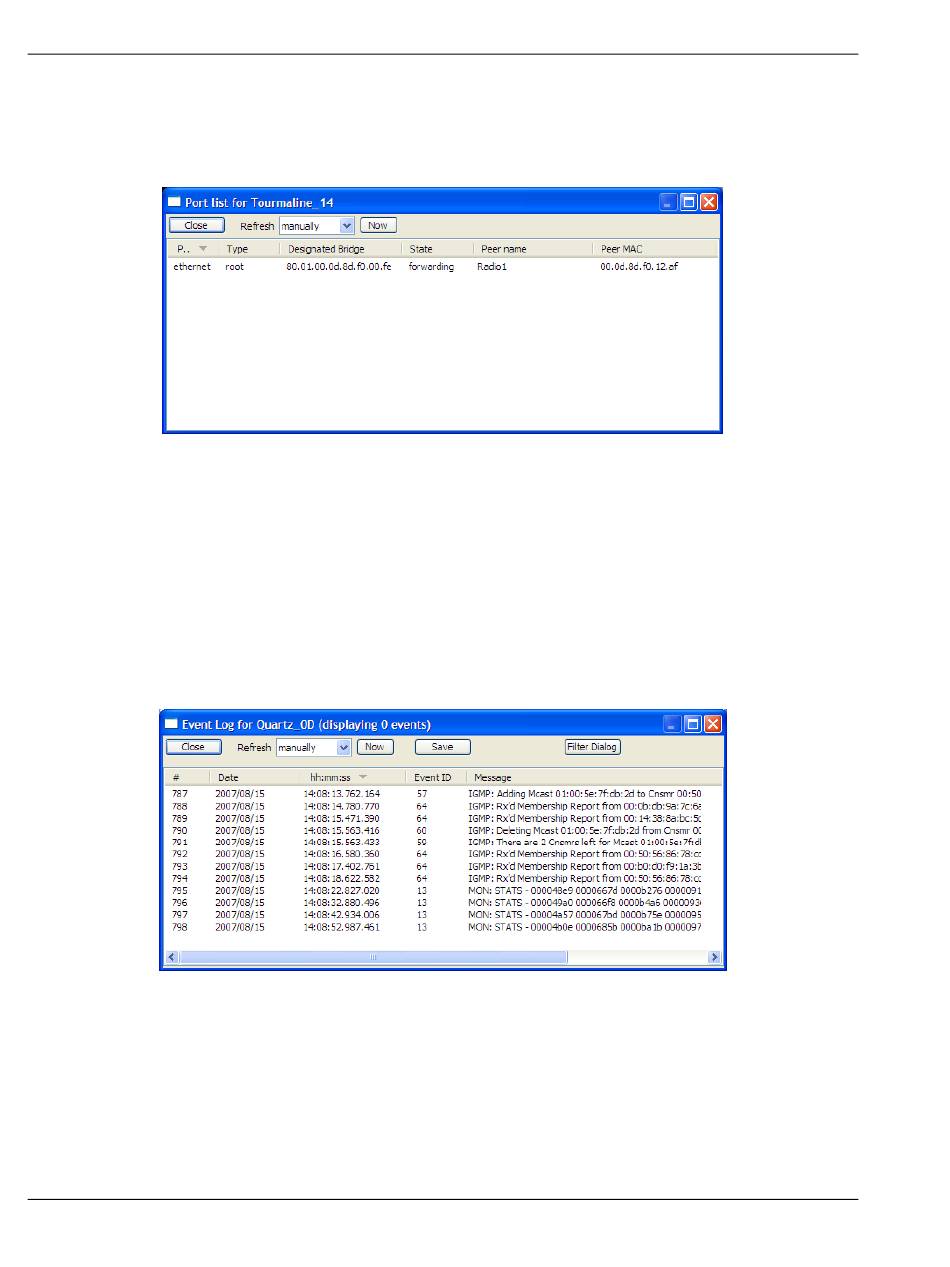

5.4.4 Port Table
This dialog box opens when you open the AP Dialogs menu and choose Port
Table.
The port table is a list of all the active ports on the radio. This list shows the same
information as the Port status (page 39) list in the Radio Configuration /
Diagnostic Utility. Each radio can have up to 34 active ports—one Ethernet
cable, one parent RF link, and up to 32 child RF links.
5.4.5 Event Log
The event log allows you to extract a log from the selected radio. The log shows
a history of the radio. You can save the event log to a file for troubleshooting
purposes.
