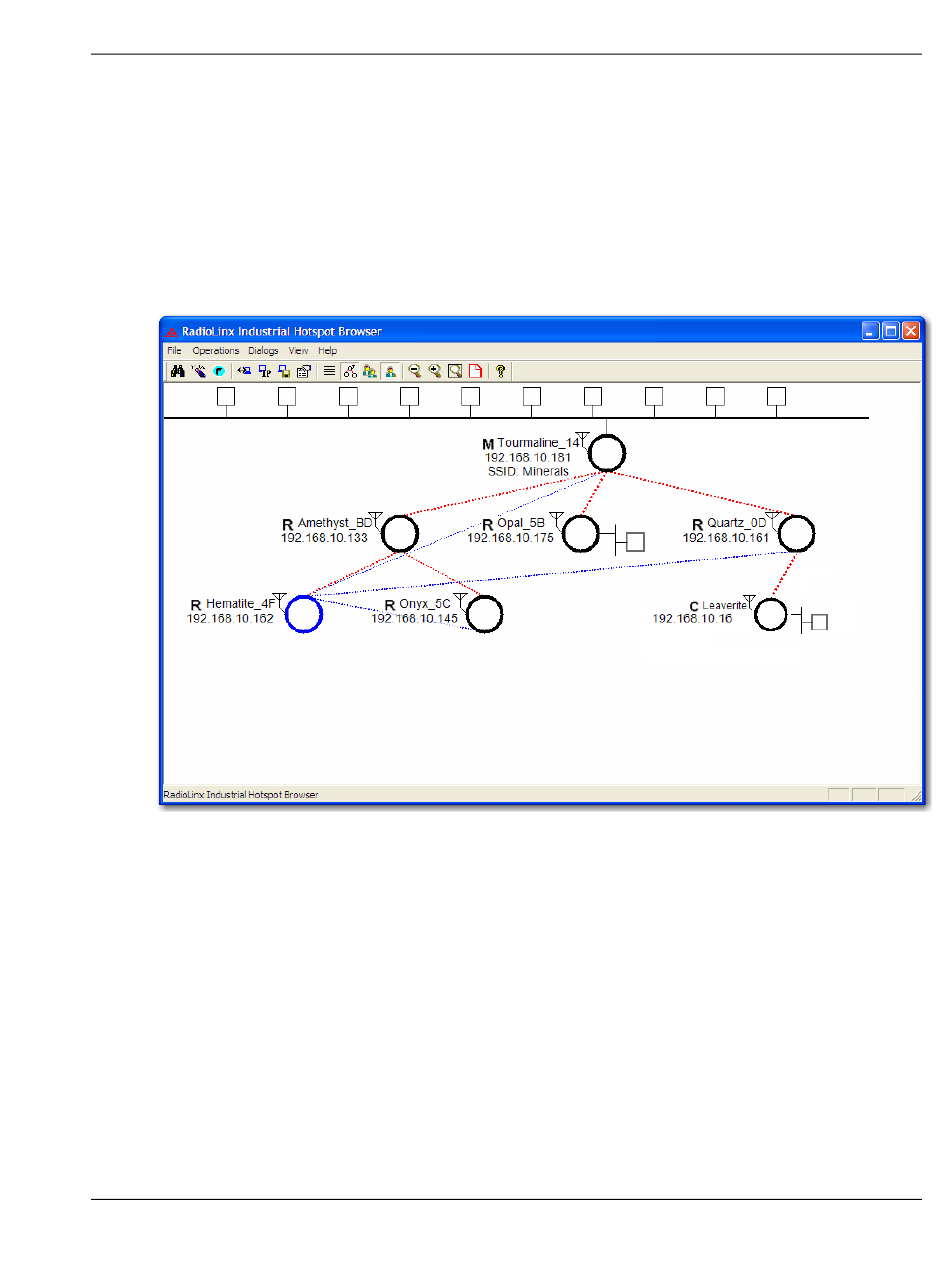

The following illustration shows the RadioLinx Industrial Hotspot Browser (page
57) application provided with the radios. Notice it shows the radio named
Hermatite_4F, linked to Amethyst_BD. This link is shown with a red dotted line.
Also visible is the level of redundancy in their network. Each of the blue lines
represents an alternate parent. From this view, you can easily tell how much
redundancy exists in their network.
To display the redundant paths, select the toolbar button denoting two "parents."
To view the redundancy on a per-radio basis, select the single "parent" button,
and then click on the radio to view its available redundancies.
