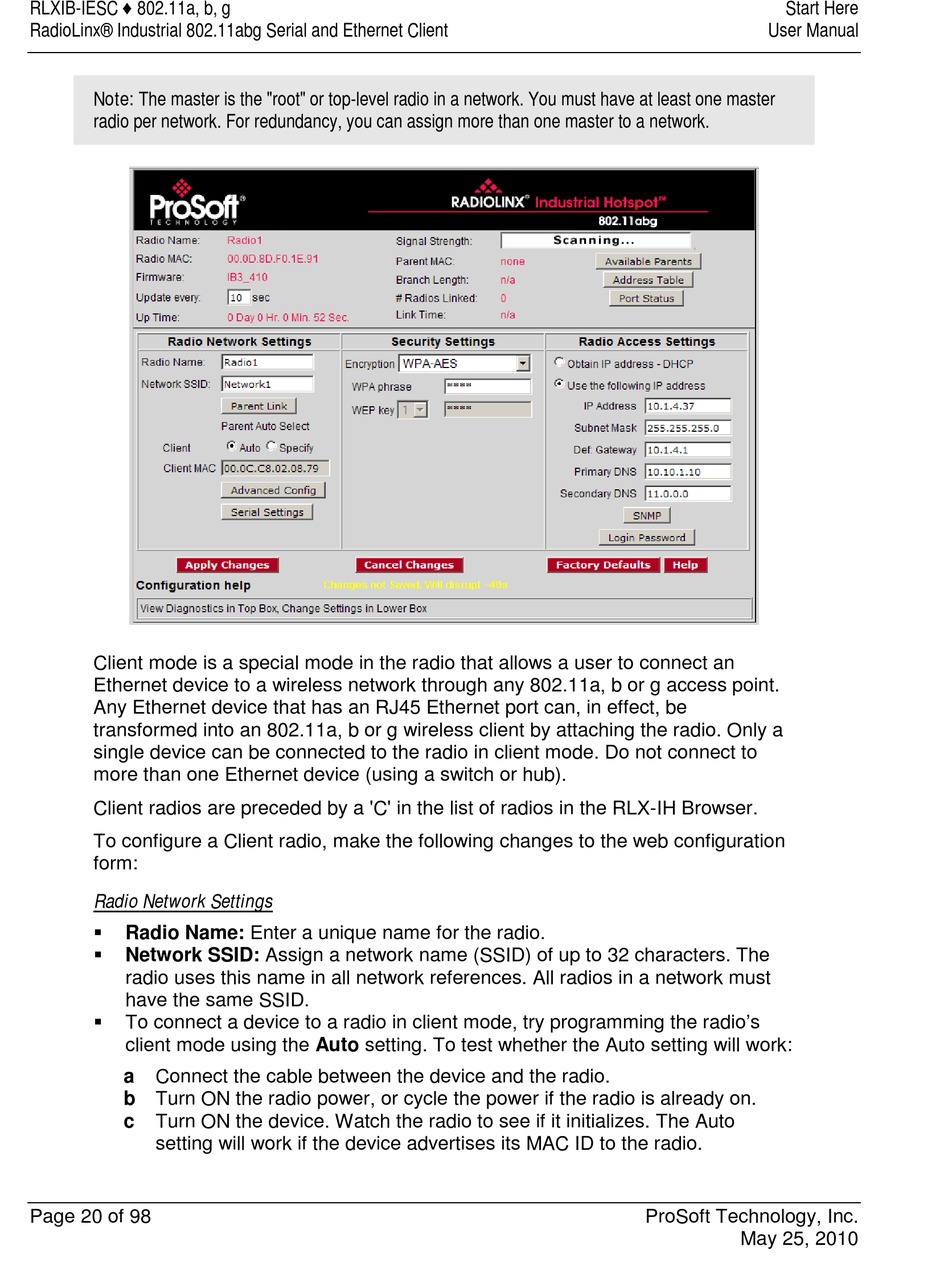

ProSoft RadioLinx RLXIB-IESC User Manual page 20

RLXIB-IESC ♦ 802.11a, b, g
RadioLinx® Industrial 802.11abg Serial and Ethernet Client
Note: The master is the "root" or top-level radio in a network. You must have at least one master
radio per network. For redundancy, you can assign more than one master to a network.
Client mode is a special mode in the radio that allows a user to connect an
Ethernet device to a wireless network through any 802.11a, b or g access point.
Any Ethernet device that has an RJ45 Ethernet port can, in effect, be
transformed into an 802.11a, b or g wireless client by attaching the radio. Only a
single device can be connected to the radio in client mode. Do not connect to
more than one Ethernet device (using a switch or hub).
Client radios are preceded by a 'C' in the list of radios in the RLX-IH Browser.
To configure a Client radio, make the following changes to the web configuration
form:
Radio Network Settings

Radio Name: Enter a unique name for the radio.

Network SSID: Assign a network name (SSID) of up to 32 characters. The
radio uses this name in all network references. All radios in a network must
have the same SSID.

To connect a device to a radio in client mode, try programming the radio's
client mode using the Auto setting. To test whether the Auto setting will work:
a Connect the cable between the device and the radio.
b Turn ON the radio power, or cycle the power if the radio is already on.
c Turn ON the device. Watch the radio to see if it initializes. The Auto
setting will work if the device advertises its MAC ID to the radio.
Page 20 of 98
Start Here
User Manual
ProSoft Technology, Inc.
May 25, 2010
