Purpose Of The Manual; Additional Resources - Danfoss VLT AutomationDrive Operating Instructions Manual

Introduction

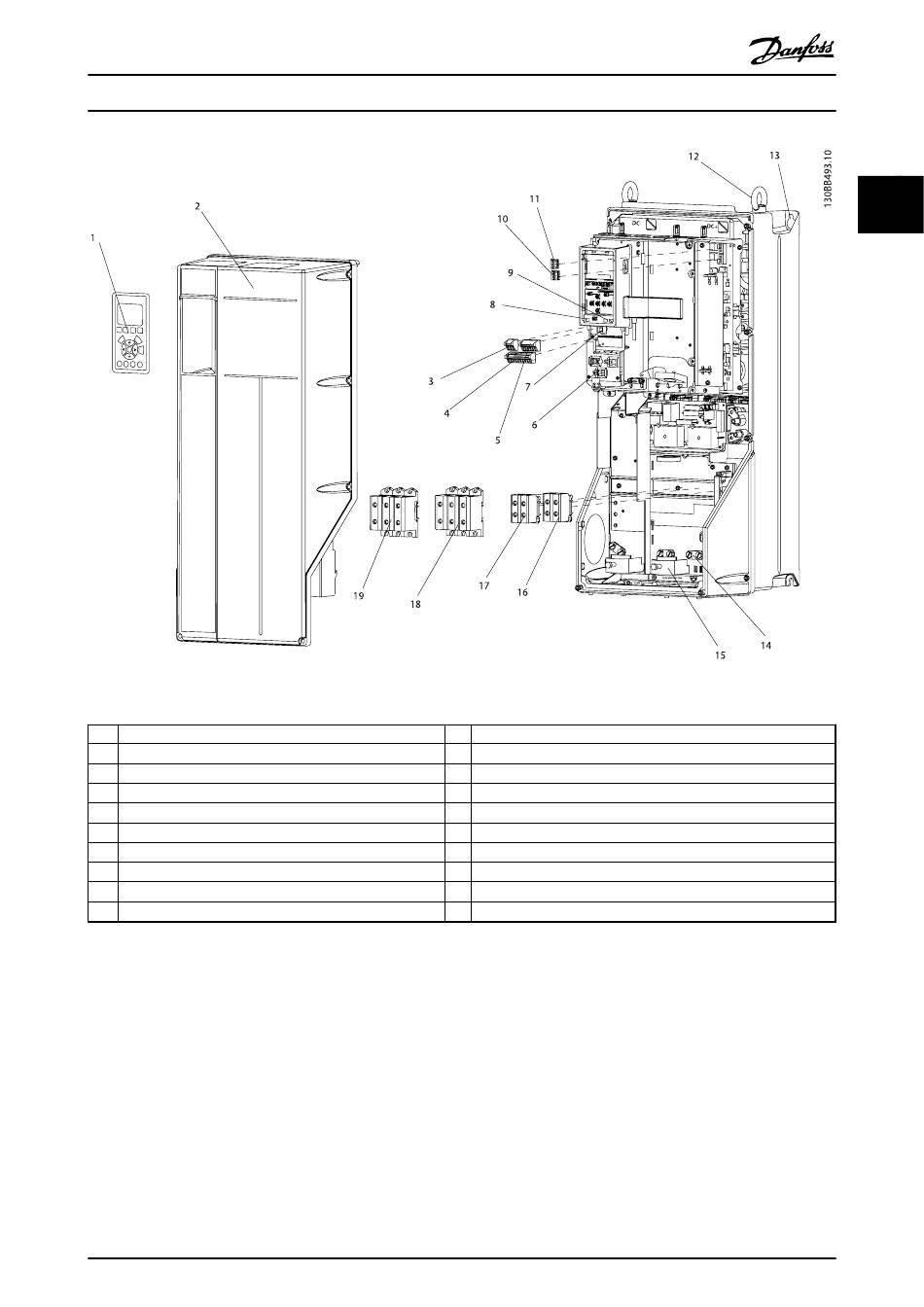

Illustration 1.2 Exploded View B and C Sizes, IP55/66
1 LCP
2 Cover
3 RS-485 serial bus connector
4 Digital I/O and 24 V power supply
5 Analog I/O connector
6 Cable strain relief / PE ground
7 USB connector
8 Serial bus terminal switch
9 Analog switches (A53), (A54)
10 Relay 1 (01, 02, 03)

1.1 Purpose of the Manual

This manual is intended to provide detailed information for
the installation and start up of the frequency converter.
Chapter 2 Installation provides requirements for mechanical
and electrical installation, including input, motor, control and
serial communications wiring, and control terminal
functions. Chapter 3 Start Up and Functional Testing provides
detailed procedures for start up, basic operational
programming, and functional testing. The remaining
chapters provide supplementary details. These include user
interface, detailed programming, application examples, start-
up troubleshooting, and specifications.
®
VLT AutomationDrive Operating
Instructions
11 Relay 2 (04, 05, 06)
12 Lifting ring
13 Mounting slot
14 Grounding clamp (PE)
15 Cable strain relief / PE ground
16 Brake terminal (-81, +82)
17 Load sharing terminal (DC bus) (-88, +89)
18 Motor output terminals 96 (U), 97 (V), 98 (W)
19 Mains input terminals 91 (L1), 92 (L2), 93 (L3)

1.2 Additional Resources

Other resources are available to understand advanced
frequency converter functions and programming.
®
MG.33.AJ.02 - VLT is a registered Danfoss trademark
•
The Programming Guide provides greater detail in
how to work with parameters and many
application examples.
•
The Design Guide is intended to provide detailed
capabilities and functionality to design motor
control systems.
