Application Set-Up Examples

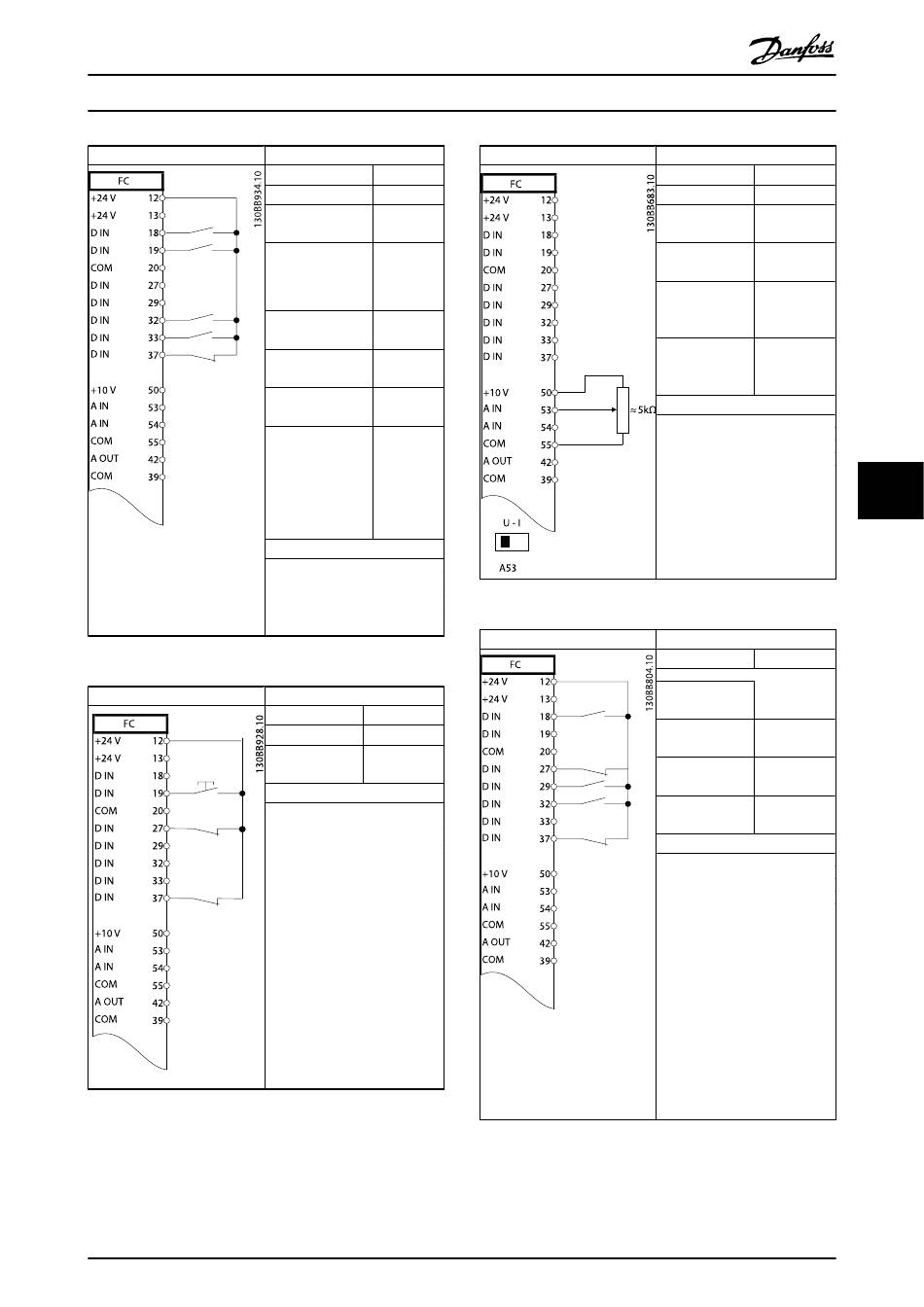

Table 6.7 Start/Stop with Reversing and 4 Preset Speeds
Table 6.8 External Alarm Reset
®
VLT AutomationDrive Operating
Instructions
Parameters
Function Setting
5-10 Terminal 18 [8] Start
Digital Input
5-11 Terminal 19 [10]
Digital Input Reversing*
5-12 Terminal 27 [0] No
Digital Input operation
5-14 Terminal 32 [16] Preset
Digital Input ref bit 0
5-15 Terminal 33 [17] Preset
Digital Input ref bit 1
3-10 Preset
Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
* = Default Value
Notes/comments:
Parameters
Function Setting
5-11 Terminal 19 [1] Reset
Digital Input
* = Default Value
Notes/comments:
®
MG.33.AJ.02 - VLT is a registered Danfoss trademark
6-10 Terminal 53
Low Voltage
6-11 Terminal 53
High Voltage
6-14 Terminal 53
Low Ref./Feedb.
Value
6-15 Terminal 53
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
Table 6.9 Speed Reference (using a manual potentiometer)
5-10 Terminal 18
Digital Input
5-12 Terminal 27
Digital Input
5-13 Terminal 29
Digital Input
5-14 Terminal 32
Digital Input
* = Default Value
Notes/comments:
Table 6.10 Speed Up/Down
Parameters
Function Setting
0.07V*
10V*
0RPM
1500RPM
Parameters
Function Setting
[8] Start*
[19] Freeze
Reference
[21] Speed Up
[22] Speed
Down
43
