Danfoss VLT AutomationDrive Operating Instructions Manual page 44

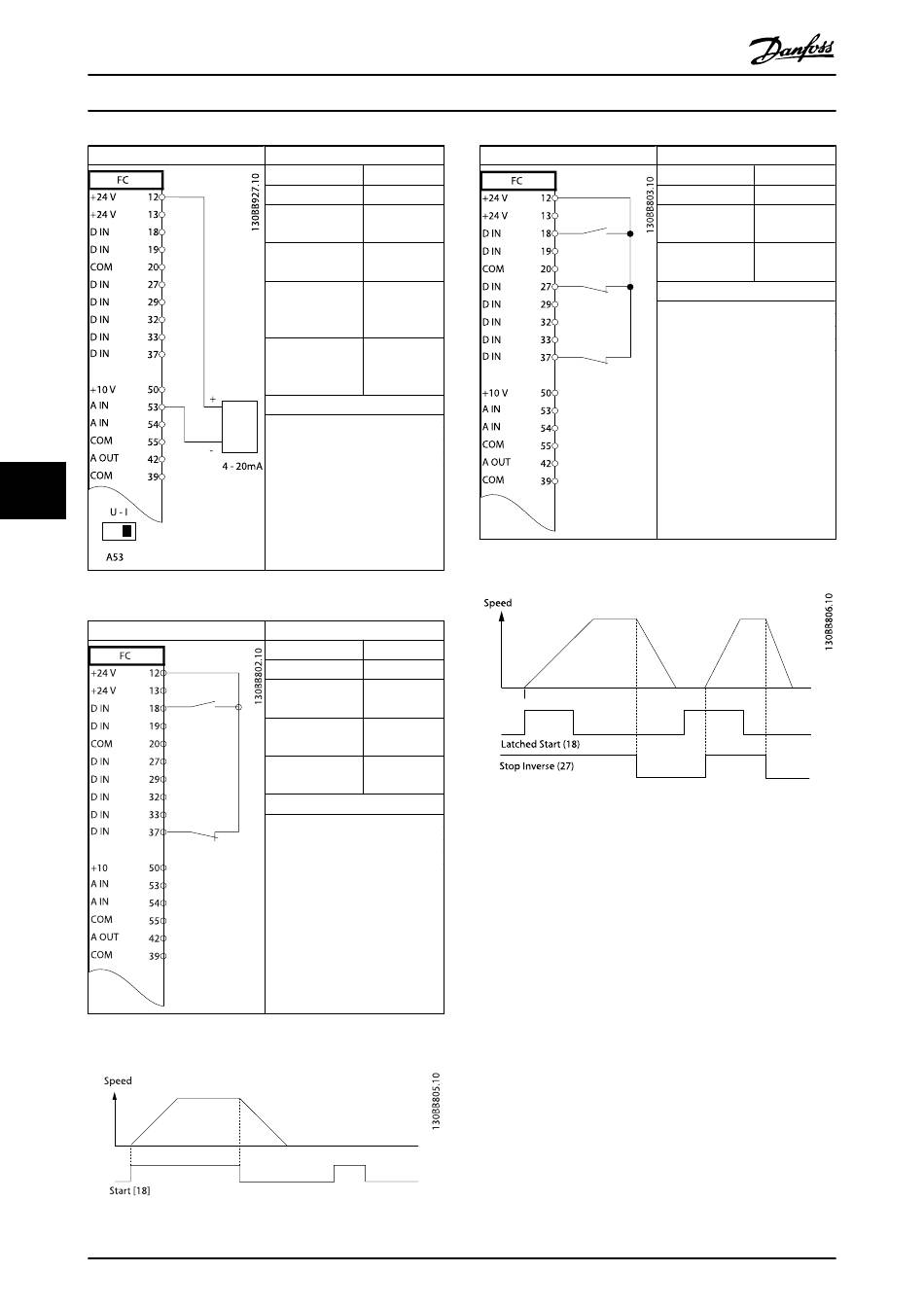

Application Set-Up Examples
6 6
Table 6.4 Analog Speed Reference (Current)
Table 6.5 Start/Stop Command with Safe Stop
42
®
VLT AutomationDrive Operating
Instructions
Parameters
Function Setting
6-12 Terminal 53 4mA*
Low Current
6-13 Terminal 53 20mA*
High Current
6-14 Terminal 53 0RPM
Low Ref./Feedb.
Value
6-15 Terminal 53 1500RPM
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
Parameters
Function Setting
5-10 Terminal 18 [8] Start*
Digital Input
5-12 Terminal 27 [0] No
Digital Input operation
5-19 Terminal 37 [1] Safe Stop
Safe Stop Alarm
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input is
set to [0] No operation, a jumper
wire to terminal 27 is not
needed.
®
MG.33.AJ.02 - VLT is a registered Danfoss trademark
5-10 Terminal 18
Digital Input
5-12 Terminal 27
Digital Input
* = Default Value
Notes/comments:
If 5-12 Terminal 27 Digital Input is
set to [0] No operation, a jumper
wire to terminal 27 is not
needed.
Table 6.6 Pulse Start/Stop
Parameters
Function Setting
[9] Latched
Start
[6] Stop
Inverse
