Installation

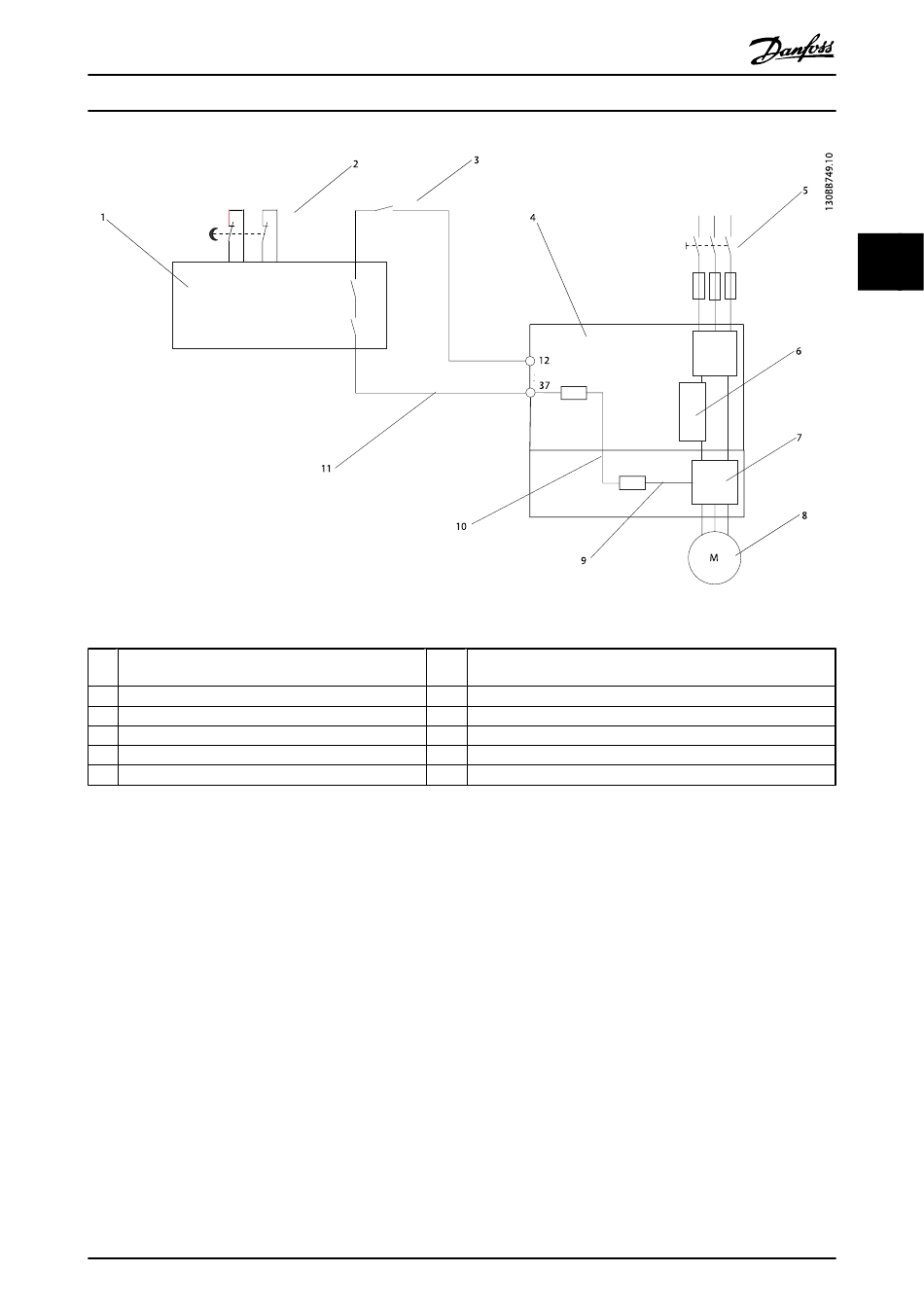

Illustration 2.16 Installation to Achieve a Stopping Category 0 (EN 60204-1) with Safety Cat. 3 (EN 954-1) / PL "d" (ISO 13849-1).
1 Safety device Cat. 3 (circuit interrupt device, possibly with
release input)
2 Door contact
3 Contactor (Coast)
4 Frequency converter
5 Mains
6 Control board
Safe Stop Commissioning Test
After installation and before first operation, perform a commissioning test of the installation making use of safe stop. Moreover,
perform the test after each modification of the installation.
®
VLT AutomationDrive Operating
Instructions
7 Inverter
8 Motor
9 5V DC
10 Safe channel
11 Short-circuit protected cable (if not inside installation cabinet)
®
