Wiring the Elevator Restriction Unit
The Elevator Restriction Backplane use a ribbon cable to connect to the Elevator
Restriction Main Controller board.
The Elevator Restriction Controller has eight sockets for the 2012E Relay
Boards.
6.3.1
Elevator Controller Board

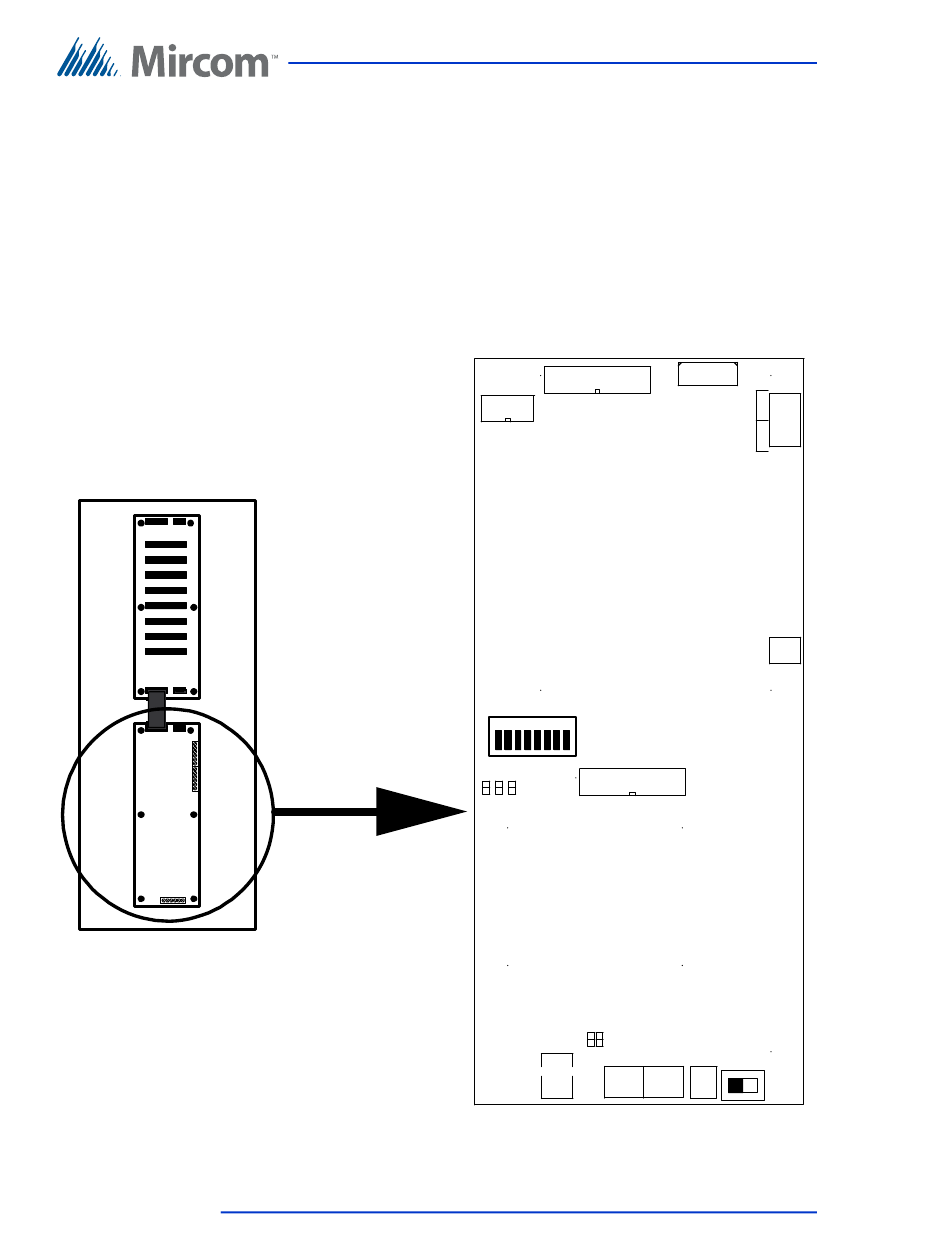

Figure 52 shows the general layout of the Elevator Controller board components.
TX3-ER-8 Elevator
Restriction Unit
Figure 52. Elevator Controller Board
96 (119)
Telephone Access System Installation and Operation Manual
LT-969
Copyright January 2017
Elevator Restriction Unit Installation and Configuration
P6
P5
SW2
8
1
JW3
JW4 JW2
JW1 JW5
USB
RS-485 Terminals
P4
R
Res.
T
R
Co.
T
R
T
P3
16V AC
IN
ON OFF
SW1
Version 3.7
