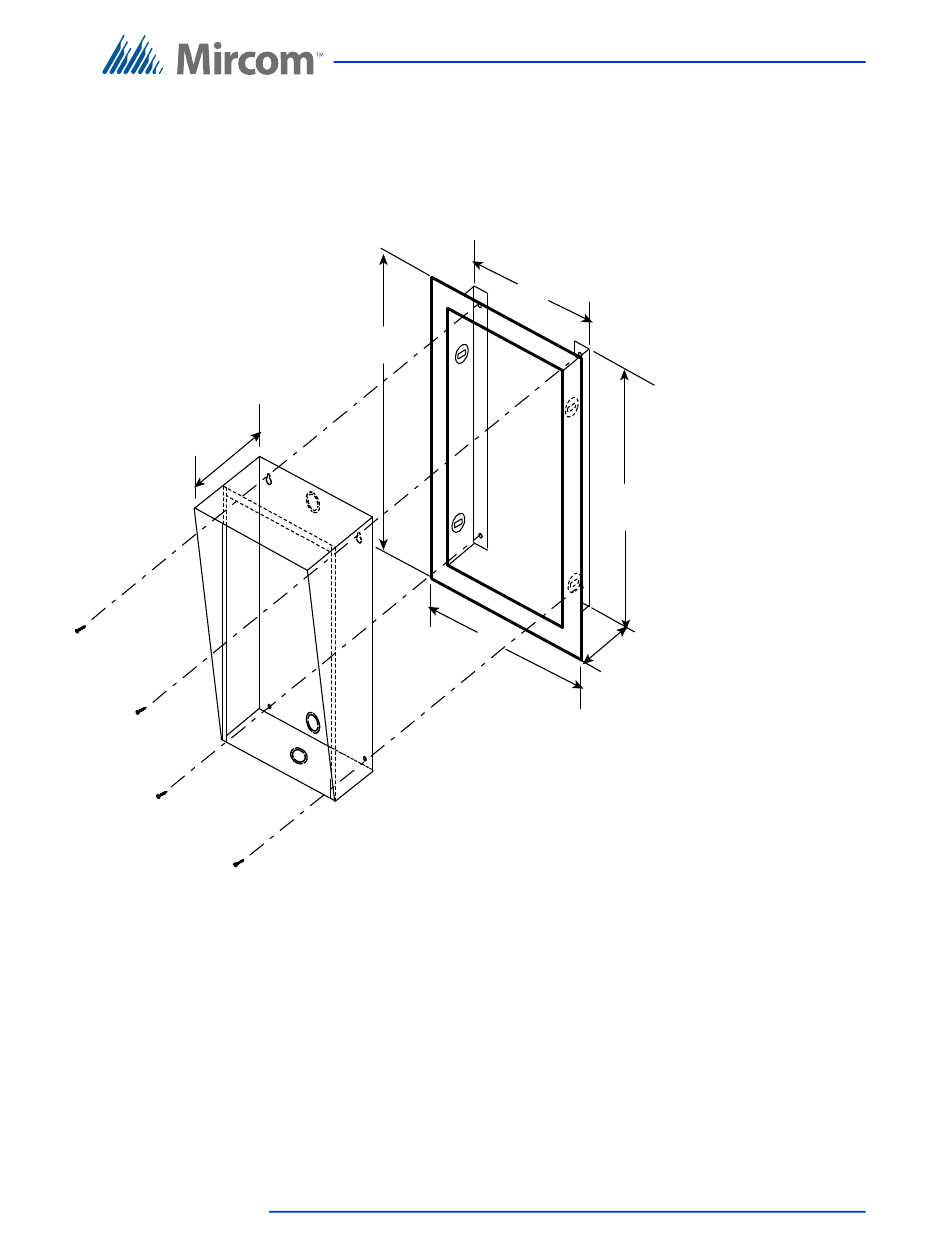

Figure 2 Tx3-Usft Slim Line Universal Flush Trim Ring - Mircom TX3 Series Installation And Operation Manual

2.2.2 Installing the Universal Slim-line enclosure
The Universal enclosure mounts inside the wall with or without the Universal
Series Flush Trim Ring TX3-USFT. The Trim Ring houses the universal series
enclosure as shown in Figure 2
4 1/2 "
Figure 2.
To install the Universal Slim-line enclosure with or without the Flush
Trim Ring
1.
Telephone Access System Installation and Operation Manual
Version 3.7
LT-969 Copyright January 2017
19 "
5/8
8
7/8
UNIVERSAL SLIM
LINE ENCLOSURE
TX3-USFT Slim Line Universal Flush Trim Ring
Follow the instructions in section 2.2.1 using the Universal Slim-line
enclosure.
6 "
13/32
16 "
1/4
"
2 "
3/4
TX3-USFT SLIM LINE
SEMI-FLUSH TRIM
Dimension of the Universal Slim Line Enclosure
without the flush trim is:
16.25" H x 6.4" W x 2.75"D at bottom, 3" D at top
Enclosure Installation
