Figure 10 Base Plate Mounting Holes; Figure 11 Base Plate Dimensions (Inches) - Mircom TX3 Series Installation And Operation Manual

6.
7.
8.
9.
Telephone Access System Installation and Operation Manual
Version 3.7
LT-969 Copyright January 2017

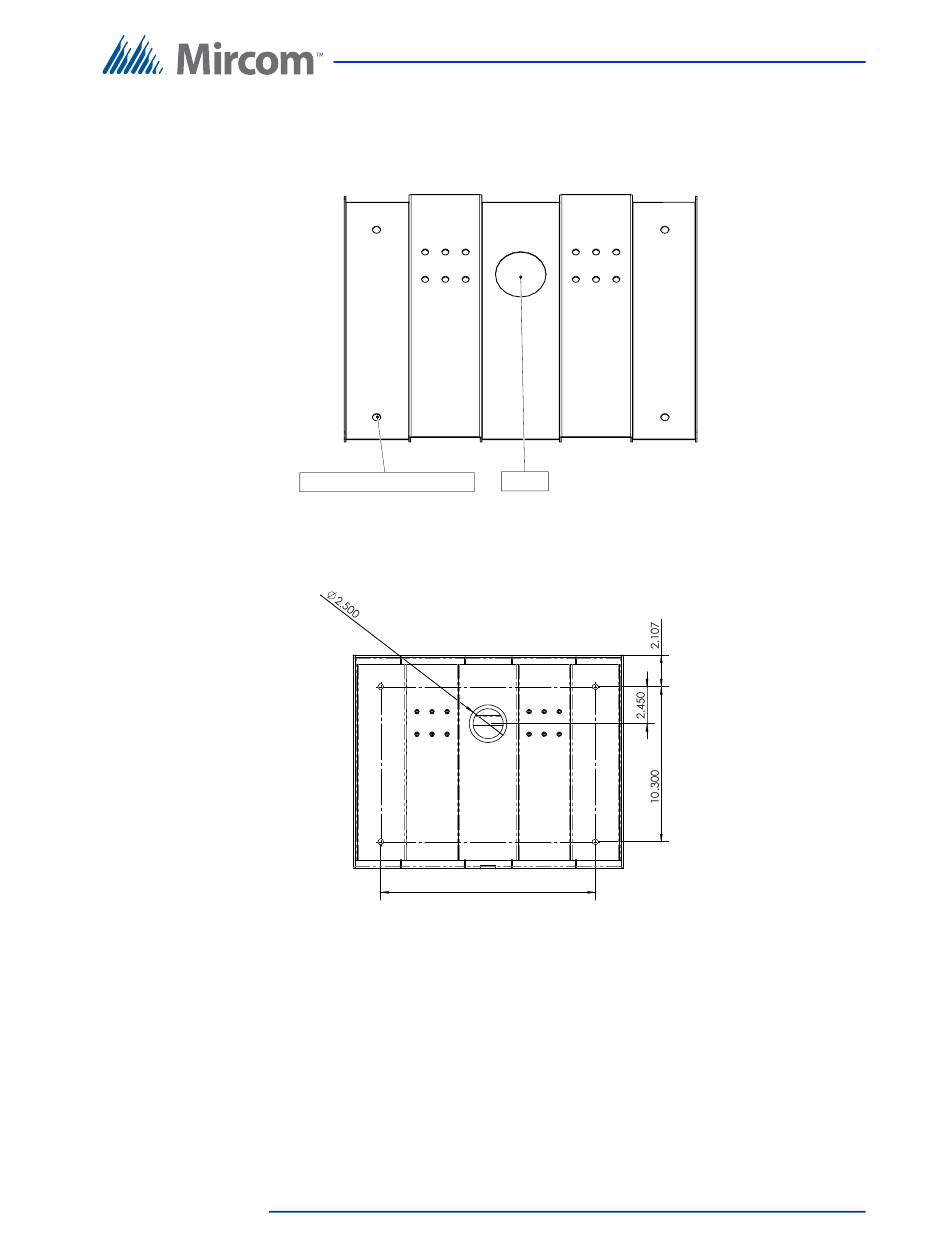

Using the Kiosk base plate as a template, trace an opening in the floor for
the cutout and mark the 4 base plate mounting hole locations as shown in
Figure 10. Ensure that the base plate is aligned with the electrical conduit.
Base plate mounting holes (x4)
Figure 10
Figure 11 shows the dimensions of the base plate.
14.244
Figure 11
Cut an opening in the floor for the electrical and communication cables.
Run the wires through the base plate opening.
Secure the base plate to the floor using 4 bolts in the base plate mounting
holes shown in Figure 10. The holes are 0.406" in diameter.
Cutout
Base Plate Mounting Holes
Base Plate Dimensions (inches)
Enclosure Installation
33 (119)
