To install the Touch Screen Kiosk base plate
1.
2.
3.
4.
Telephone Access System Installation and Operation Manual
Version 3.7
LT-969
Copyright January 2017
Find a suitable location for the Kiosk next to the building entrance and
above the building electrical and communications conduit.
Remove the door from the Kiosk.

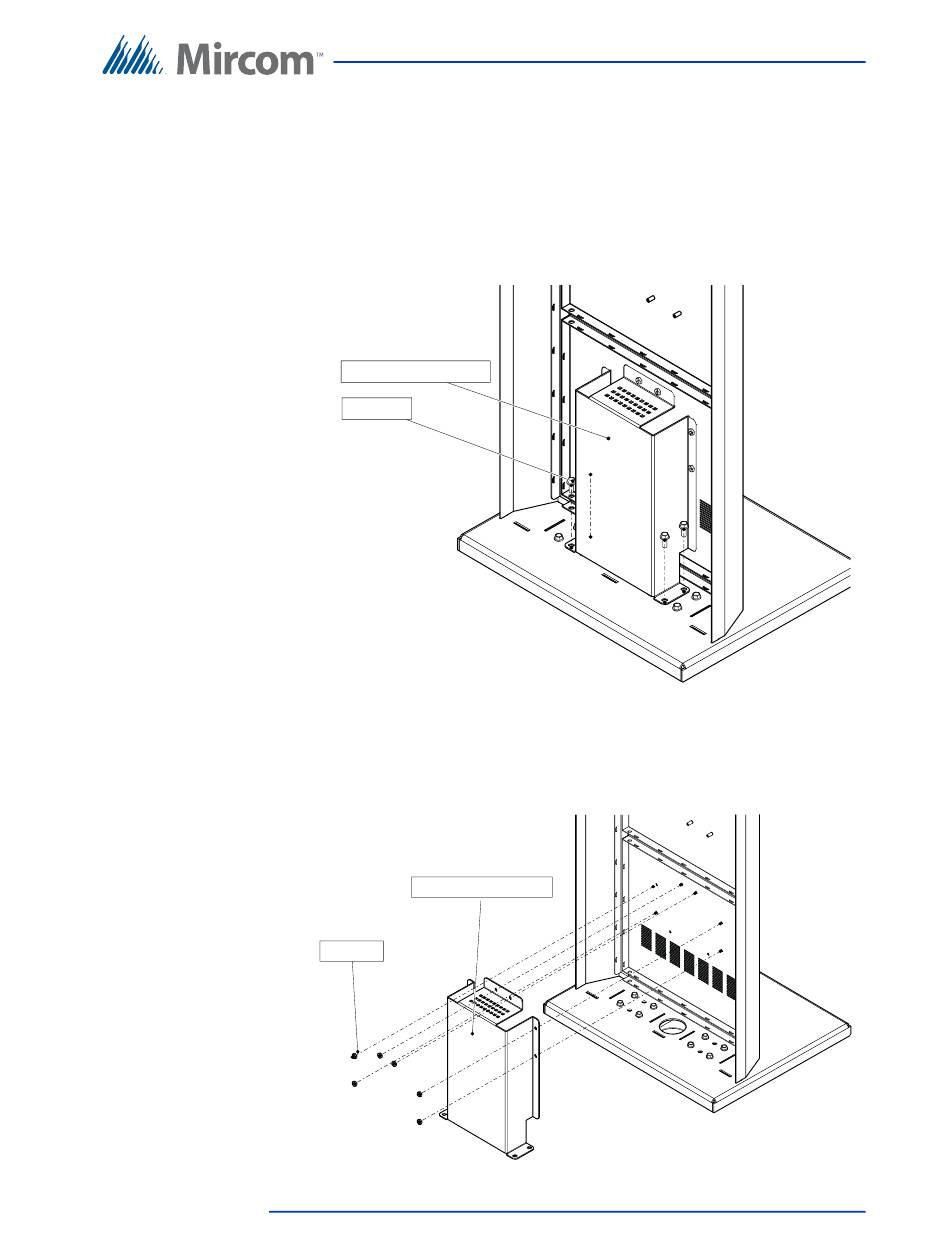

Remove the 4 bolts from the reinforcement bracket, as shown in Figure 6
Reinforcement Bracket
Bolts (x4)
Figure 6
Reinforcement Bracket with bolts
Remove the 6 nuts on the reinforcement bracket, as show in Figure 7, and
then remove the bracket.
Reinforcement Bracket
Nuts (x6)
Enclosure Installation
31 (119)
