ethernet TCP/IP network. If you connect directly to one of the Master Nodes
using USB, a modem, or a COM port, you will be able to configure that device but
not any other device.
Lobby Control Unit
(Master Node)

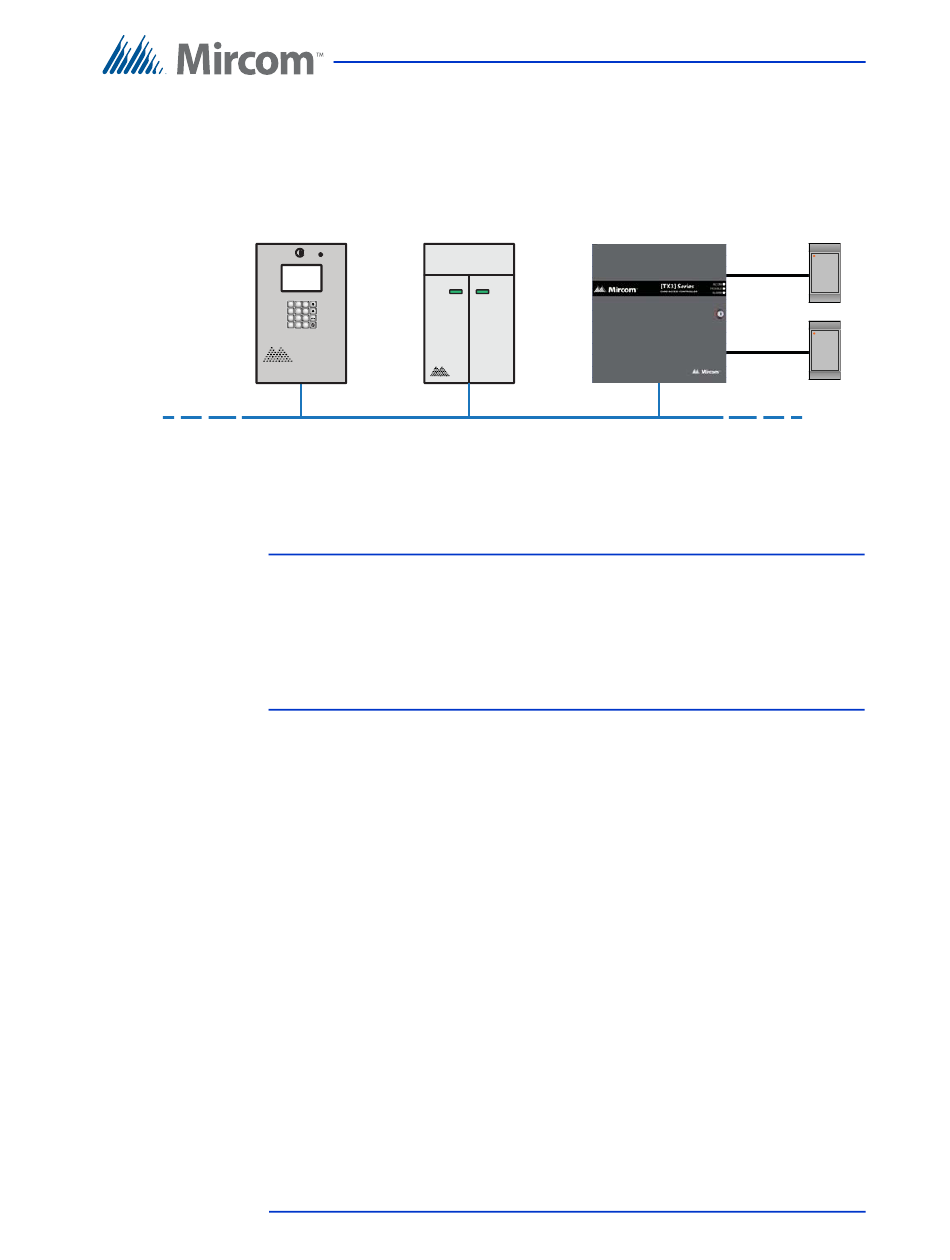

Figure 22. TX3 devices on an ethernet TCP/IP network.
Notes:
Telephone Access System Installation and Operation Manual
Version 3.7
LT-969
Copyright January 2017
Elevator Restriction Unit
(Master Node)
1
2
3
ABC
DEF
4
5
6
GHI
JKL
MNO
7
8
9
PQRS
TUV
WXYZ
*
#
0
Ethernet Network
In order for a panel to be a Master Node it must satisfy the following
conditions.
•
It must be IP capable. Panels that are IP capable are usually
denoted by a "-A" at the end of their model names.
•
If the panel is not a Touch Screen, it must have a TX3-IP IP
Module installed.
Card Access Controller
(Master Node)
TX3 System
Card Reader A
Card Reader B
45 (119)
