To fit the Touch Screen Kiosk on the base plate
1.
34 (119)
Telephone Access System Installation and Operation Manual
LT-969
Copyright January 2017

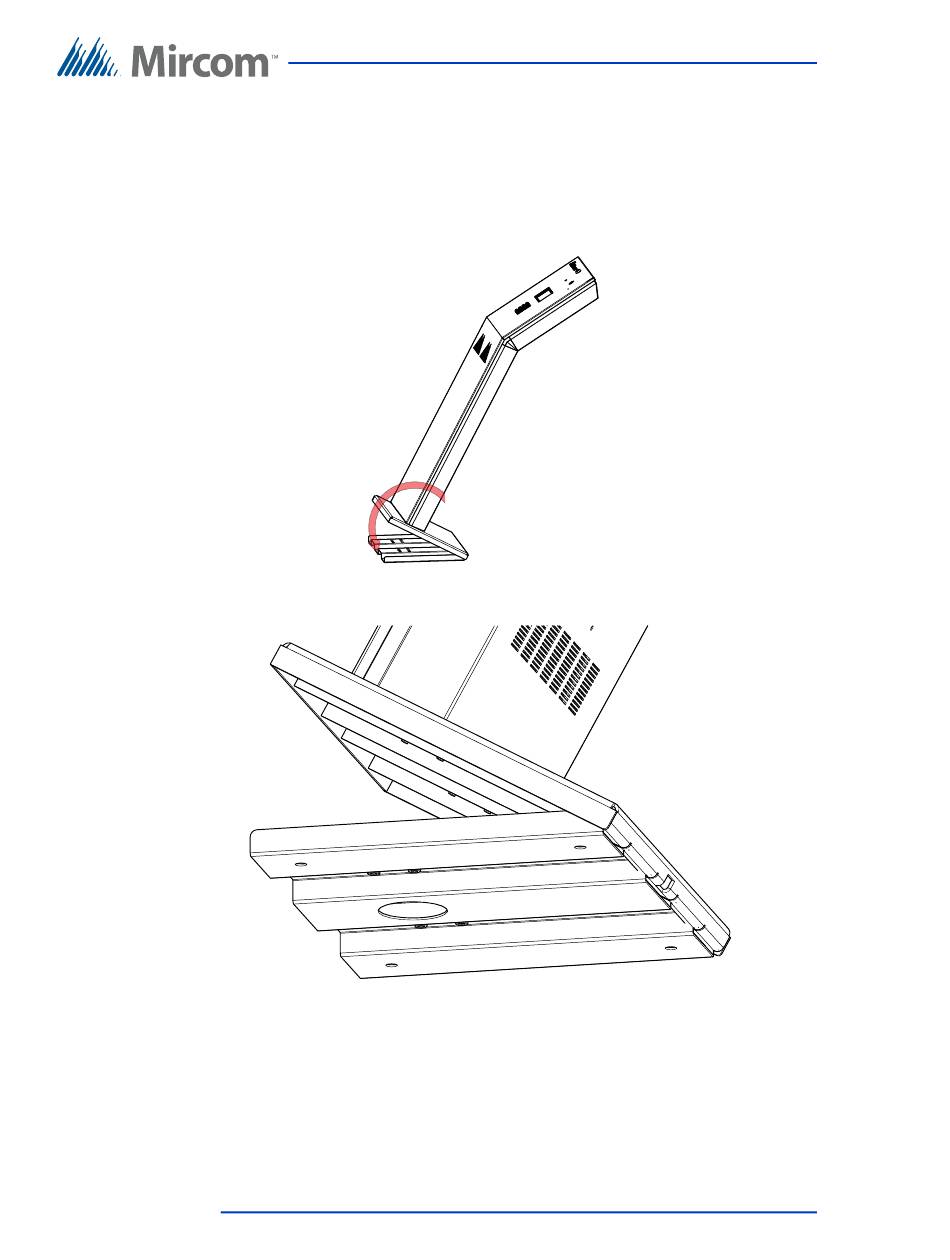

Fit the back lip of the Kiosk into the notches in the baseplate, and tilt the
Kiosk forwards so that it rests on top of the base plate.
Figure 12
Fitting the Kiosk on the Base Plate
Figure 13
Fitting the Kiosk on the Base Plate (from
below)
Enclosure Installation
Version 3.7
