4.5

TX3-IP IP Module

The TX3-IP IP Module connects the Lobby Control Unit to an ethernet TCP/IP
network. The TX3-IP IP Module ribbon cable connects to the P5 connector on the
controller board (see Figure 25). This allows you to configure and monitor the
TX3 devices on your system using a computer and an ethernet connection.
The IP Module has an RJ-45 connector that connects to the ethernet network
using a standard ethernet cable as shown in Figure 34.

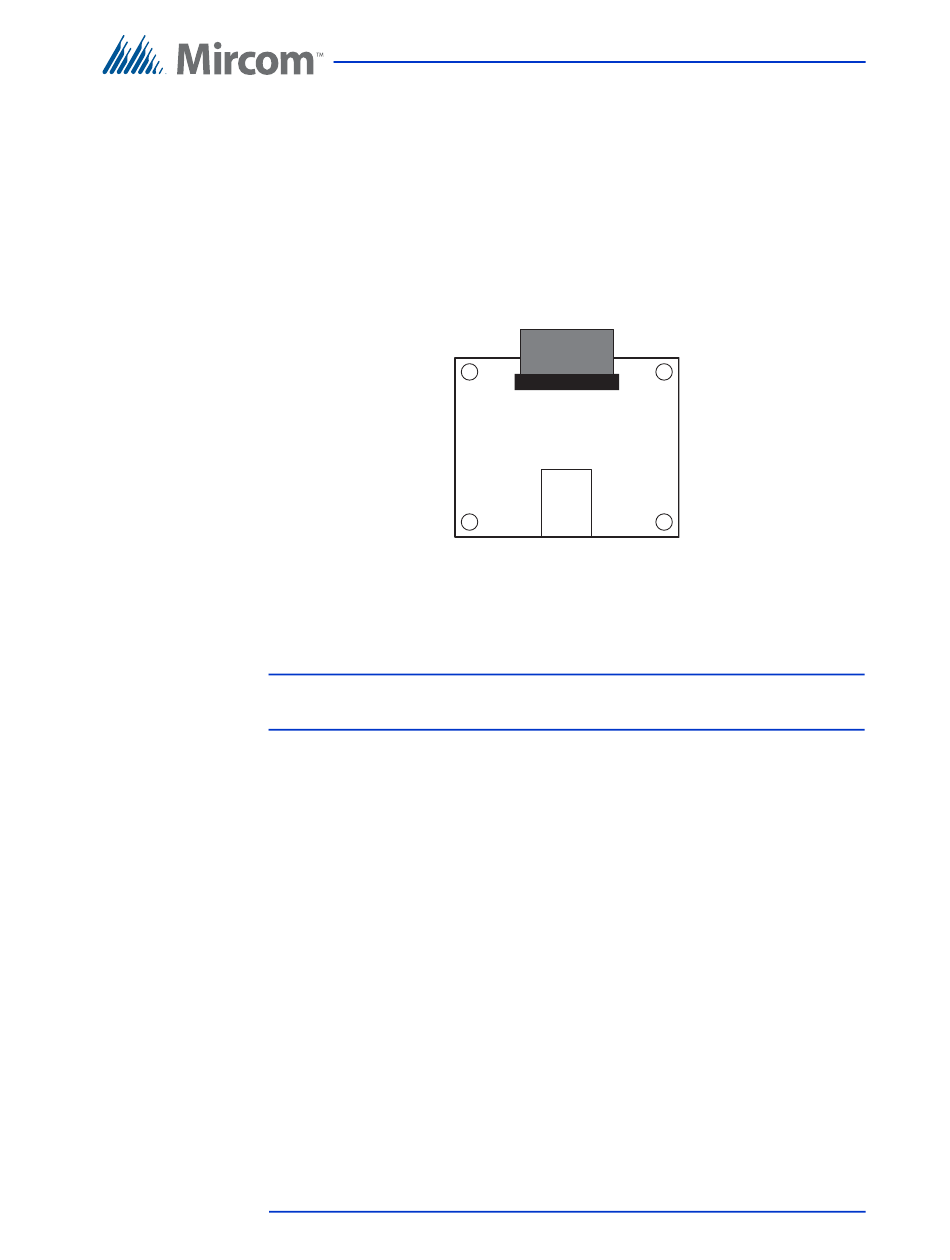

Figure 34. IP Module Data and Ethernet Connectors
For a description on how to install the IP Module, see LT-1161 TX3-IP IP
Module Installation Instructions.
Note:
4.6

RS-485 Add-on Module

The RS-485 Add-on Module converts RS-485 signals to USB and is part of the
USB to RS-485 Adapter (TX3-USB-AD). The RS-485 Add-on Module ribbon
cable connects to the P4 connector on the controller board. See Figure 25.
Telephone Access System Installation and Operation Manual
Version 3.7
LT-969 Copyright January 2017
IP Module Ribbon Cable
Connector
The TX3-IP IP Module can only be installed on models that end
with "-A" (for example, TX3-ER-8-A).
Lobby Control Unit Setup
RJ-45
59 (119)
