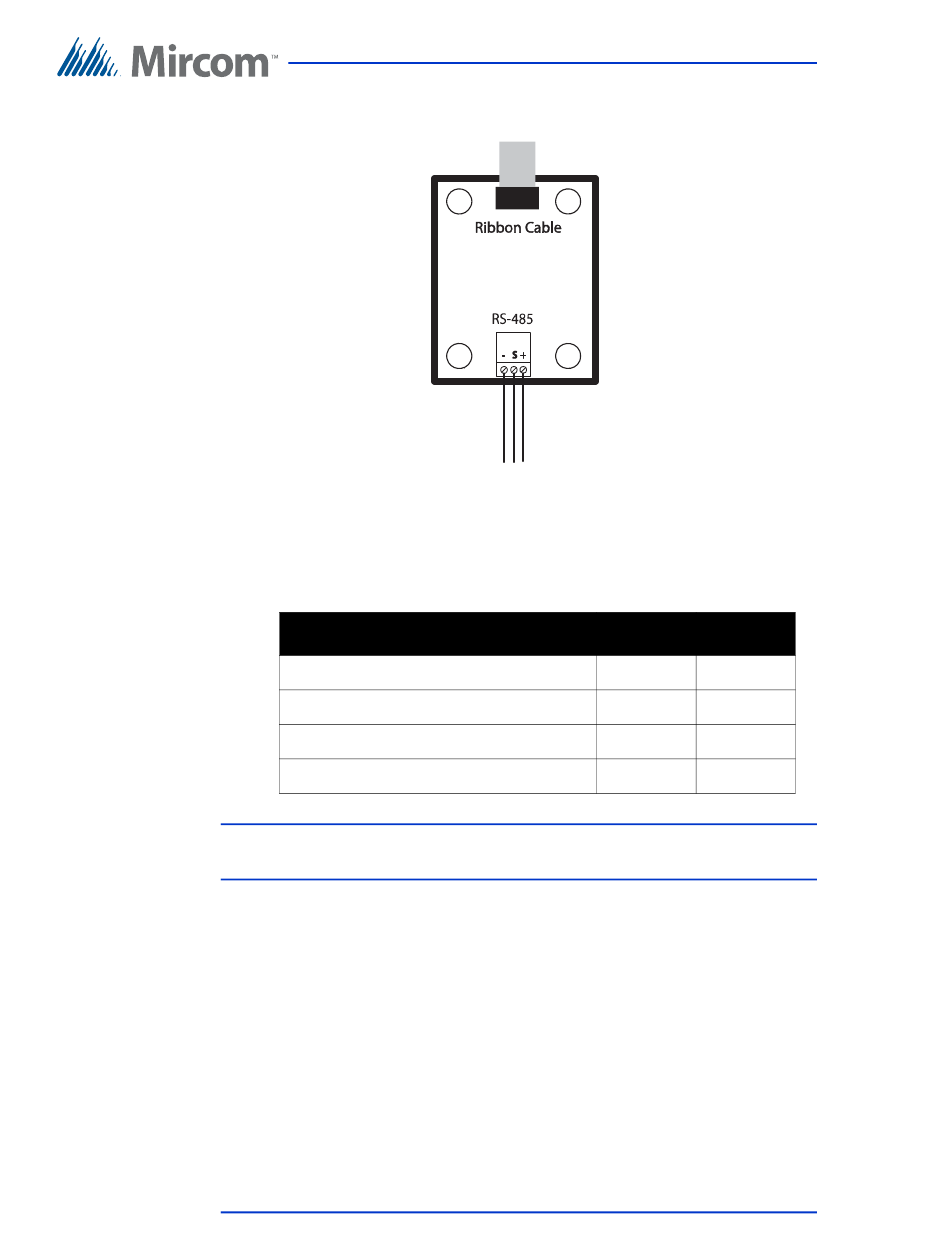

The module has an RS-485 connector as shown in Figure 35.
Figure 35. RS-485 Add-on Module
For a description on how to install the RS-485 Add-on Module see the USB to
RS-485 Adapter Installation Instructions LT-6027.
Note:
4.7
Guard Phone Module
The TX3-GPM Guard Phone Module mounts above the TX3 Lobby Control Unit
main board on the top left hand side. See Figure 25.
The module has two connectors, an RJ-11 connector and a ribbon cable as shown
in Figure 36.
60 (119)
Telephone Access System Installation and Operation Manual
LT-969
Copyright January 2017
RS-485 Add-on
Module
Table 1: RS-485 Add-on Jumper Settings
Mode
No termination
AC termination 120R + 1nF
No termination
DC termination 120R (Factory Default)
For the main application of the RS-485 Add-on Module, JW1 and
JW2 should both be shorted.
Lobby Control Unit Setup
JW1
JW2
Open
Open
Short
Open
Open
Short
Short
Short
Version 3.7
