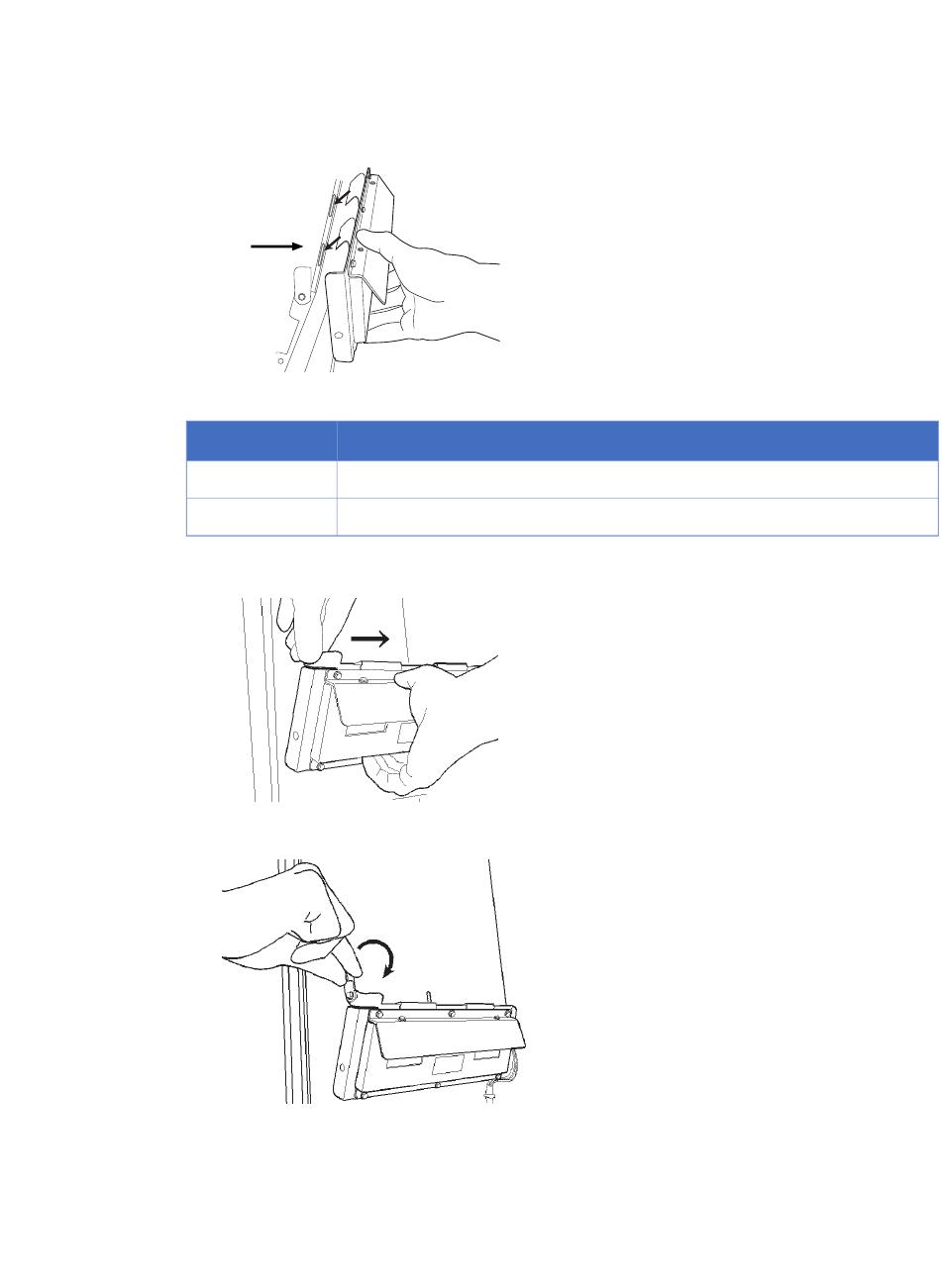

8 Hook the hanger located on top of the Epi light to the top edge of the Epi light base.
No.
1
2
9 Push the Epi light while holding the latch open, and slide it inwards until a click sound is heard.
10 Lower the latch to lock the Epi light in place.
11 Repeat this process for the opposite side.
Note:
ImageQuant LAS 4000 User Manual 28-9607-42 AB
1
Action
Two guide holes are located on the back of the Epi light base.
Slide the hook after attaching the guide pins to the guide holes.
• The Epi lights are clearly labelled L for the left and R for the right sides.
• Install the Epi lights in matching pairs only. If Epi lights with different wavelengths
are used, the intended image will not be obtained.
2
3 Exchanging accessory parts
3.3 Changing the light sources
3.3.2 Changing the Epi lights
