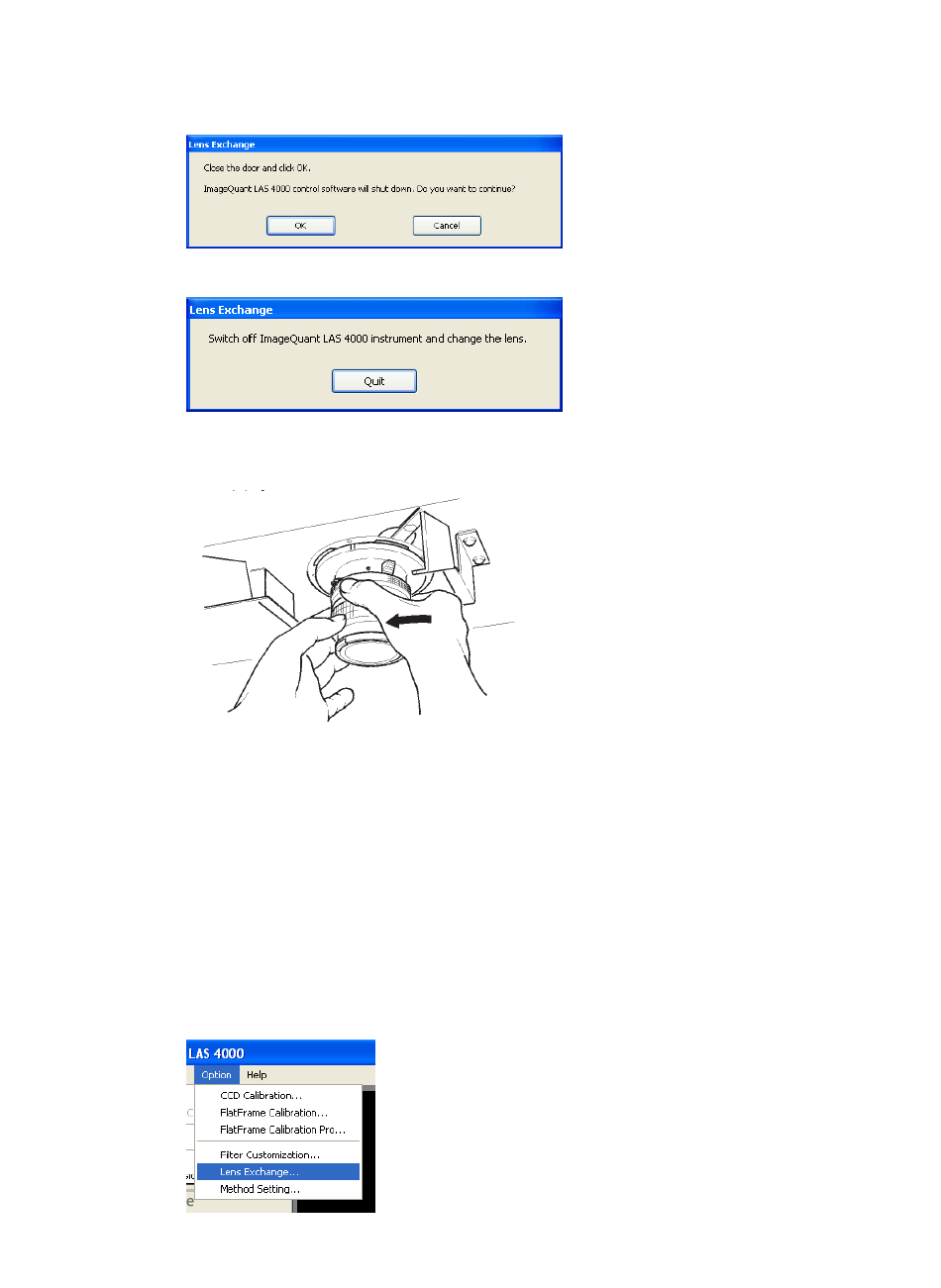

Installing The Wide View Lens - GE ImageQuant LAS 4000 User Manual

A message is displayed.
Click OK.
3
Turn off the instrument using the power switch.
4 Remove the F-mount adapter and lens while pushing the release button provided on the lens.
5 Remove the wide view lens together with the F-mount adapter by rotating it.
6 Remove the lens hood from the lens.
7 Place the lens cap on.
8 Place the end cap on the lens and the cap on the F-mount adapter.

3.2.4 Installing the wide view lens

1 Close the instrument door. If the power is turned off and the filter changer is down, proceed to step
4.
2 Select Option:Lens Exchange....
ImageQuant LAS 4000 User Manual 28-9607-42 AB
3 Exchanging accessory parts
3.2 Installing or exchanging the lens
3.2.3 Removing the wide view lens
