GE ImageQuant LAS 4000 User Manual page 87

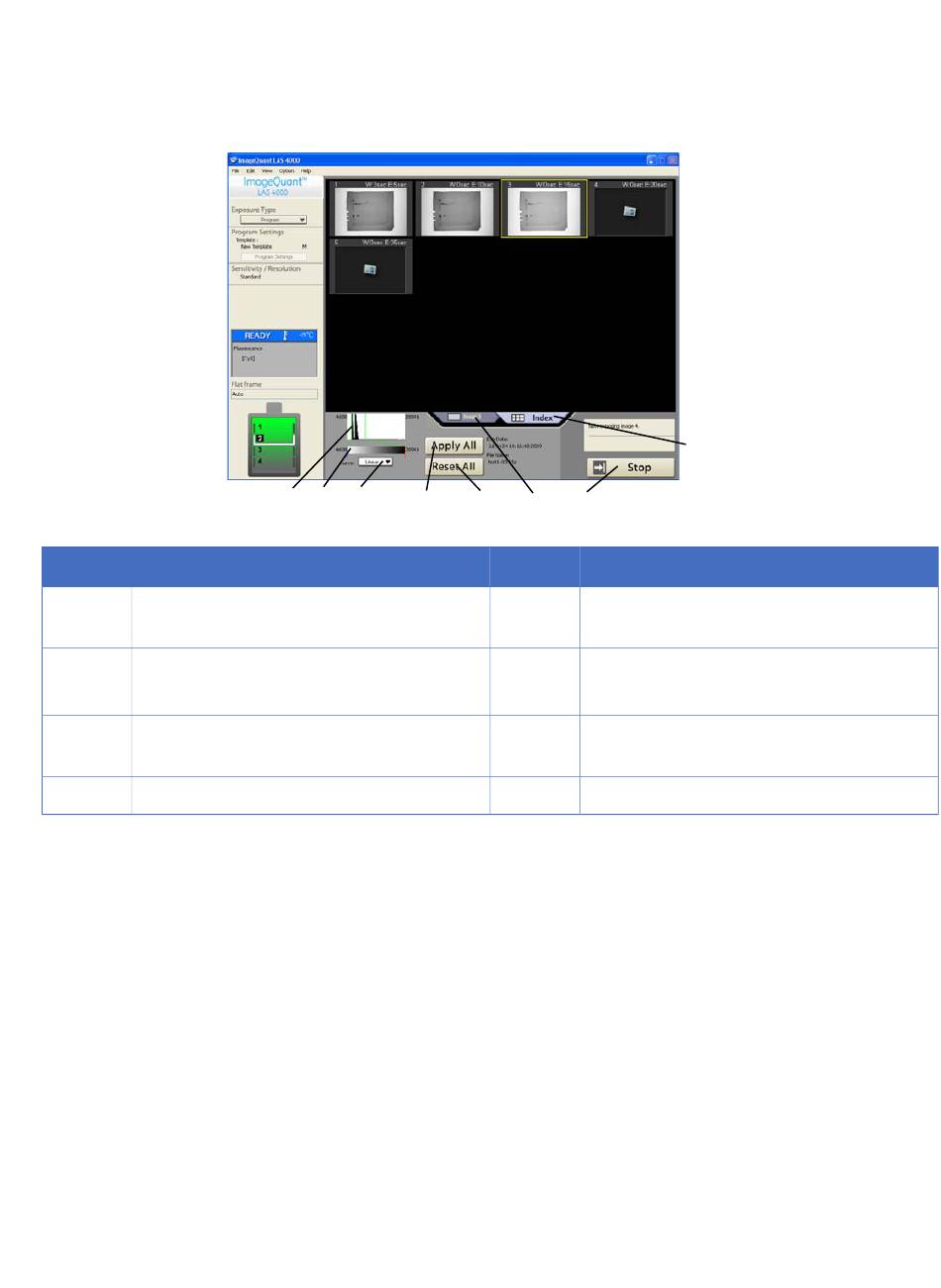

During exposure (type Increment or Repetition)
No. Description
1 Range Scope can be changed by dragging
the mouse.
2 Gradation can be changed by dragging the
mouse.
3 Gradation conversion curve can be changed
(linear or sigmoidal).
4 Returns the gradation to the initial setting.
TIP:
Note:
ImageQuant LAS 4000 User Manual 28-9607-42 AB
1 2 3 4
• Exposure is interrupted when you click the Stop button during Precision exposure.
In this case, the image in course of exposure is not saved.
• When you click the Apply All button during magnified image display, the gradation
changed in the expanded image display state is applied to all magnified images.
Only the 100 latest exposed images can be saved for exposure types Increment and
Repetition.
5 8 6
No. Description
5 The changed gradation is applied to all im-
ages.
6 Exposure is discontinued.
The current image is discarded.
7 Click this tab to enter index view.
8 Click this tab to magnify the selected image.
5 Software reference guide
7
5.6 Start
87
