2 The ImageQuant LAS 4000
2.2 Inside the ImageQuant LAS 4000
Part
7
8
9
Note:
Note:
Note:

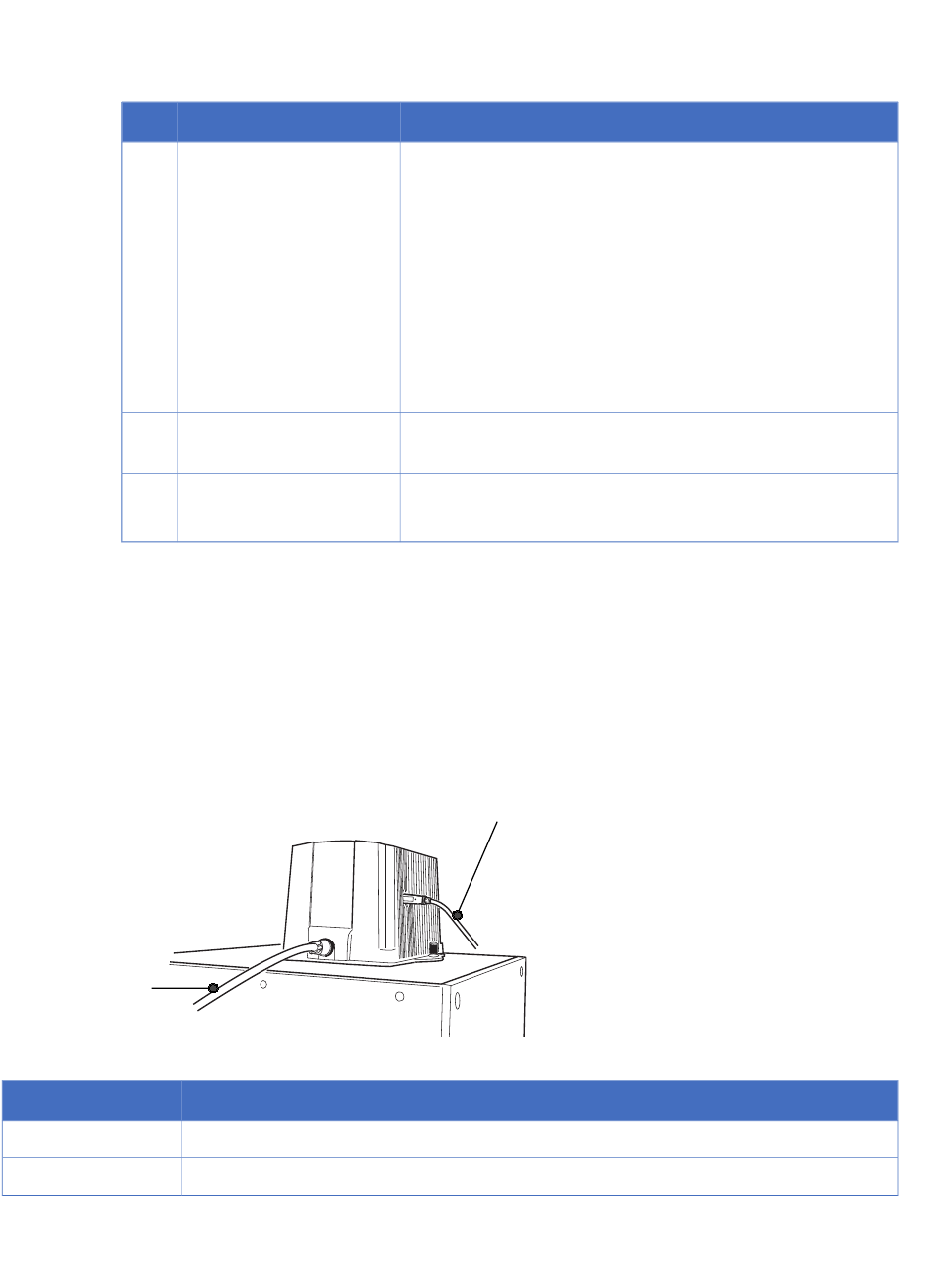

2.3 Connections

Camera head
1
No.
1
2
Note:
12
Name
Automatic filter changer
Trans light source connec-
tor
Trans light source
Do not use connectors other than those supplied for the Epi light sources.
Do not connect cables other than those supplied to the lens.
Do not connect anything other than the transmitted light sources to the transmitted light
source connector.
Name
Camera cable
USB cable
Do not connect cables other than the camera cable supplied with the equipment.
Description
Used to hold filters selected in the control software. The follow-
ing filters are commonly used:
IR785 Alexa (filter for NIR LED)
R670 Cy5 (filter for red LED)
575DF20 Cy3 (filter for green LED)
605DF40 EtBr (filter for detecting EtBr)
510DF10 (filter for detecting GFP)
Y515 (filter for blue LED)
L41 UV (filter for UV LED)
Connects the UV transilluminator or White light table to IDX
312 nm UV transilluminator
White light table
2
