2 The ImageQuant LAS 4000

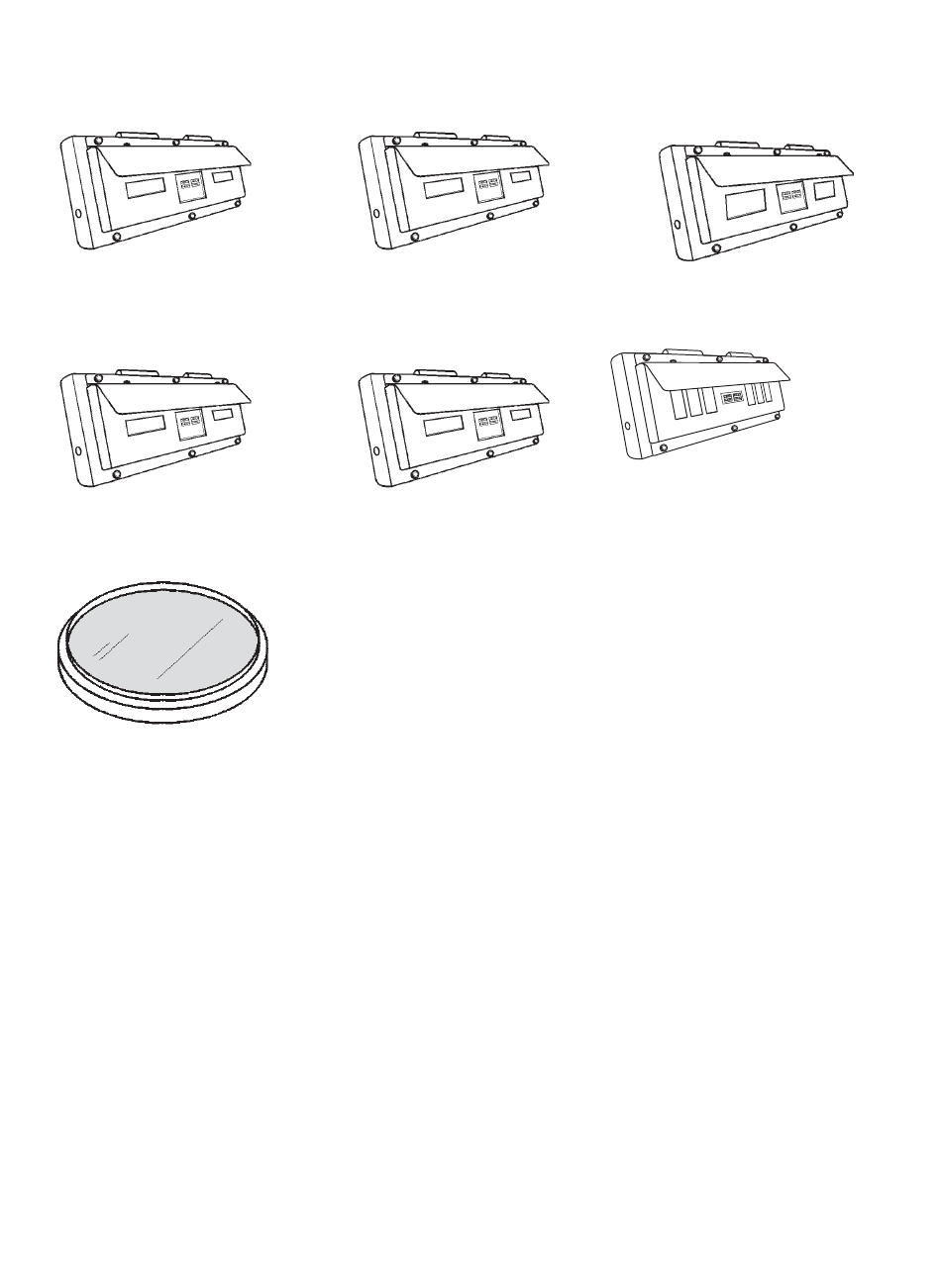

2.4 Parts and accessories
Blue Epi light (460 nm), set of two
UV Epi light (365 nm), set of two
Note:
16
Green Epi light (520 nm), set of two
NIR Epi light (710 nm), set of two
Filters:
Y515 filter (Y515)
GFP detection filter (510DF10/GFP)
EtBr detection filter (605DF40/EtBr)
Cy3 detection filter (575DF20/Cy3)
Cy5 detection filter (R670BP/Cy5)
Alexa Fluor 750 detection filter (IR785/Alexa)
Ultraviolet protection filter (L41/UV)
• The combined accessories and light source vary depending on the system that you
purchase.
• Make sure to retain the caps and filter cases.
• Store the incident (Epi) light sources in a container box.
• The UV trans tray will degrade after many UV illuminations. It can be used up to
approximately 1000 times if each exposure time is 1 second. New trays can be
purchased separately.
Red Epi light (630nm), set of two
RGB module, Epi lights, set of two
