4 Operating the ImageQuant LAS 4000
4.4 Placing the sample

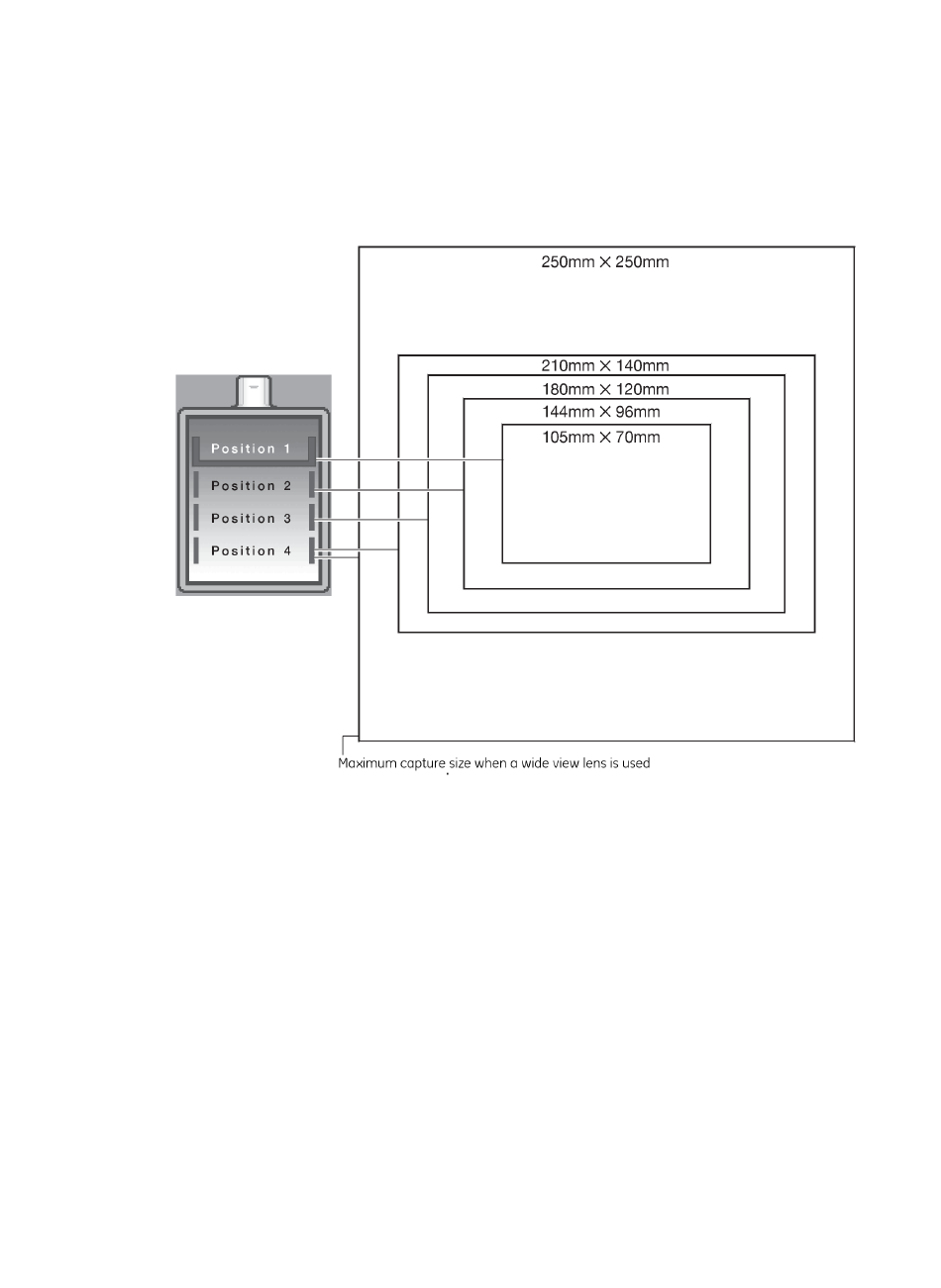

3 Choose the exposure size and tray position
For Epi and Trans trays
• The readable area varies depending on the tray position. Place the sample in position according
to its size.
TIP:
For NP tray
• The NP tray is to be used at tray position 3.
Note:
36
On the Epi tray, there are round dents marked on the tray for positioning the
sample. Line up the sample using the appropriate dents.
The readable area will be slightly smaller using the F1.8 wide view lens.
