Module programming

Refer to "LED diagnostics and troubleshooting" on page 38 for more information and for troubleshooting purposes.

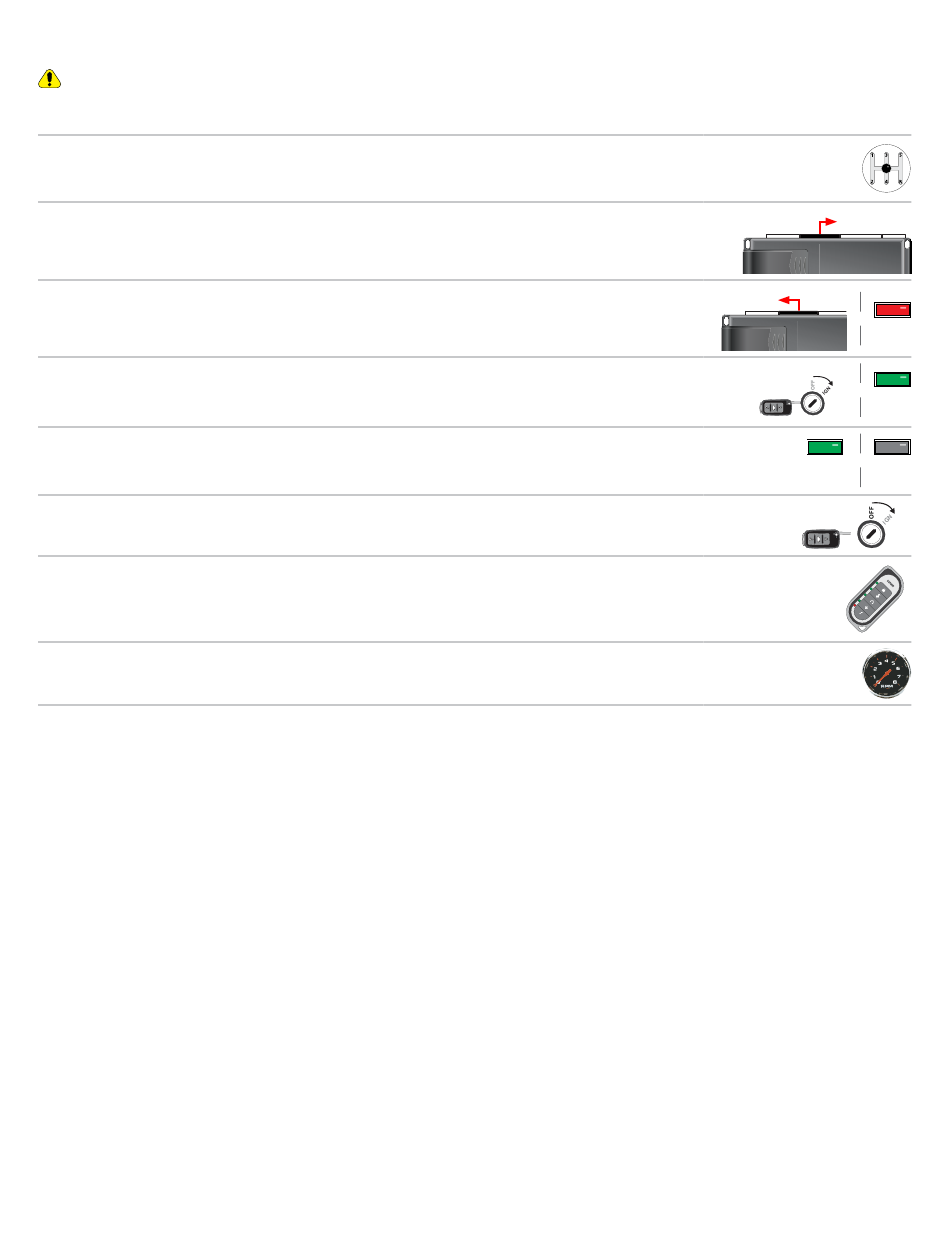

To connect the module:
Please ensure that the vehicle is in a safe location and cannot move forward during
1
programming. For vehicles equipped with a manual transmission, make sure the gearshift
lever is in the neutral position.
2
Connect all the harnesses to the DS4+, EXCEPT the 12-pin main power harness.
3
Connect the 12-pin main power harness, and wait until the LED turns ON solid red.
Press Unlock on the OEM fob then insert key into key switch and turn ON. The LED flashes
4
green.
5
Wait for the LED to turn solid green for 3 seconds then OFF.
6
Turn vehicle ignition OFF once the module is successfully programmed.
Pair remotes (if applicable). For information on how to pair a specific remote, please
7
refer to its corresponding owner documentation, which can be found inside the product
packaging of the complete system or on www.directechs.com.*
By default, the tachometer is preprogrammed for the vehicle. For instructions on how to
8
program tach, see page 41.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
37
Connect all but the
12-pin harness
Must be
connected LAST
&
Solid
&
Flashes
START
green
START
&
Solid Off
x 3 secs START
START
START
Pair
remotes*
START
Initialize
tachometer
DS4+ VW10
