Type 3 - Directed DS4 Plus Installation Manual

Type 3

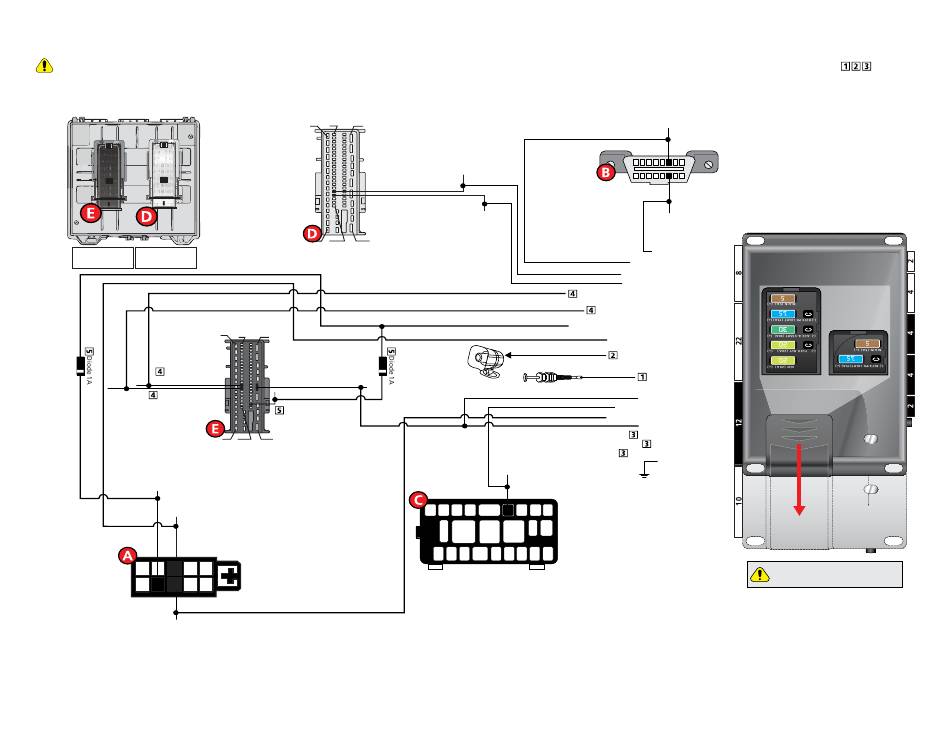

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (
VESCM - (under drivers kick)
Connector Connector
B
A
(MUX) Doorlock:
Blue/Red,pin 24
(-) Trunk Release:
Violet, pin 23
Black VESCM connector A
(under drivers kick)
(+) Starter: Red/Black, pin 4
(+) Ignition:
Black/Violet, pin 8
9 8 7 6
10
Ignition Switch
(black conn. at
1
5 3
4 2
ignition switch)
(+) Accessory: Black/Red, pin 3
14
White VESCM Connector B
(under drivers kick)
37
16 73
FT CAN Low:
Orange/Brown, pin 21
FT CAN High:
Orange/Green, pin 20
1 17 63
16
37 73
(+) 12V:
Red/White
or Red/Yellow, pin 68
(+) Brake:
Black/Red, pin 39
63
1 17
HS CAN High: Orange/Black, pin 6
HS CAN Low: Orange/Brown, pin 14
(MUX) Lock/Unlock Output: Violet/Brown: 6
(-) Trunk Release Output: Red/White: 4
(+) Starter / Brake Activation Output: White: 7
Hood Pin
Siren
(+) Parking Lights:
Gray/Red, pin 14
10 14 17
1 9
Parking Light Switch
(black conn. at light switch)
Diagnostic
1 8
Connector OBDII
9 16
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
(+) Ignition Output: Violet/Black: 8
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
DS4+
(+) 12V Input: Blue/Red: 2 Proper Fuse
(+) Parking Light Output: Blue: 3 Positioning
(+) Accessory Output: White: 5 & 11
(+) 12V Input: Red: 6 & 12
Key Wrap: Lt.Green/Red: 7
Key Wrap: Lt. Green: 8
Key Wrap: Lt. Green/White: 9
(-) Ground: Black: 10
to open
It is important to check that the
fuses are positioned correctly.
