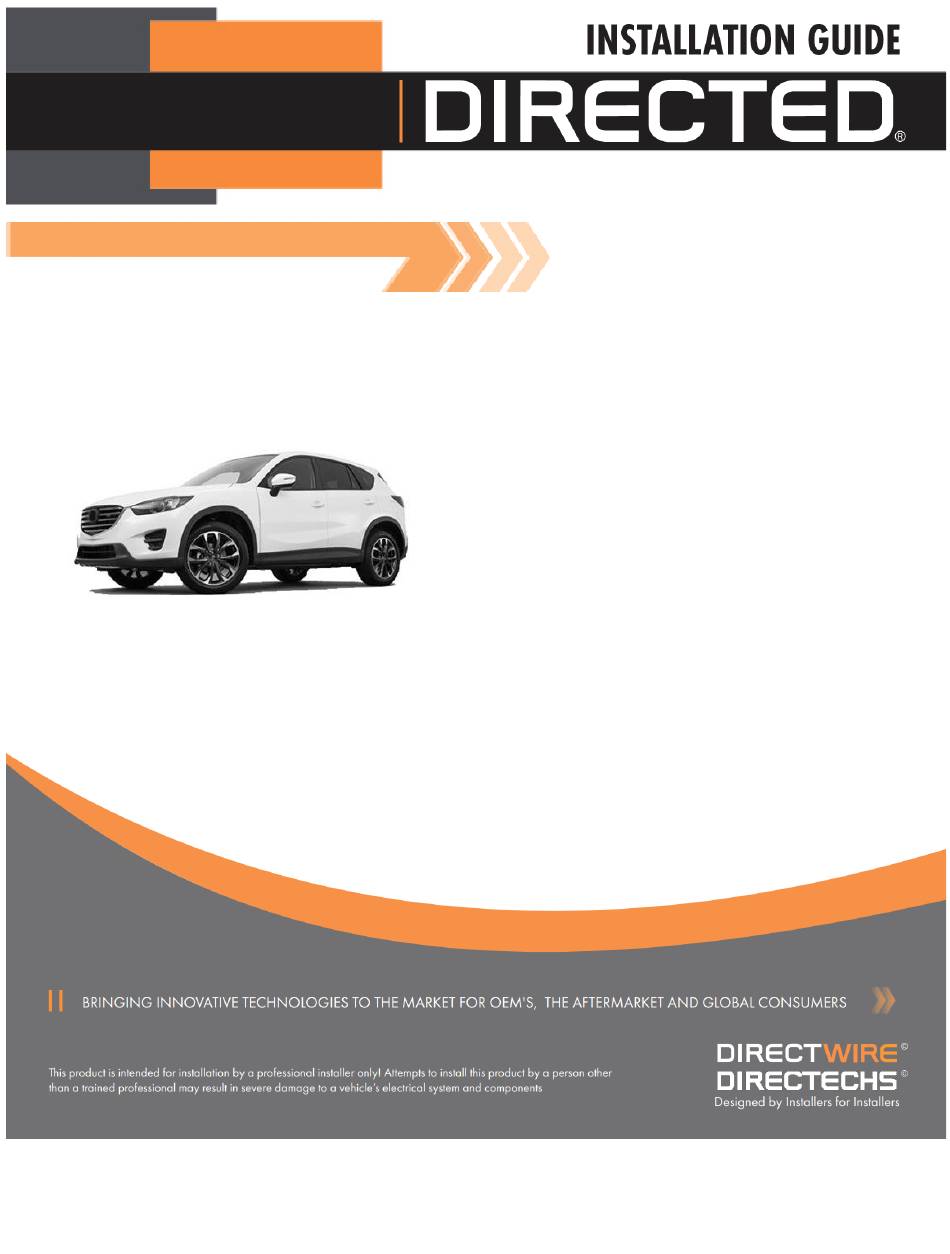

- Page 1 933.MA3 DS3+ / DS4+ v2.41.198.9 2016 Mazda CX-5 (Smart Key) THMAN1 Compatible (Sold Separately)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with THMAN1 Wiring diagram Locating components in the vehicle Vehicle connections Module programming Module programming for convenience only (skip transponder) Module programming for security-only installations Pairing remotes Connecting the module 8556T Temperature Sensor 8504D Combo Sensor RF Systems... -
Page 3: Introduction
Introduction This guide provides information on the installation of the DS3/DS3+ and DS4/DS4+ modules as a digital solution. Using these modules in a digital configuration require the module to be flashed with vehicle specific firmware. Refer to our website (www.directechs.com) and click on the DIRECTLINK text in the header for additional information. -
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Door Lock Control Remote Start Takeover Door Unlock SmartStart Driver Priority Unlock... -
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required THMAN1 programming for operation... -
Page 6: Wiring Diagram With Thman1
Wiring diagram with T-Harness (THMAN1) - Important! In these vehicles, the factory keyless entry module is sensitive to interference and may cease to operate without notice. Ensure you disconnect the (-) terminal of the Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( battery prior to disconnecting and reconnecting the connectors at the start-stop module below the steering wheel to avoid damage to the keyless entry module. -
Page 7: Wiring Diagram
Wiring diagram - Important! In these vehicles, the factory keyless entry module is sensitive to interference and may cease to operate without notice. Ensure you disconnect the (-) terminal of the - Important! In these vehicles, the factory keyless entry module is sensitive to interference and may cease to operate without notice. Please ensure you disconnect the (-) terminal Refer to "Pre-installation and application warnings"... -
Page 8: Locating Components In The Vehicle
Locating components in the vehicle Accessing the parking light circuit 1. Grab parking light handle and pull in the direction of the arrow. 2. Push the clip to remove the parking light switch. 3. Remove the white cover to expose the connector. 4.Access the parking light connector and wire. - Page 9 Optional starter disable connection When using an external relay, use a 1N4002 diode or larger. 1A diode (+) Ignition (-) Ground When Armed (GWA) Output: Dk. Green/Black: 3 (-) Ground When Armed (GWA) Output: Dk. Green/Black: 3 Refer to the Refer to the Vehicle connections Vehicle connections...
-
Page 10: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2016 Mazda CX-5 (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data harness, 8-pin white connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color... - Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Connection H2/13 Violet No Connection No Connection H2/14 Brown No Connection No Connection H2/15 White/Blue No Connection No Connection H2/16 Red/Blue No Connection No Connection H2/17 Black/White No Connection No Connection H2/18 Orange/Black...
- Page 12 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color Connection H4/2 Red/Black No Connection No Connection H4/3 Pink/Black No Connection No Connection H4/4 Pink/White No Connection No Connection H4/5 No Connection No Connection H4/6 Green No Connection No Connection H4/7 Violet No Connection...
-
Page 13: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. (For security-only programming, see next section.) Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. -
Page 14: Module Programming For Convenience Only (Skip Transponder)
Module programming for convenience features only (skip transponder programming) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. Connect the 12-pin main power harness to the module. -
Page 15: Module Programming For Security-Only Installations
Module programming for security-only installations Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. Connect the 12-pin main power harness to the module. -
Page 16: Pairing Remotes
When used in conjunction with Directed SmartStart ® To enable D2D communication between the DS3+/DS4+ and the Directed SmartStart one of the following actions must be performed ® before providing power to the Directed SmartStart unit: ®... -
Page 17: When Used In Conjunction With Smartstart
DO NOT connect the Directed SmartStart 2-pin power harness when using the DS3+/DS4+. Power and ground will be provided by the ® D2D connector on the module. Refer to the Directed SmartStart documentation for further details. ® D2D port configuration Caution! Do not connect the Control Center (antenna) or any digital sensors (8504D) to the white D2D1 port. -
Page 18: Manual Transmission
Manual Transmission IMPORTANT! Directed does not approve nor support installations of manual transmission and remote starts on any electronic vehicles (EV), OEM Remote Start Activation firmware, vehicles with convertibles and/or removable tops, including but not limited to Jeep Wrangler, Honda S2000, Mazda Miata, and other such vehicles. -
Page 19: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power. - Page 20 External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence.
-
Page 21: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module Programming”. The firmware and settings flashed to the module will not be affected. Connect all but the If required for your installation, connect all the harnesses to the module, EXCEPT the 12-pin main 12-pin harness power harness. -
Page 22: Tach Learning Procedure (Not Needed With Virtual Tach)
Tach learning procedure (not needed with Virtual Tach) Data Tach: The procedure is not required as the tach comes preprogrammed. However, it is strongly recommended to learn the exact value of the vehicle for the most consistent and reliable starting and functionality. Hardwired Tach: The procedure is required. -
Page 23: Limited Lifetime Consumer Warranty
Limited Lifetime Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or work- manship within the Lifetime from the date of original purchase in the original vehicle, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor. -
Page 24: Quick Reference Guide (Customer Copy)
Park Factory remote. Press the Remote Start button on the transmitter.* 2. Aftermarket remote. & 3. Directed SmartStart application via your smartphone. The parking lights will flash once to indicate the vehicle is ® Parking lights flash x1 Press Remote now in Pit Stop Mode. - Page 25 SmartSchedule, vehicle status, roadside assistance, parked car finder and more. The application enables a “Cloud-Connected Car” like never before, providing 2-way interaction with your vehicle. Connectivity is managed through the Directed Cloud Services (DCS) network linking car, app, end user, and the Internet.
