Type 6 - Directed DS4 Plus Installation Manual

Type 6

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of special notes referenced in the diagram (

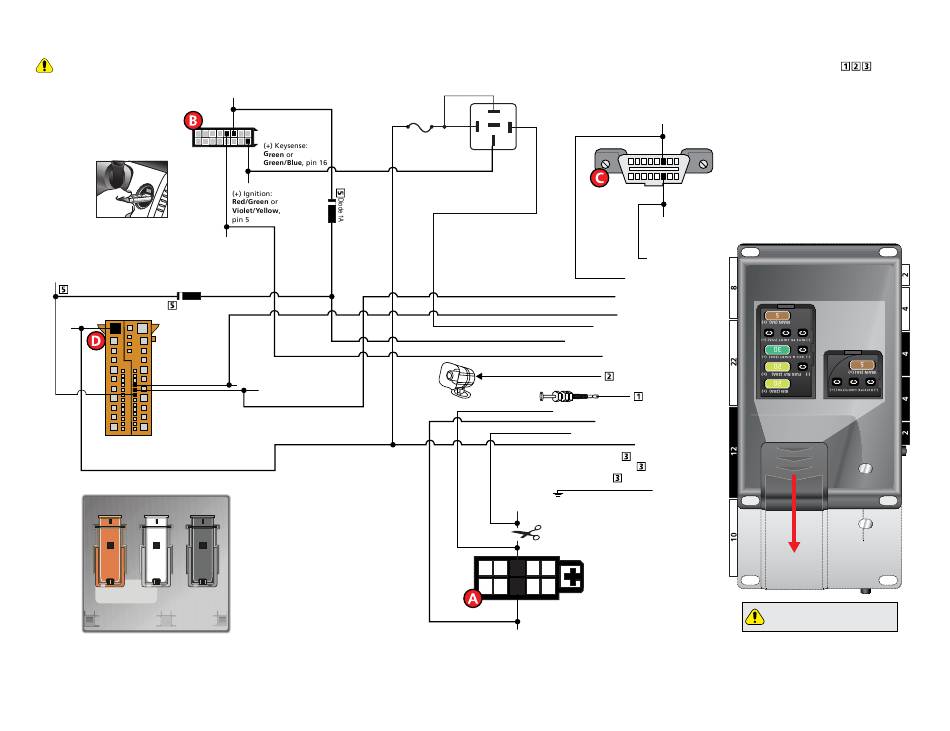

Steering Column Module
1
(behind steering column trim)
9
Ignition Switch Plug
(at Key Port)
[5] (+) Brake: Black/Red, pin 17
(+) 12V:
[5] Diode 1A
Red/Yellow,
42 25 1
pin 42
28
29 12
FT CAN High:
Orange/Green, pin 15
FT CAN Low:
Orange/Brown, pin 16
52 41 24 11
Brown VESCM connector C
C B A
VESCM - Driver side under dashboard
20
(+) Starter: Pin 6
(+)12V
8
6
Fuse 5A
14
16
86 87 85
87a
30
(-) Key Release Output: Blue/White: 2
(+) Starter / Brake Activation Output: White: 7
(+) Ignition Output: Violet/Black: 8
Hood Pin
Siren
Parking Light Interrupt (conn. side): Blue/White: 1
(+) Parking Light Output: Blue/Red: 2
Parking Light Interrupt (vehicle side): Blue: 3
Parking Lights Interrupt:
Red/White or Red/Black, pin 8
CUT
8 7
10 6
9
Headlight Switch
(black conn. at light switch)
1
5 4 3 2
(+) Parking Lights: Gray/Yellow
or Gray/Green, pin 3
HS CAN High:
Orange/Black, pin 6
Diagnostic
1 8
Connector OBDII
9 16
HS CAN Low:
Orange/Brown, pin 14
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
FT CAN Low: Orange/Brown: 3
FT CAN High: Orange/Green: 4
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(+) 12V Input: Red: 6 & 12
Key Wrap: Lt.Green/Red: 7
Key Wrap: Lt. Green: 8
Key Wrap: Lt. Green/White: 9
(-) Ground: Black: 10
Slide
to open
It is important to check that the
fuses are positioned correctly.
