Directed DS4 Plus Installation Manual page 19

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Audi Q3 2015-2017
HS CAN High Orange/Black
HS CAN Low Orange/Brown
Starter Red/Black
Ignition Green/Black
Orange/Green or
FT CAN High
Lt.Green
FT CAN Low Orange/Brown
12V Red/Yellow
Hazards Brown/Red
Brake Black/Red
19

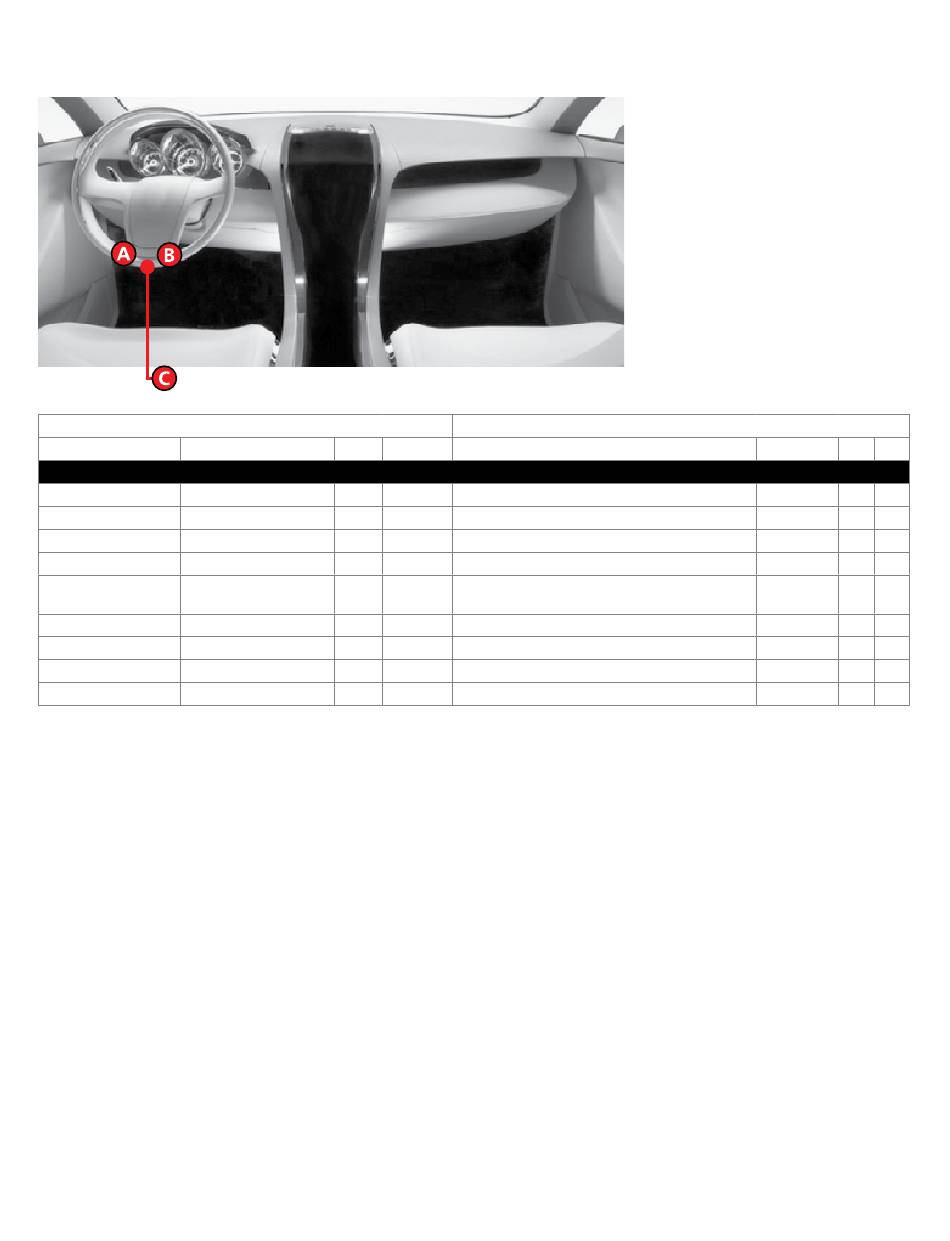

Pin Polarity Location
6 Data OBDII.
14 Data OBDII.
6 (+) Steering column module behind steering column trim.
14 (+) Steering column module behind steering column trim.
4 Data Steering column module behind steering column trim.
3 Data Steering column module behind steering column trim.
42 (+) VESCM connector C, under drivers dash.
7 (-) VESCM connector C, under drivers dash.
17 (+) VESCM connector C, under drivers dash.
Connector Information
Color
Violet/Black
Violet/Black
Black
Black
Black
Black
Brown
Brown
Brown
© 2017-11-02 Directed. All rights reserved.
Pins Ref.
16 A
16 A
16 B
16 B
16 B
16 B
52 C
52 C
52 C
DS4+ VW10
