Directed DS4 Plus Installation Manual page 23

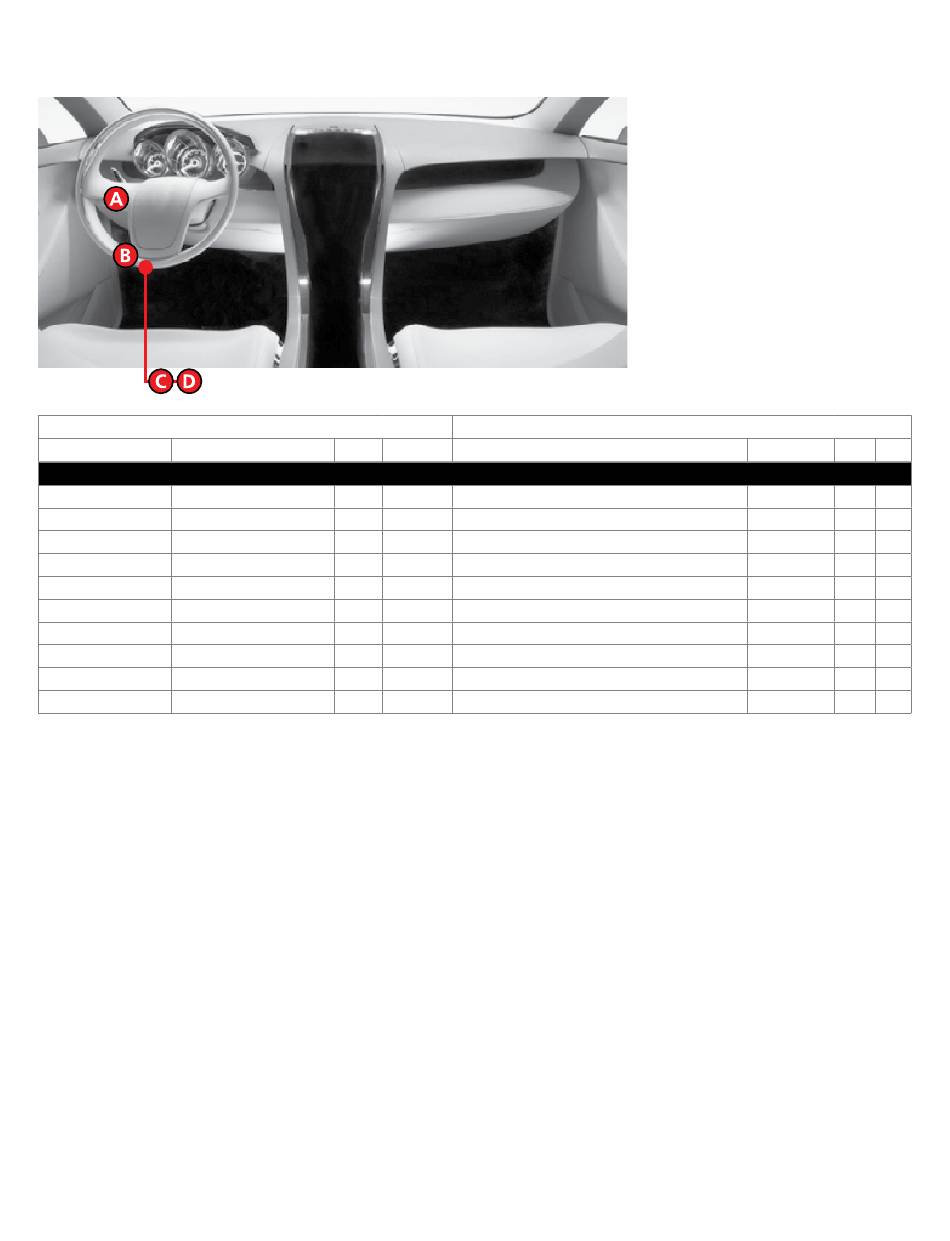

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Volkswagen Jetta SportWagen 2010
Parking Light White/Black
Parking Light Interrupt Red/White
HS CAN High Orange/Black
HS CAN Low Orange/Brown
Starter Red/Black or Red/Brown
Ignition Black
FT CAN High Orange/Green
FT CAN Low Orange/Brown
12V Red /Yellow
Brake Black/Red
23
Pin Polarity Location
1 (+) Headlight Switch.
8 Cut Headlight Switch.
6 Data OBDII.
14 Data OBDII.
18 (+) Steering column module.
17 (+) Steering column module.
14 Data Steering column module.
15 Data Steering column module.
42 (+) VESCM connector C, under drivers dash.
17 (+) VESCM connector C, under drivers dash.
Connector Information
Color
Black
Black
Violet/Black
Violet/Black
Black
Black
Black
Black
Brown
Brown
© 2017-11-02 Directed. All rights reserved.
Pins Ref.
10 A
10 A
16 B
16 B
16 C
16 C
16 C
16 C
52 D
52 D
DS4+ VW10
