Directed DS4 Plus Installation Manual page 32

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Volkswagen Jetta 2015-2017
Starter Red/Black
Ignition Black/Violet
Accessory Black/Red
Parking Light White/Black
Parking Light Interrupt Red/Yellow
HS CAN High Orange/Black
HS CAN Low Orange/Brown
FT CAN High Orange/Green
FT CAN Low Orange/Brown
12V Red/White or Red/Yellow
Brake Black/Red
Doorlocks Blue/Red
Trunk Release Violet
32
Pin Polarity Location
4 (+) Ignition switch.
8 (+) Ignition switch.
3 (+) Ignition switch.
1 (+) Headlight switch.
8 Cut Headlight switch.
6 Data OBDII.
14 Data OBDII.
20 Data VESCM connector B, under drivers dash.
21 Data VESCM connector B, under drivers dash.
68 (+) VESCM connector A, under drivers dash.
39 (+) VESCM connector A, under drivers dash.
24 MUX VESCM connector A, under drivers dash.
23 (-) VESCM connector A, under drivers dash.

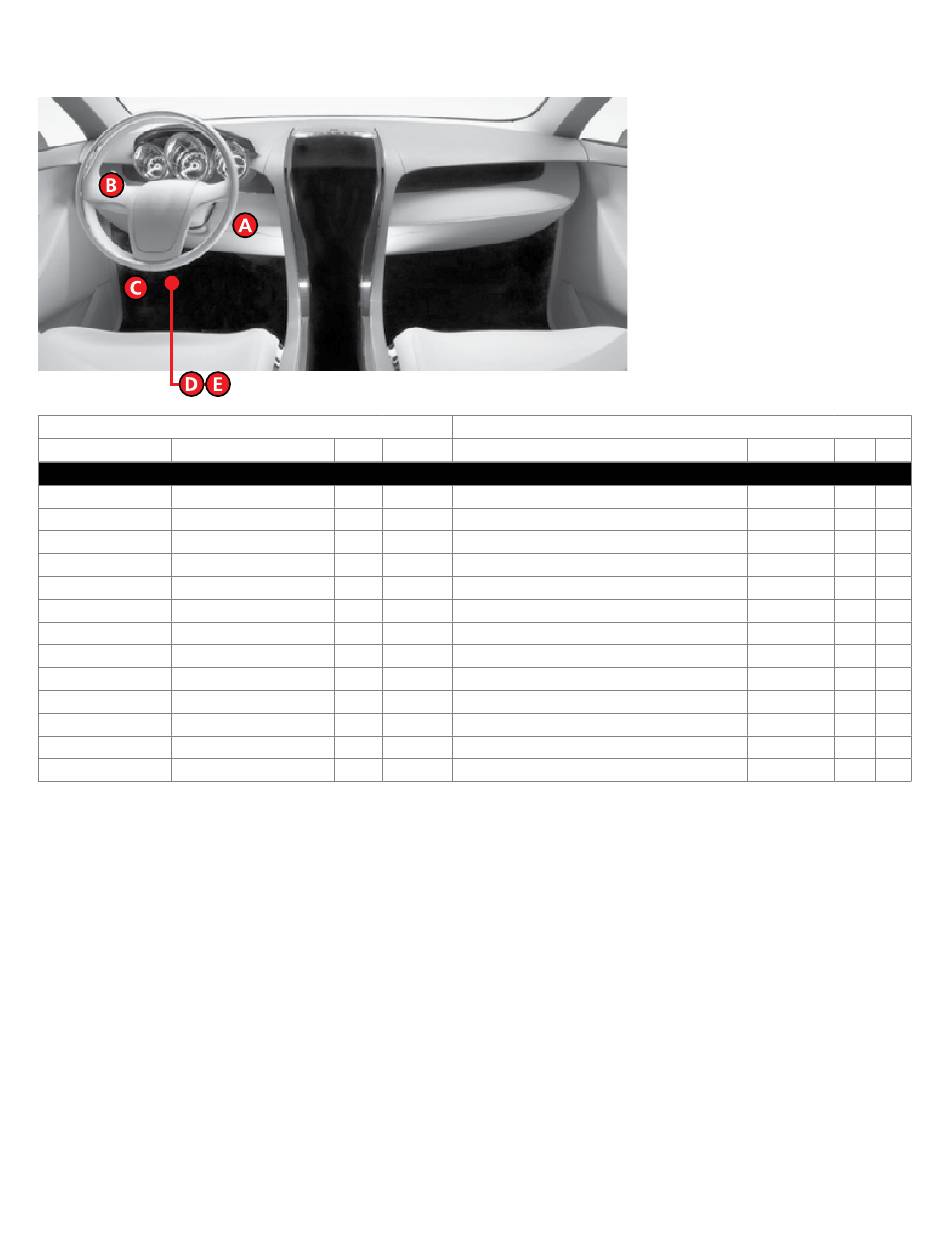

Connector Information
Color
Black
Black
Black
Black
Black
Violet/Black
Violet/Black
White
White
Black
Black
Black
Black
© 2017-11-02 Directed. All rights reserved.
Pins Ref.
10 A
10 A
10 A
10 B
10 B
16 C
16 C
73 D
73 D
73 E
73 E
73 E
73 E
DS4+ VW10
