Directed DS4 Plus Installation Manual page 12

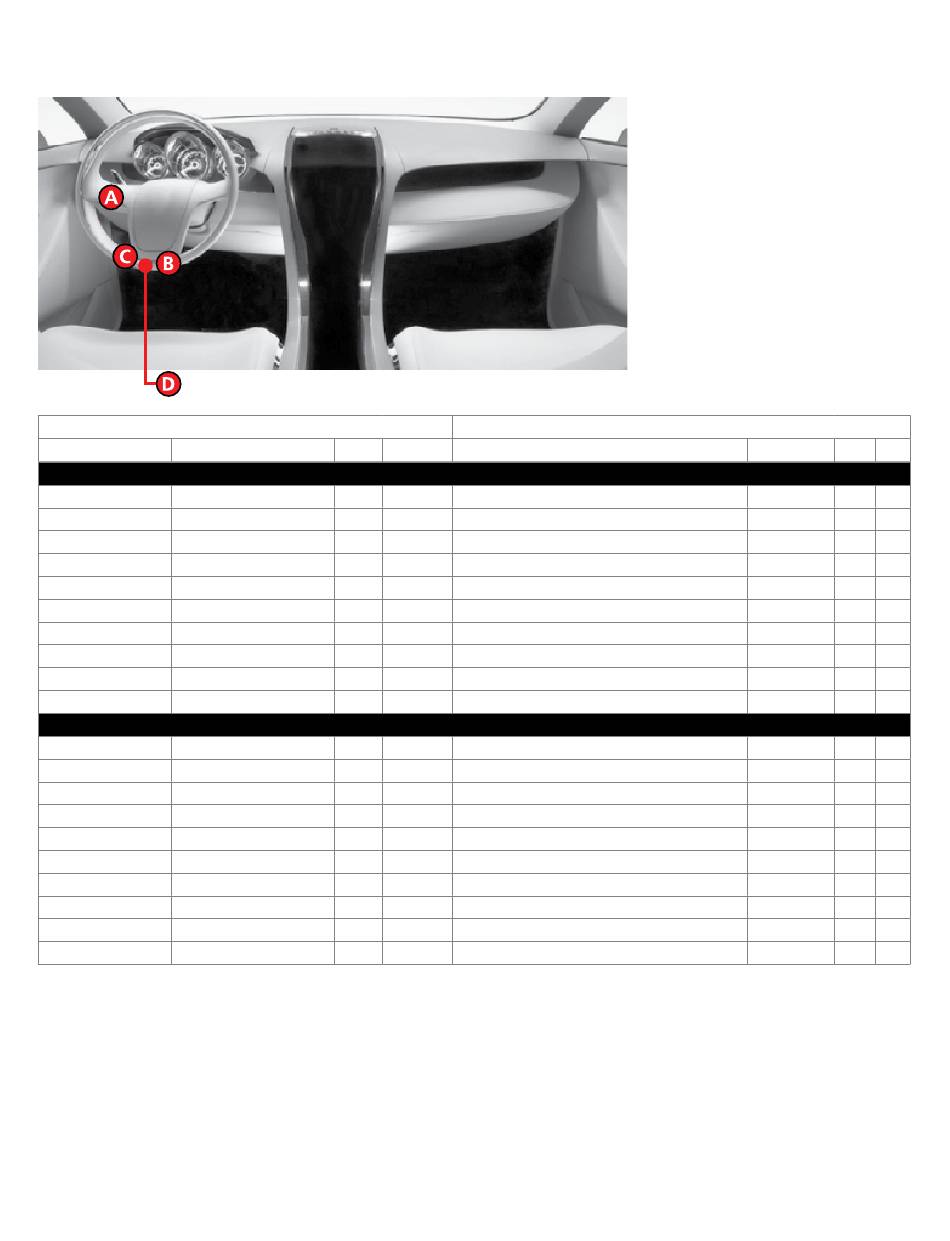

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Volkswagen Golf 2010-2014
Parking Light White/Black
Parking Light Interrupt Red/White
Ignition Black
Starter Red/Black or Red/Brown
FT CAN High Orange/Green
FT CAN Low Orange/Brown
HS CAN High Orange/Black
HS CAN Low Orange/Brown
12V Red/White or Red/Yellow
Brake Black/Red
Volkswagen GTI 2010-2014
Parking Light White/Black
Parking Light Interrupt Red/White
Ignition Black
Starter Red/Black or Red/Brown
FT CAN High Orange/Green
FT CAN Low Orange/Brown
HS CAN High Orange/Black
HS CAN Low Orange/Brown
12V Red/White or Red/Yellow
Brake Black/Red
12
Pin Polarity Location
1 (+) Headlight Switch.
8 Cut Headlight Switch.
14 (+) Steering column module.
6 (+) Steering column module.
4 Data Steering column module.
3 Data Steering column module.
6 Data OBDII.
14 Data OBDII.
42 (+) VESCM connector C, under drivers dash.
17 (+) VESCM connector C, under drivers dash.
1 (+) Headlight Switch.
8 Cut Headlight Switch.
14 (+) Steering column module.
6 (+) Steering column module.
4 Data Steering column module.
3 Data Steering column module.
6 Data OBDII.
14 Data OBDII.
42 (+) VESCM connector C, under drivers dash.
17 (+) VESCM connector C, under drivers dash.
Connector Information
Color
Black
Black
White
White
White
White
Violet/Black
Violet/Black
Brown
Brown
Black
Black
White
White
White
White
Violet/Black
Violet/Black
Brown
Brown
© 2017-11-02 Directed. All rights reserved.
Pins Ref.
10 A
10 A
16 B
16 B
16 B
16 B
16 C
16 C
52 D
52 D
10 A
10 A
16 B
16 B
16 B
16 B
16 C
16 C
52 D
52 D
DS4+ VW10
