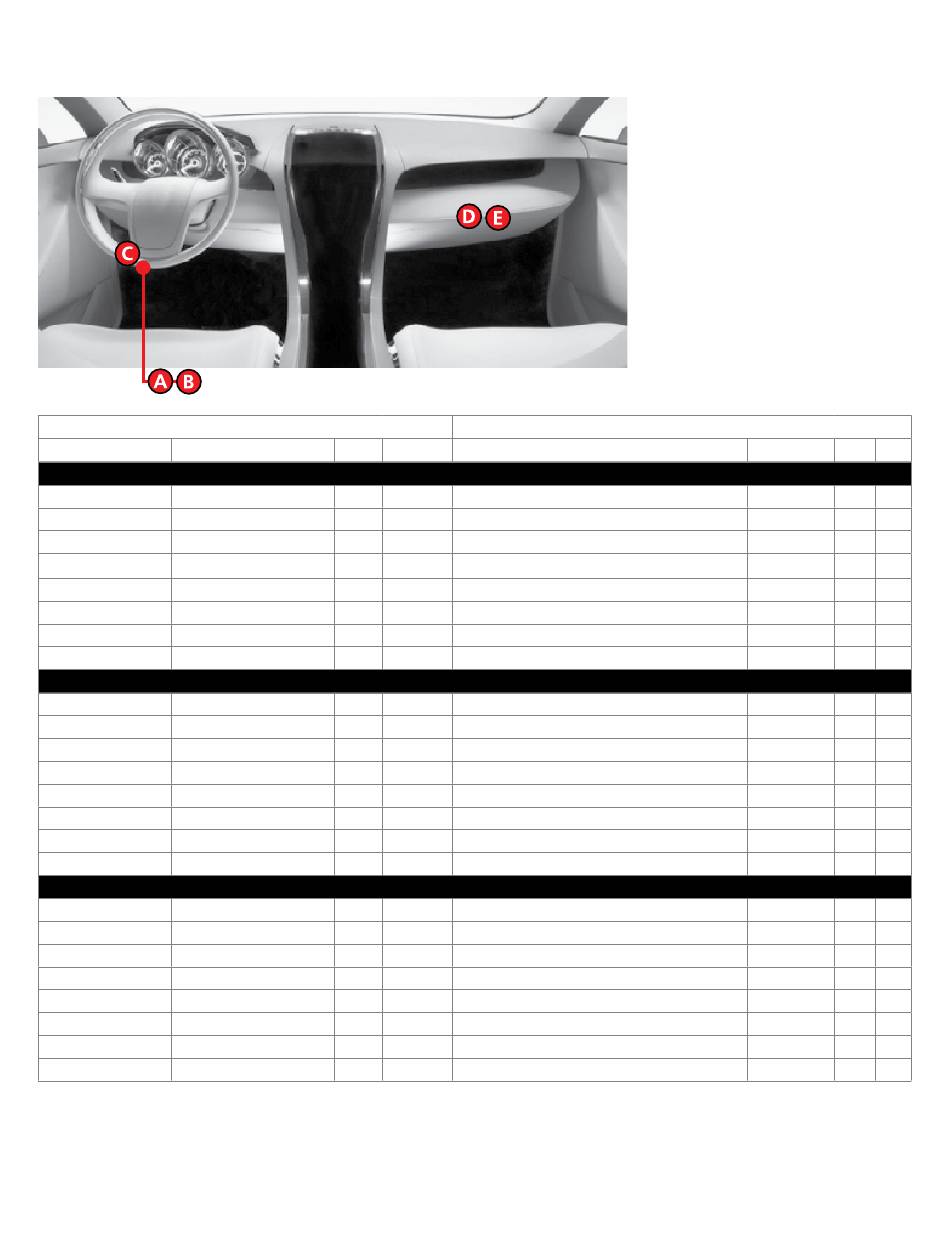

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Audi A3 2004-2008
12V Red/Black or Black
Starter Red/Black or Black
Ignition Black or Black/Green
FT CAN High Orange/Green
FT CAN Low Orange/Brown
Hazards Brown/Red
HS CAN High Orange/Black
HS CAN Low Orange/Brown
Audi R8 2008-2009
12V Black/Blue
Starter Red/Black or Black
Ignition Black/Violet
FT CAN High Orange/Green
FT CAN Low Orange/Brown
Hazards Blue/Red
HS CAN High Orange/Black
HS CAN Low Orange/Brown
Audi TT 2006-2009
12V Red
Starter Red/Black or Black
Ignition Black/White
FT CAN High Orange/Green
FT CAN Low Orange/Brown
Hazards Brown/Red
HS CAN High Orange/Black
HS CAN Low Orange/Brown
25
Pin Polarity Location
1 (+) VESCM connector L, under drivers dash.
1 (+) VESCM connector G, under drivers dash.
11 (+) VESCM connector G, under drivers dash.
8 Data VESCM connector G, under drivers dash.
7 Data VESCM connector G, under drivers dash.
9 (-) VESCM connector G, under drivers dash.
6 Data OBDII.
14 Data OBDII.
1 (+) VESCM connector L, below glove box.
1 (+) VESCM connector G, below glove box.
11 (+) VESCM connector G, below glove box.
8 Data VESCM connector G, below glove box.
7 Data VESCM connector G, below glove box.
9 (-) VESCM connector G, below glove box.
6 Data OBDII.
14 Data OBDII.
1 (+) VESCM connector L, under drivers dash.
1 (+) VESCM connector G, under drivers dash.
11 (+) VESCM connector G, under drivers dash.
8 Data VESCM connector G, under drivers dash.
7 Data VESCM connector G, under drivers dash.
9 (-) VESCM connector G, under drivers dash.
6 Data OBDII.
14 Data OBDII.
Connector Information
Color
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
