Directed DS4 Plus Installation Manual page 15

Vehicle wiring reference chart

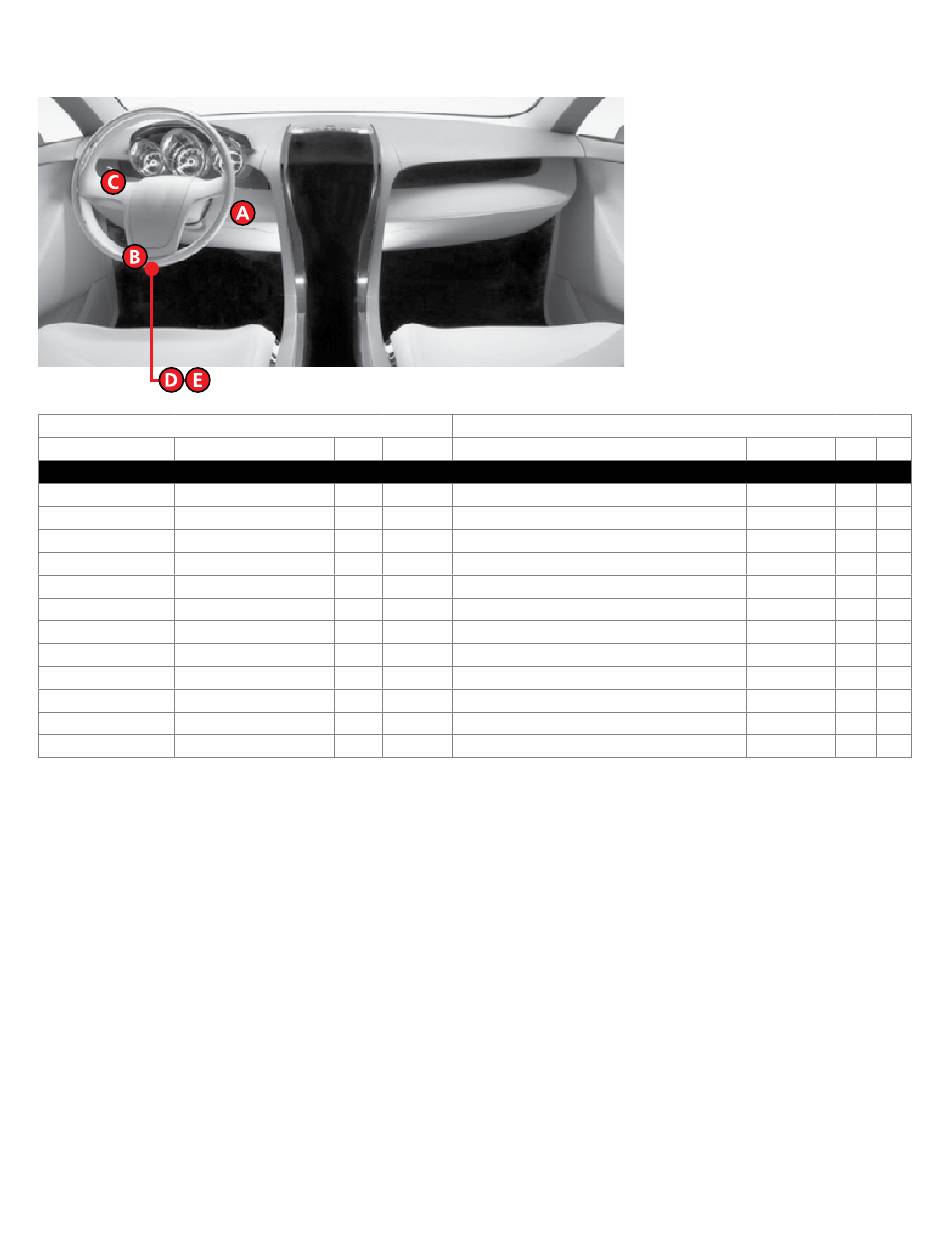

This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
Wire Information
Function Color
Volkswagen Jetta 2011-2014
Starter Red/Black
Ignition Black/Violet
Accessory Black/Red
HS CAN High Orange/Black
HS CAN Low Orange/Brown
Parking Light Gray/Red
FT CAN High Orange/Green
FT CAN Low Orange/Brown
12V Red/White or Red/Yellow
Brake Black/Red
Doorlocks [4] Blue/Red
Trunk Release [4] Violet
15
Pin Polarity Location
4 (+) Ignition switch.
8 (+) Ignition switch.
3 (+) Ignition switch.
6 Data OBDII.
14 Data OBDII.
14 (+) Headlight switch.
20 Data VESCM connector B, under drivers dash.
21 Data VESCM connector B, under drivers dash.
68 (+) VESCM connector A, under drivers dash.
39 (+) VESCM connector A, under drivers dash.
24 MUX VESCM connector A, under drivers dash.
23 (-) VESCM connector A, under drivers dash.
Connector Information
Color
Black
Black
Black
Violet/Black
Violet/Black
Black
White
White
Black
Black
Black
Black
© 2017-11-02 Directed. All rights reserved.
Pins Ref.
10 A
10 A
10 A
16 B
16 B
17 C
73 D
73 D
73 E
73 E
73 E
73 E
DS4+ VW10
