1.3.8 Control Terminals

IP20 200–240 V 0.34–15 hp [0.25–11 kW] and IP20 380–480
V 0.5–30 hp [0.37–22 kW]:

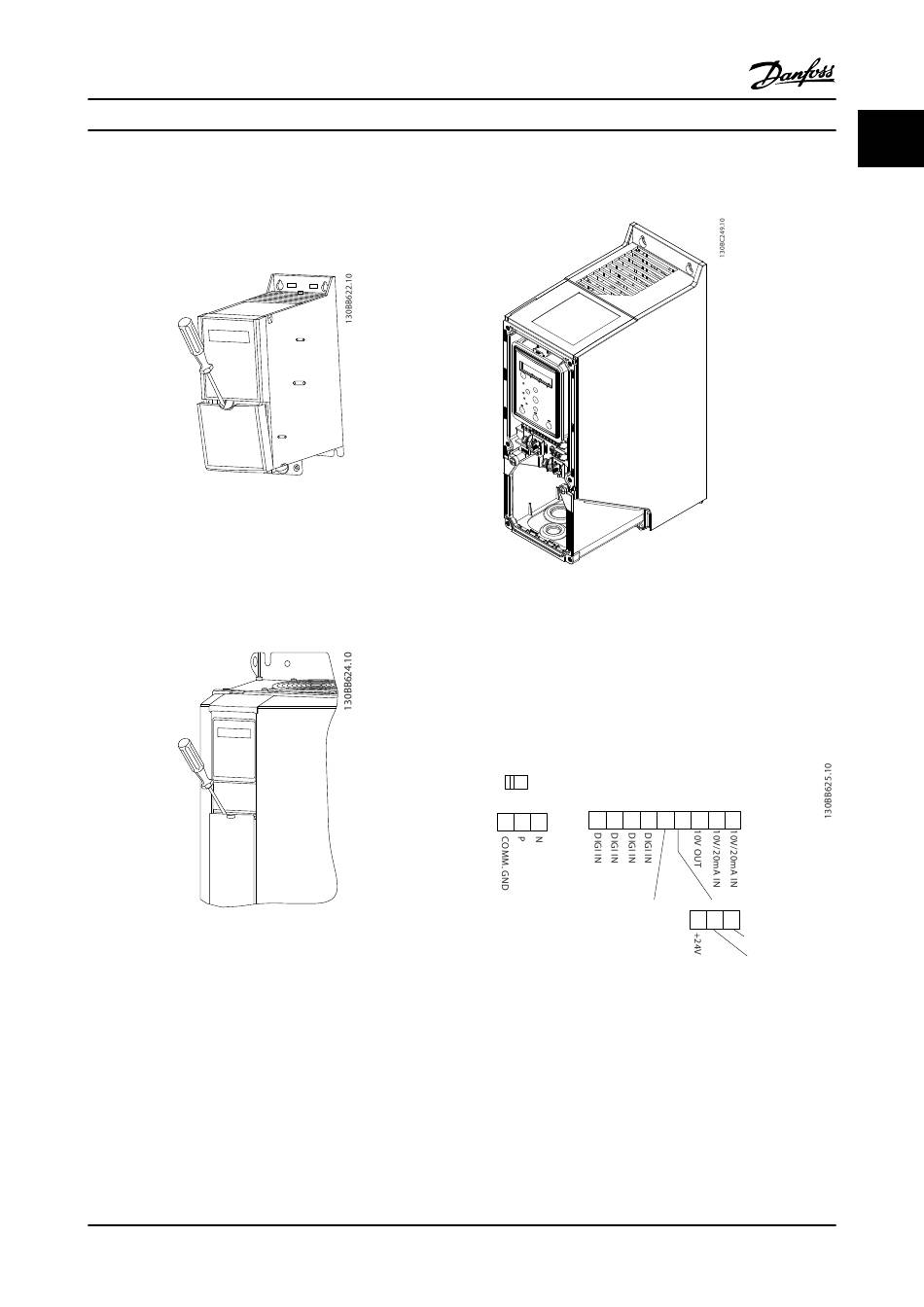

Figure 1.21 Location of Control Terminals
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
IP20 380–480V 40–125 hp [30–90kW].
Figure 1.22
1. Place a screwdriver behind the terminal cover to
activate snap.
2. Tilt the screwdriver outwards to open the cover.
Digital input 18, 19 and 27 mode is set in 5-00 Digital Input
Mode (PNP is default value) and digital input 29 mode is
set in 5-03 Digital Input 29 Mode (PNP is default value).
VLT HVAC Basic Drive Quick Guide
IP54 400 V 1–10 hp [0.75–7.5 kW]
Figure 1.23
Control terminals:
Figure 1.24 shows all control terminals of the Adjustable
frequency drive. Applying Start (term. 18), connection
between terminal 12-27 and an analog reference (term. 53
or 54 and 55) make the Adjustable frequency drive run.
OFF
Figure 1.24 Control Terminals
®
MG18A322 - VLT is a registered Danfoss trademark
1. Remove the front cover.
BUS TER.
ON
61 68 69 18 19 27 29 42 45 50 53 54
0/4-20mA A OUT / DIG OUT 0/4-20mA A OUT / DIG OUT
12 20 55
GND
GND
1-17
1 1
