1.4 Programming

1.4.1 Programming with the Local Control
Panel (LCP)
NOTE!
The Adjustable frequency drive can also be programmed
from a PC via RS485 com-port by installing the MCT-10
Set-up Software. This software can either be ordered using
code number 130B1000 or downloaded from the Danfoss
website: www.danfoss.com/BusinessAreas/DrivesSolutions/
softwaredownload
1.4.2 Local Control Panel (LCP)
The following instructions are valid for the FC101 LCP. The
LCP is divided into four functional sections.
A. Alphanumeric display
B. Menu key
C. Navigation keys and LEDs
D. Operation keys and LEDs
1
2
1-20 Motor Power
3
A [5] 0.37kW - 0.5HP
Setup 1
4
Status
B Menu
6
Com.
C
10
On
7
Warn.
8
Alarm
9
Hand
D
On
13

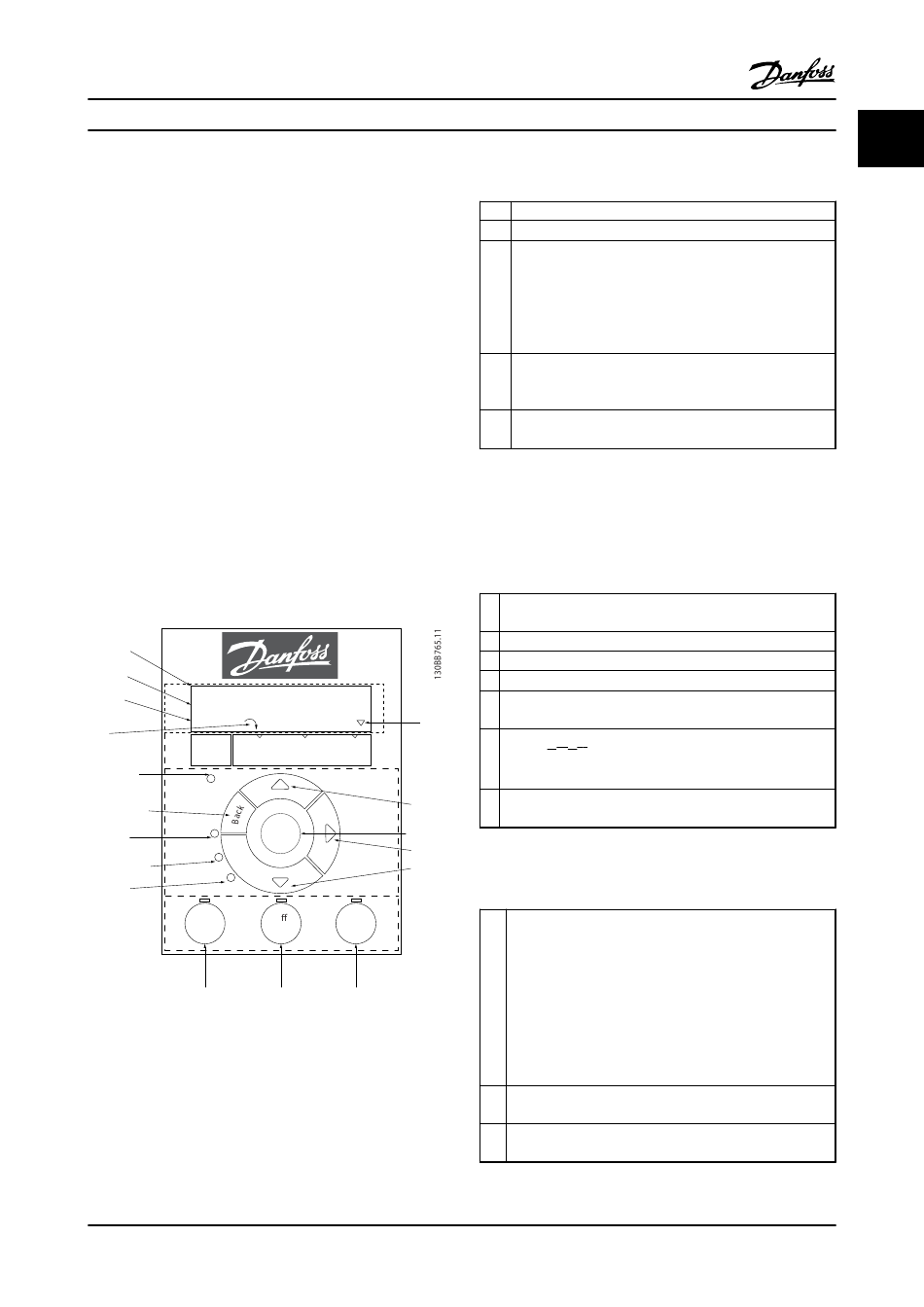

Figure 1.26
A. Alpha Numeric Display
The LCD display is back-lit with 2 alpha-numeric lines. All
data is displayed on the LCP.
VLT HVAC Basic Drive Quick Guide
5
Main
Quick
Menu
Menu
11
12
OK
11
11
O Auto
Reset On
14 15
®
MG18A322 - VLT is a registered Danfoss trademark
Certain information can be read from the display.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both the active and edit set-
up, only that set-up number is shown (factory setting).
When the active and edit set-up differ, both numbers are
shown in the display (Set-up 12). The flashing number
indicates the edit set-up.
4 Motor direction is shown to the bottom left of the display
– indicated by a small arrow pointing either clockwise or
counter-clockwise.
5 The triangle indicates if the LCP is in status quick menu or
main menu.
Table 1.20
B. Menu Key
Use the menu key to select between status quick menu or
main menu.
C. Navigation keys and LEDs
6 Com led: Flashes when bus communication is communi-
cating.
7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
navigation structure
▲ ▼
11 Arrows [
] [ ]: For navigating between parameter groups,
parameters and within parameters. Can also be used for
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
Table 1.21
D. Operation keys and LEDs
13 [Hand On]: Starts the motor and enables control of the
Adjustable frequency drive via the LCP.
NOTE!
Please note that terminal 27 Digital Input
(5-12 Terminal 27 Digital Input) has coast inverse as
default setting. This means that [Hand On] will not
start the motor if there is no 24 V to terminal 27, so
please connect terminal 12 to terminal 27.
14 [Off/Reset]: Stops the motor (off). If in alarm mode the
alarm will be reset.
15 [Auto On]: Adjustable frequency drive is controlled either
via control terminals or serial communication.
Table 1.22
