Danfoss VLT FC 101 Quick Manual page 19

Quick Guide
1 1
PLC
Line power supply
L1
L2
L3
PE
Reinforced protective ground

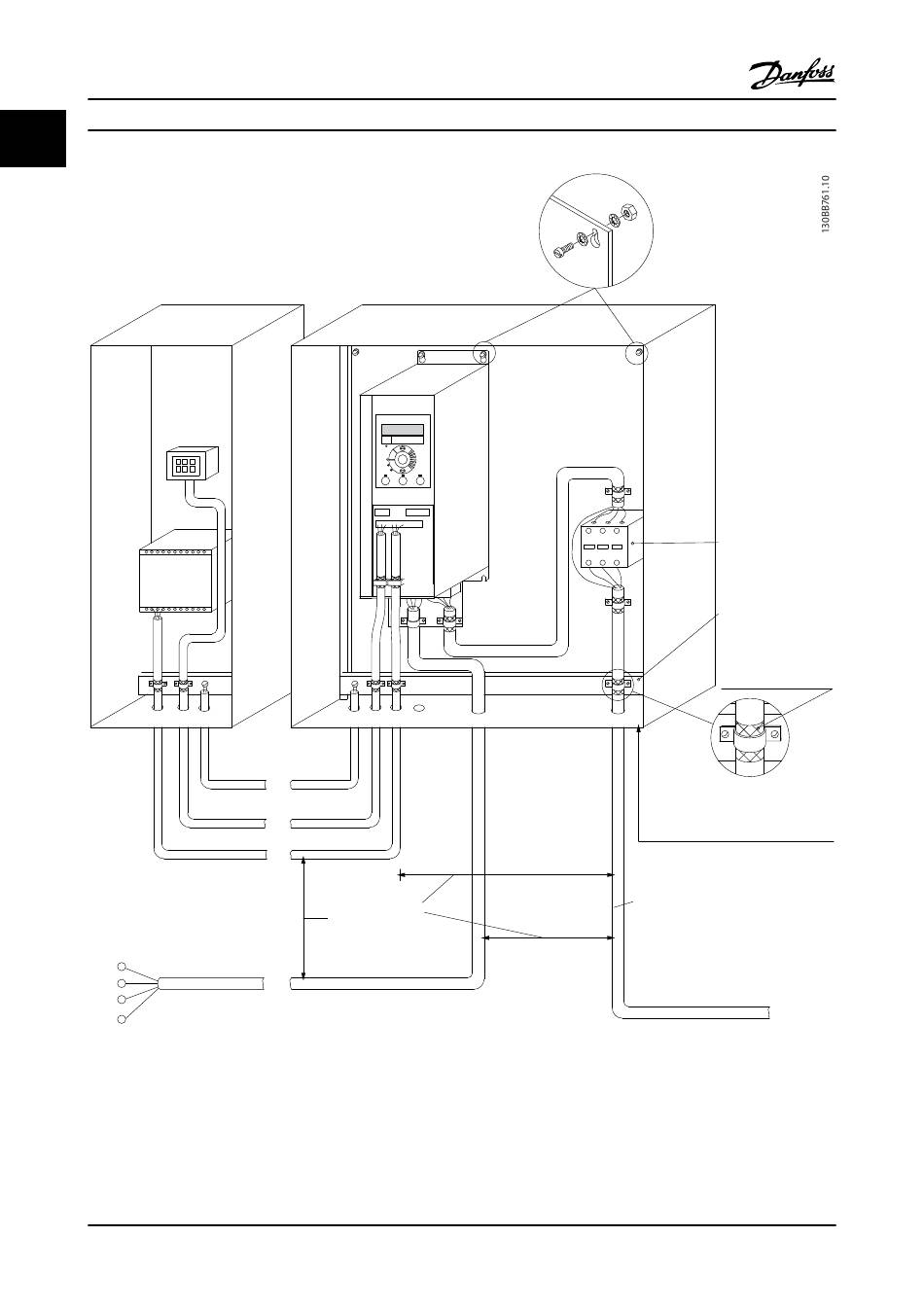

Figure 1.20 EMC-compliant Electrical Installation
For North America, use metal conduits instead of shielded cables.
1-16
PLC etc.
Min. 0.0248 in 2 [16 mm 2 ]
Equalizing cable
Control cables
Min. 7.9 in [200 mm]
between control
cable, line cable
and between line power
motor cable
MG18A322 - VLT
VLT HVAC Basic Drive Quick Guide
Panel
®
is a registered Danfoss trademark
Output con-
tactor, etc.
Grounding rail
Cable insula-
tion stripped
All cable entries in
one side of panel
Motor cable
Motor, 3 phases and
Protective ground
