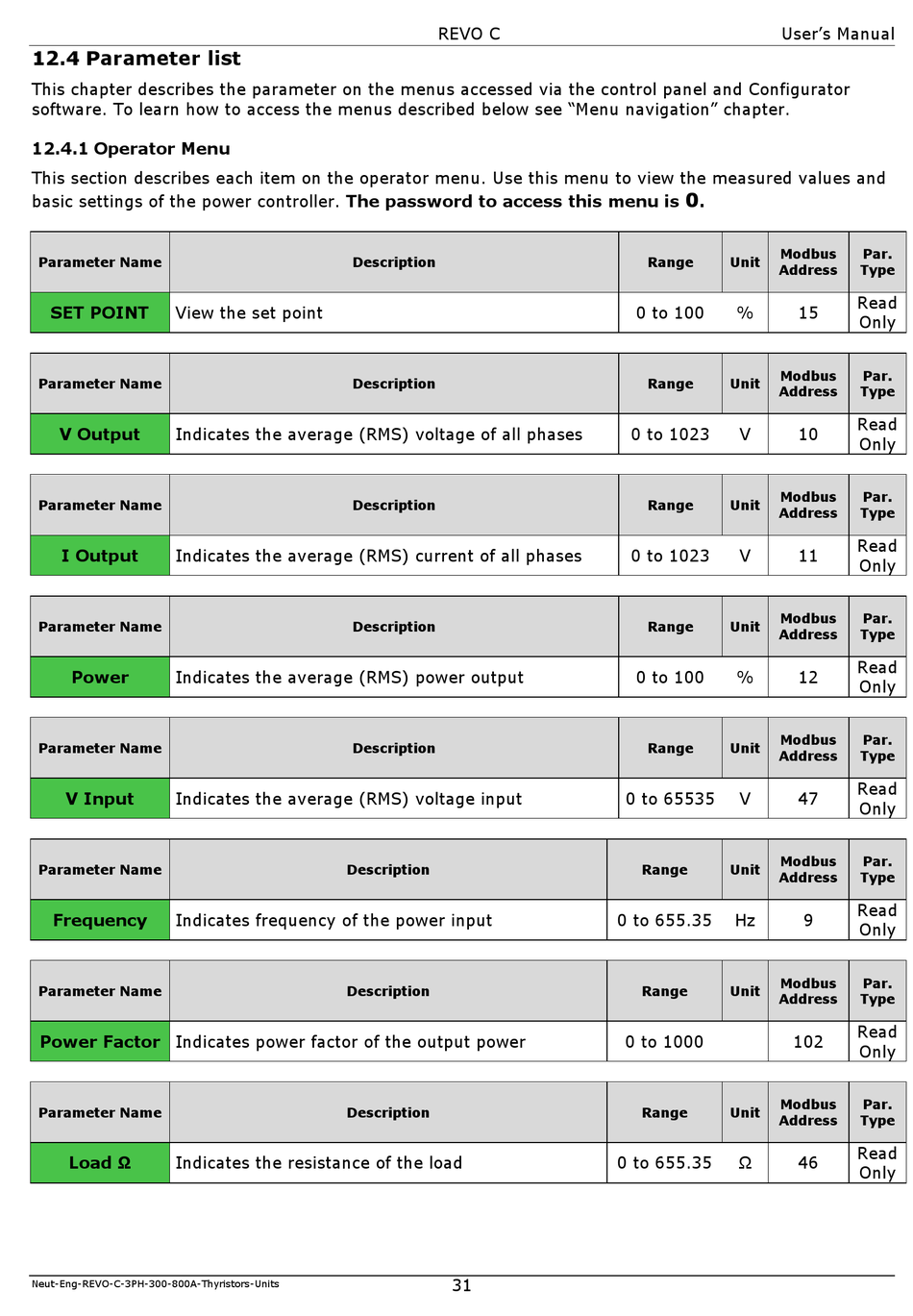

12.4 Parameter list

This chapter describes the parameter on the menus accessed via the control panel and Configurator
software. To learn how to access the menus described below see "Menu navigation" chapter.

12.4.1 Operator Menu

This section describes each item on the operator menu. Use this menu to view the measured values and
basic settings of the power controller. The password to access this menu is
Parameter Name

SET POINT View the set point
Parameter Name

V Output Indicates the average (RMS) voltage of all phases
Parameter Name

I Output Indicates the average (RMS) current of all phases
Parameter Name

Power Indicates the average (RMS) power output
Parameter Name

V Input Indicates the average (RMS) voltage input
Parameter Name

Frequency Indicates frequency of the power input
Parameter Name

Power Factor Indicates power factor of the output power
Parameter Name

Load Ω Indicates the resistance of the load
