5 Software Configurator

Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
REVO C
Thyristor configurator software
is free and is possible download it from our site.
If the Order Code is in line with requirement,
then unit has been already configured in Factory
and it's ready to use.
You need the software only to modify the ordered
configuration. Anyway we suggest to check the
unit on the machine with the "Test unit" section.
For install the software, launch the program and
follow the instructions on the screen.

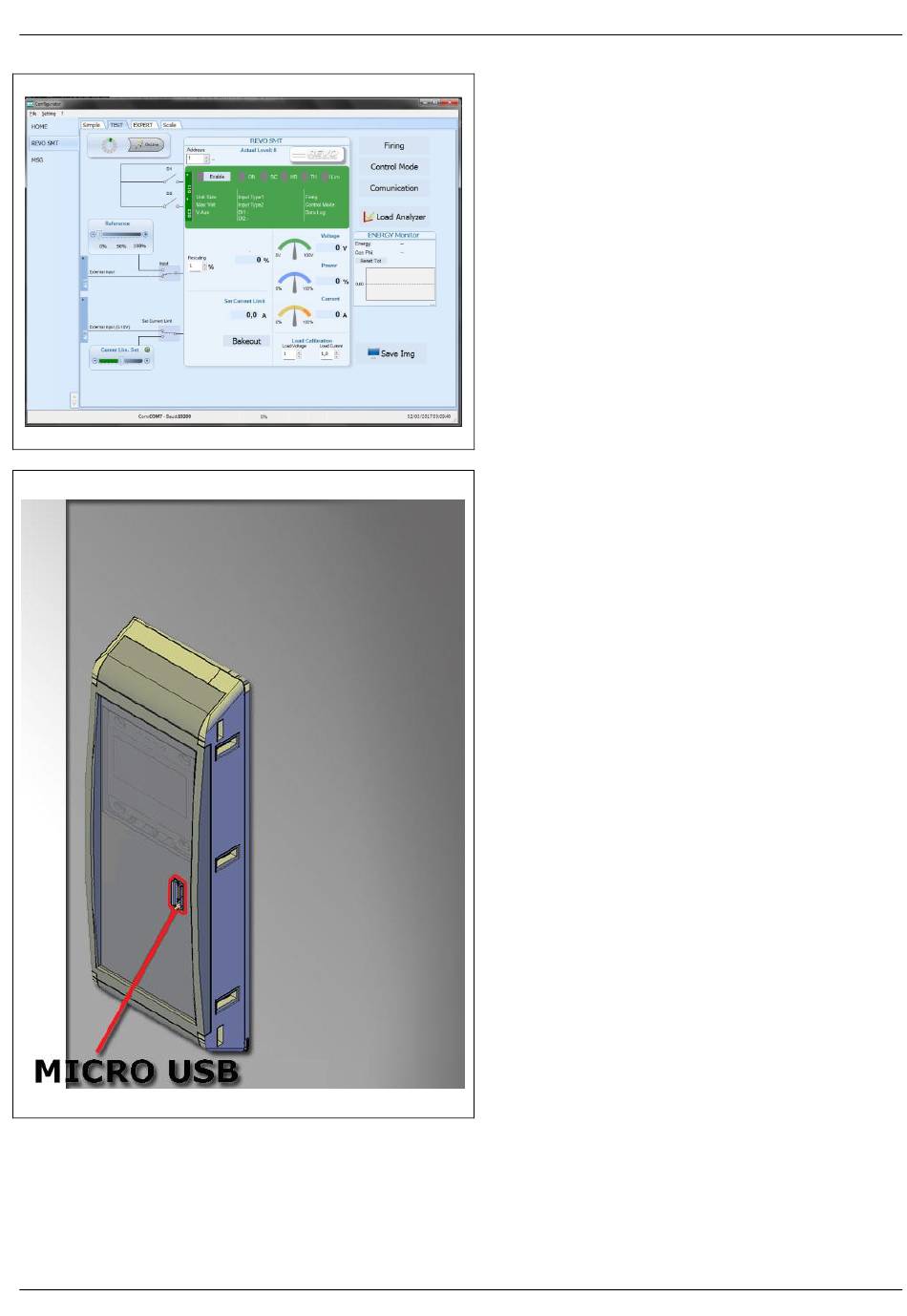

Run the software configurator and set the correct
serial port number by menu setting-serial com –
port number
To connect the unit at the PC, it's necessary use
the micro USB 2.0 Modbus RTU cable.
USB connection need a driver to work properly,
you can find it from our site.
however the configuration software installer will
intall as default the correct driver
