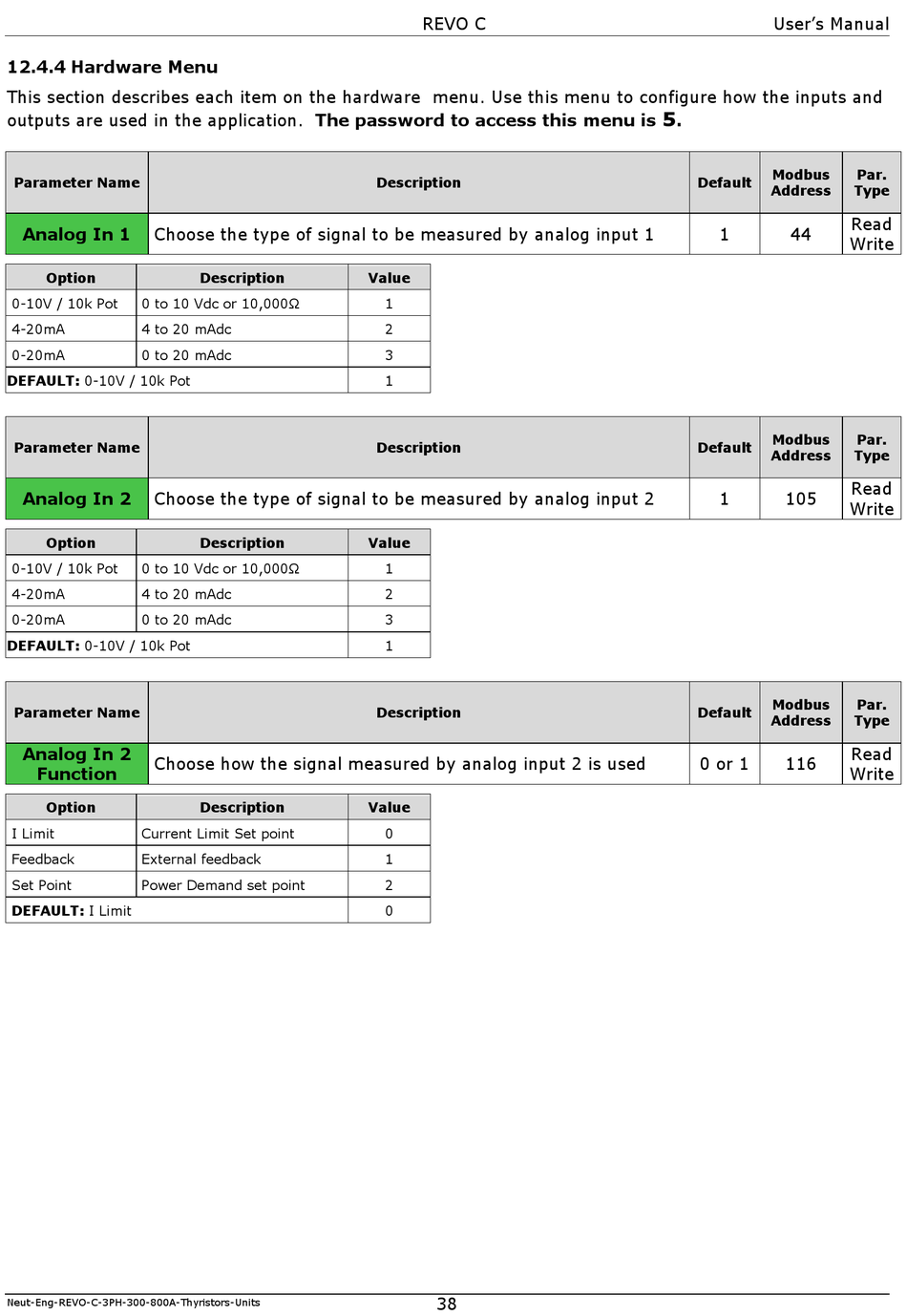

12.4.4 Hardware Menu

This section describes each item on the hardware menu. Use this menu to configure how the inputs and
outputs are used in the application. The password to access this menu is
Parameter Name

Analog In 1 Choose the type of signal to be measured by analog input 1
Option
0-10V / 10k Pot 0 to 10 Vdc or 10,000Ω
4-20mA 4 to 20 mAdc
0-20mA 0 to 20 mAdc
DEFAULT: 0-10V / 10k Pot
Parameter Name

Analog In 2 Choose the type of signal to be measured by analog input 2
Option
0-10V / 10k Pot 0 to 10 Vdc or 10,000Ω
4-20mA 4 to 20 mAdc
0-20mA 0 to 20 mAdc
DEFAULT: 0-10V / 10k Pot
Parameter Name
Analog In 2
Choose how the signal measured by analog input 2 is used

Function
Option
I Limit Current Limit Set point
Feedback External feedback
Set Point Power Demand set point
DEFAULT: I Limit
Neut-Eng-REVO-C-3PH-300-800A-Thyristors-Units
Description Value
Description Value
Description Value
REVO C
Description
1
2
3
1
Description
1
2
3
1
Description
0
1
2
0
38
User's Manual
5
.
Modbus
Default
Address
1 44
Modbus
Default
Address
1 105
Modbus
Default
Address
0 or 1 116
Par.
Type
Read
Write
Par.
Type
Read
Write
Par.
Type
Read
Write
